Limited-time deal
-17%
$17,566.36
List Price: $21,079.63
Designed for residential homes, with scalable system sizes to match different energy needs and roof layouts.
EP Cube 16.6 kWh Home Battery System
An all-in-one residential energy storage system that combines a 7.6 kW hybrid inverter with higher modular battery capacity in a single, expandable platform.
An all-in-one residential energy storage system that combines a 7.6 kW hybrid inverter with higher modular battery capacity in a single, expandable platform.
- System type: Hybrid inverter & battery system
- Storage capacity: 16.6 kWh (5 modular batteries)
- Inverter: Integrated 7.6 kW hybrid inverter
- Battery chemistry: Lithium Iron Phosphate (LiFePO₄)
- Expandable design: Add battery modules as energy needs grow
- Use cases: Home battery backup, solar-ready energy storage
SKU:
EPC-BAT-166
Product Type:
Hybrid Inverter & Battery System
- Regular price
- $17,566.36
- Regular price
-
$21,079.63 - Sale price
- $17,566.36
- Unit price
- per
Subtotal:
$17,566.36
Couldn't load pickup availability
Warehouse Pick-Up Available
Our pick-up schedule is Monday to Friday from 10AM - 4PM.
Secure Transaction
Canada Wide Shipping
Products online are in stock in our warehouse
Orders generally ship out in 1-2 days.
Vendor: CDN Solar
EP Cube 16.6kWh Home Battery System – 7.6kW Inverter | Full Kit (5 Batteries)
$17,566.36
Vendor: CDN Solar
EP Cube 16.6kWh Home Battery System – 7.6kW Inverter | Full Kit (5 Batteries)
$17,566.36
Description
xMeet the EP Cube 16.6 kWh Home Battery System — a complete residential energy storage solution by Canadian Solar. This full kit combines a 7.6 kW hybrid inverter with five modular LiFePO₄ battery modules, delivering higher storage capacity in a compact, scalable platform designed for backup power and solar-ready energy storage.
EP Cube is built as an all-in-one, modular system that integrates the inverter and batteries into a single coordinated setup. With 16.6 kWh of usable storage, this configuration provides greater energy autonomy today while still allowing future expansion through additional EP Cube battery modules as household energy needs grow.
What This System Does
- Supports battery backup when installed with the appropriate electrical configuration.
- Stores energy from solar systems to increase self-consumption (solar equipment not included).
- Enables energy shifting and optimization based on utility rates and system settings.
- Allows future capacity expansion through modular battery additions.
Why EP Cube
- Integrated hybrid inverter and battery modules in a single residential energy storage system.
- Modular design that allows storage capacity to scale without replacing the core system.
- Uses lithium iron phosphate (LiFePO₄) battery chemistry for safety, stability, and long service life.
- Installer-friendly architecture designed to simplify planning, transport, and installation.
System Configuration
- Storage capacity: 16.6 kWh
- Battery modules included: 5 EP Cube battery modules
- Inverter: 7.6 kW hybrid inverter
- Battery chemistry: Lithium Iron Phosphate (LiFePO₄)
- Mounting: wall-mount or floor-mount capable (hardware included as applicable)
What’s Included

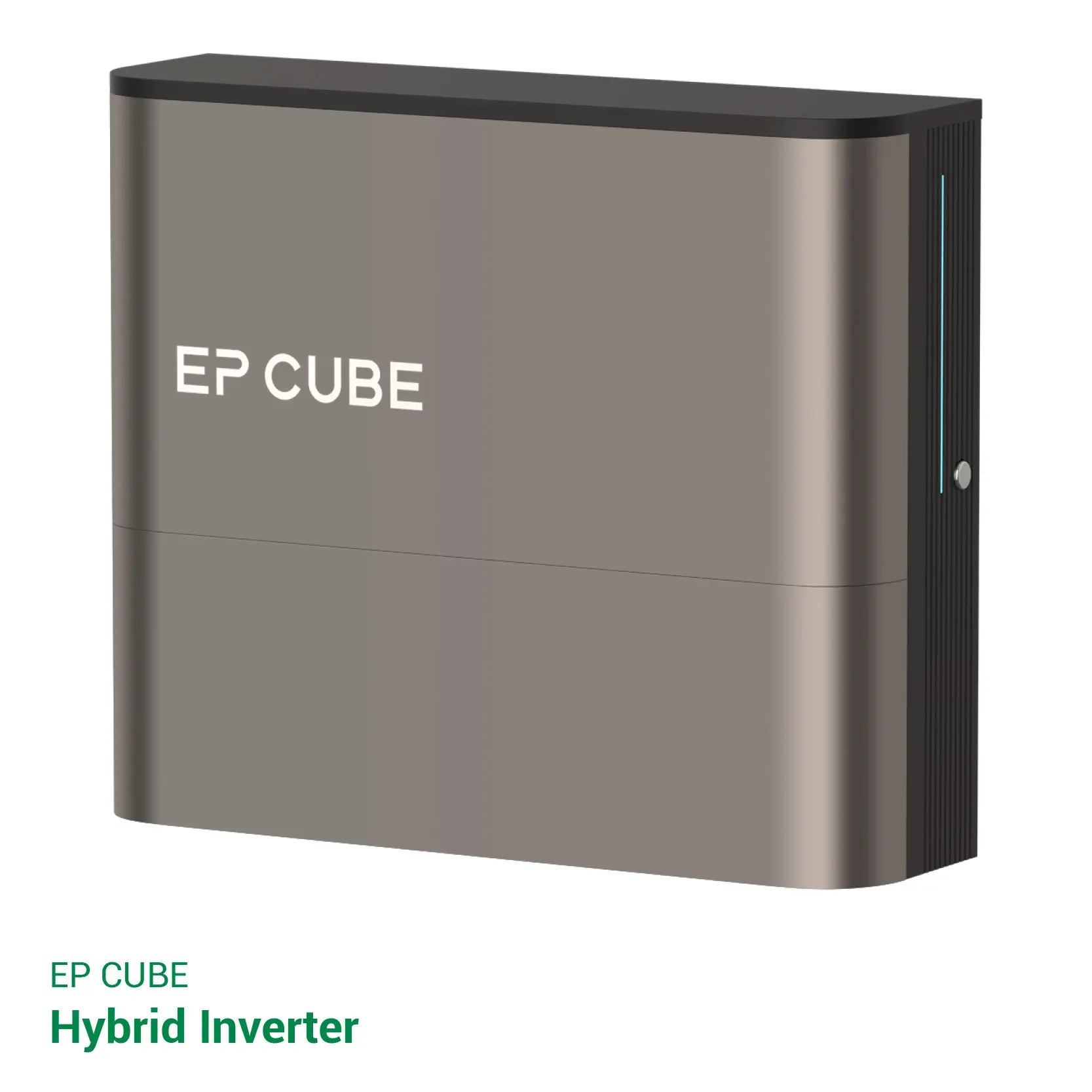

- EP Cube 7.6 kW hybrid inverter
- 5 EP Cube battery modules

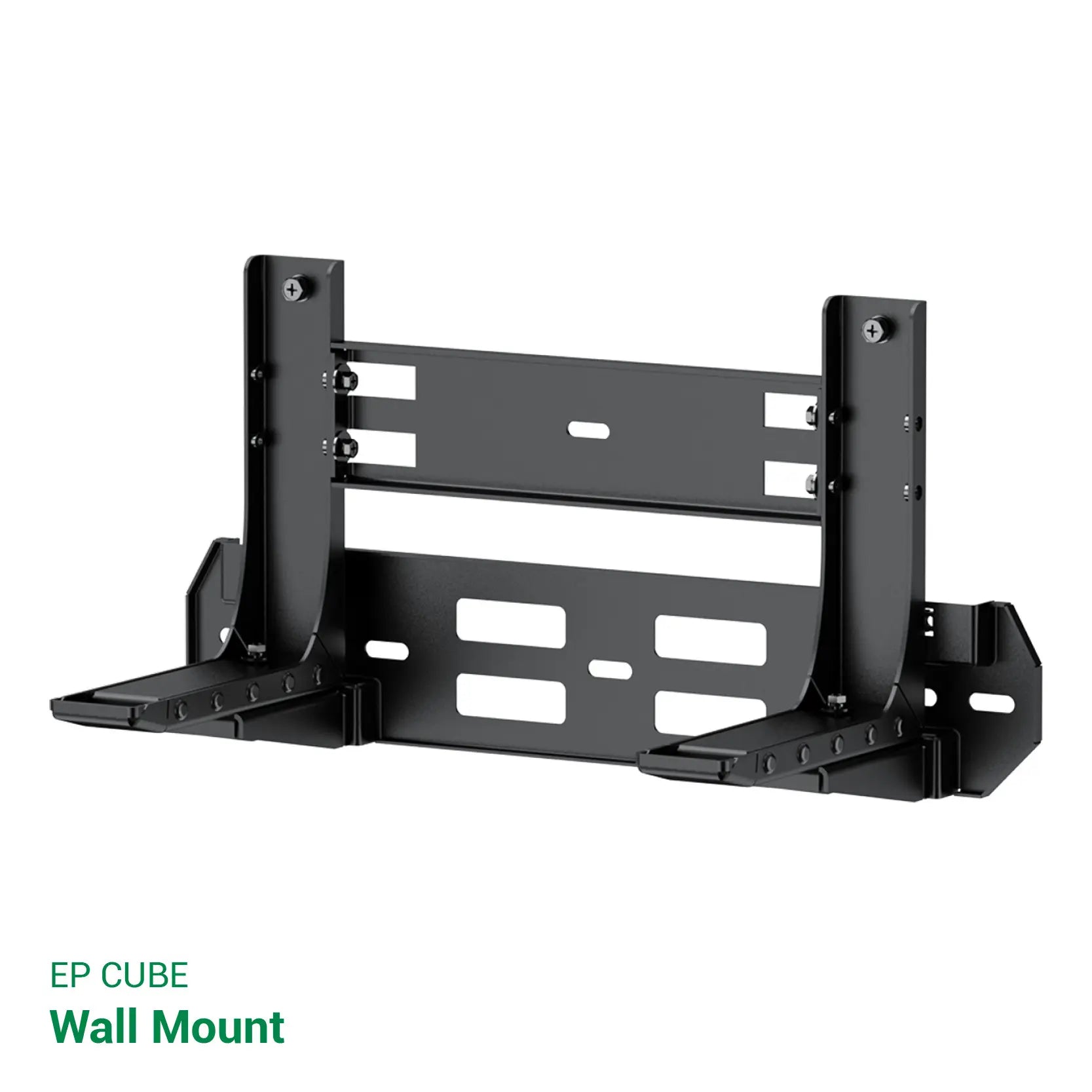

- Required mounting components based on the selected installation configuration
Canada-wide shipping available. The EP Cube 16.6 kWh system offers expanded storage capacity within Canadian Solar’s flexible, modular residential energy storage platform.
Installation Requirement Notice
The EP Cube must be installed, commissioned, and programmed by a certified solar or electrical installer.
If you do not already have an installer, CDN Solar can connect you with a qualified installer in your area after purchase.
System Components
xEP Cube 16.6 kWh Home Battery System — System Components
This system includes:
| Description | Quantity |
|---|---|
| EP Cube Hybrid Inverter (7.6 kW) | 1 |
| EP Cube Battery Module (3.3 kWh each) | 5 |
| EP Cube Base (part of system configuration) | 1 |
Physical Specifications (Installed System)
- Total energy capacity: 16.6 kWh
- System dimensions: 23.62" × 64.96" × 9.25" (60 × 165 × 23.5 cm)
- Total system weight: 418.9 lb (190 kg)
Component Weights
- Battery module: 70 lb (32 kg) each
- Hybrid inverter: 77 lb (35 kg)

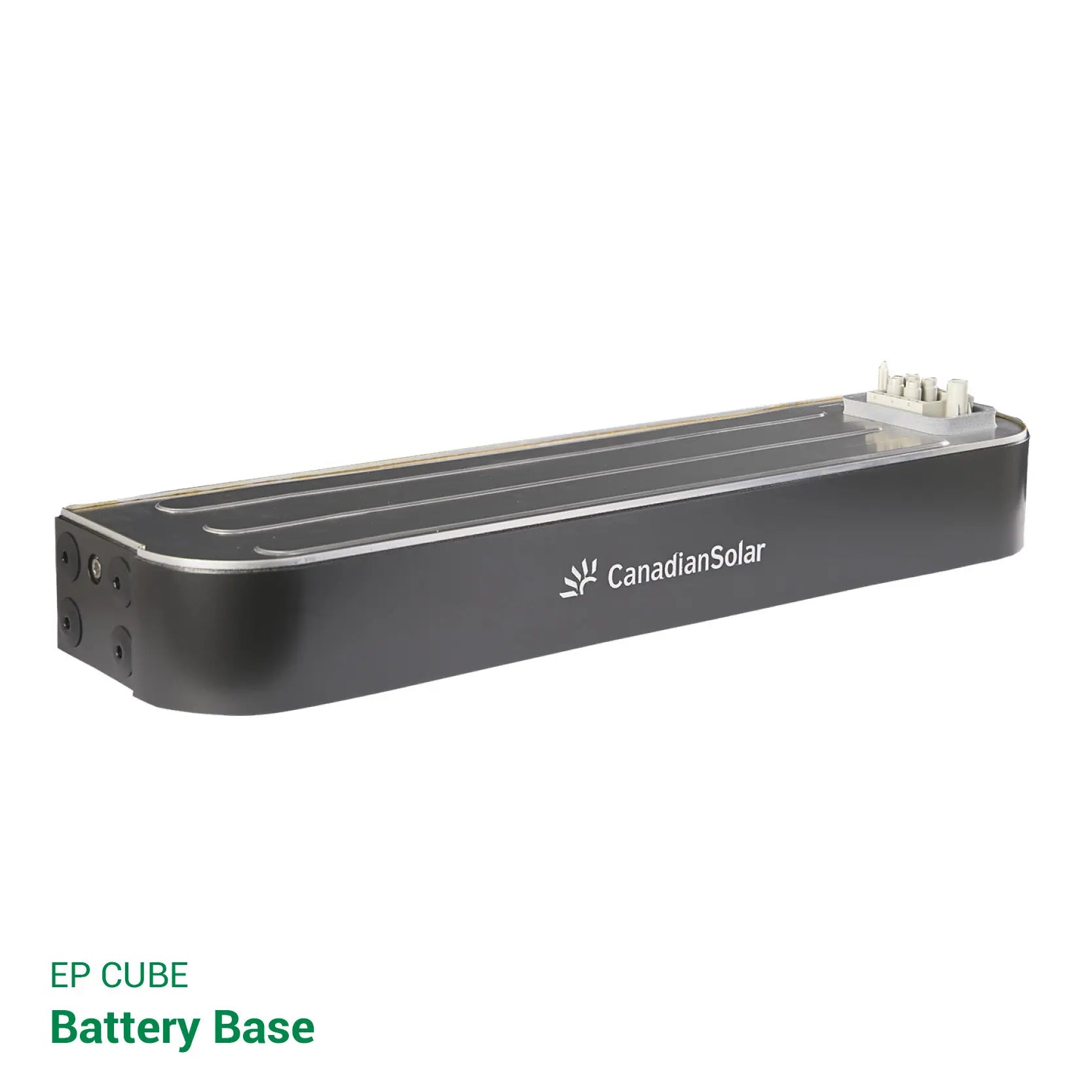

- Base: 5.5 lb (2.5 kg)
Additional Details
- System type: All-in-one residential energy storage system with integrated hybrid inverter
- Mounting options: Floor mount or wall mount
- Enclosure rating: NEMA 4X (indoor / outdoor rated)
- Scalability: Expandable with additional EP Cube battery modules
Documentation
xDocumentation
| Datasheet | EP Cube Residential Energy Storage System – Datasheet (NA) |
| Product Catalog | EP Cube Product Catalog |
EP Cube™ Residential Energy Storage System

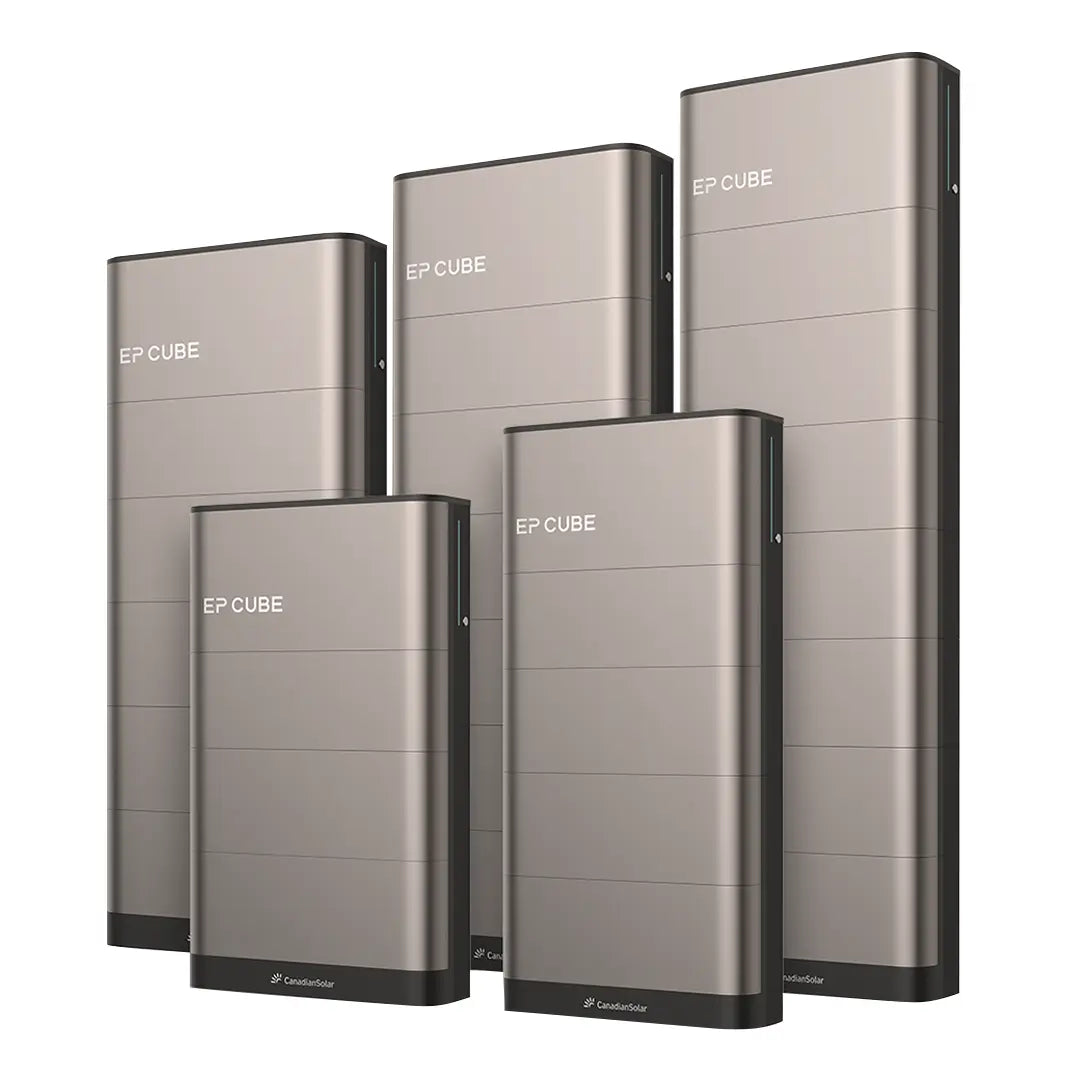

- Flexible & Modular: EP Cube™ is a modular residential energy storage system with capacity options ranging from 9.9 kWh to 19.9 kWh, designed for easy transport and installation.
- Safe & Reliable: Built with lithium iron phosphate (LiFePO₄) batteries and a NEMA 4X enclosure, meeting recognized safety and performance standards.
- All-in-One Design: Integrated hybrid inverter and battery storage help reduce installation time and overall system complexity.
- Backup Power Capable: Designed to support automated power supply during grid outages when installed and configured accordingly.
- Solar-Ready & Intelligent: Compatible with existing or new PV systems and supports real-time monitoring of energy generation, storage, and consumption.
EP Cube 16.6kWh (7.6kW) FAQ
The Canadian Solar EP Cube is a modular residential energy storage system that combines a 7.6kW hybrid inverter with stackable battery modules for backup power and energy management.
The 16.6kWh configuration offers higher energy storage capacity while maintaining the same compact, all-in-one EP Cube platform.
This kit is supplied as a complete EP Cube system. It typically includes:
- 1 × EP Cube 7.6kW hybrid inverter
- 5 × EP Cube battery modules (total 16.6kWh)
- EP Cube base and mounting components
- Core system accessories required to assemble the EP Cube stack
Note: Exact contents may vary by package or revision. Refer to the “System Components” section for final confirmation.
EP Cube is a hybrid energy storage system designed to operate with the grid and can support backup power during outages when installed and configured for backup operation.
It is not a solar panel kit. EP Cube provides the inverter and battery storage that can work with existing or new solar systems depending on system design.
Yes. EP Cube is solar-ready and compatible with PV systems (existing or newly installed), subject to final system design and local electrical code requirements.
Yes. EP Cube is modular and expandable. Additional battery modules can be added within supported system limits without replacing the inverter or base system.
EP Cube uses lithium iron phosphate (LiFePO₄) batteries, known for safety, stability, and long cycle life.
EP Cube features a NEMA 4X enclosure, designed to help protect the system from environmental exposure.
Final installation location must follow manufacturer instructions and local electrical code.

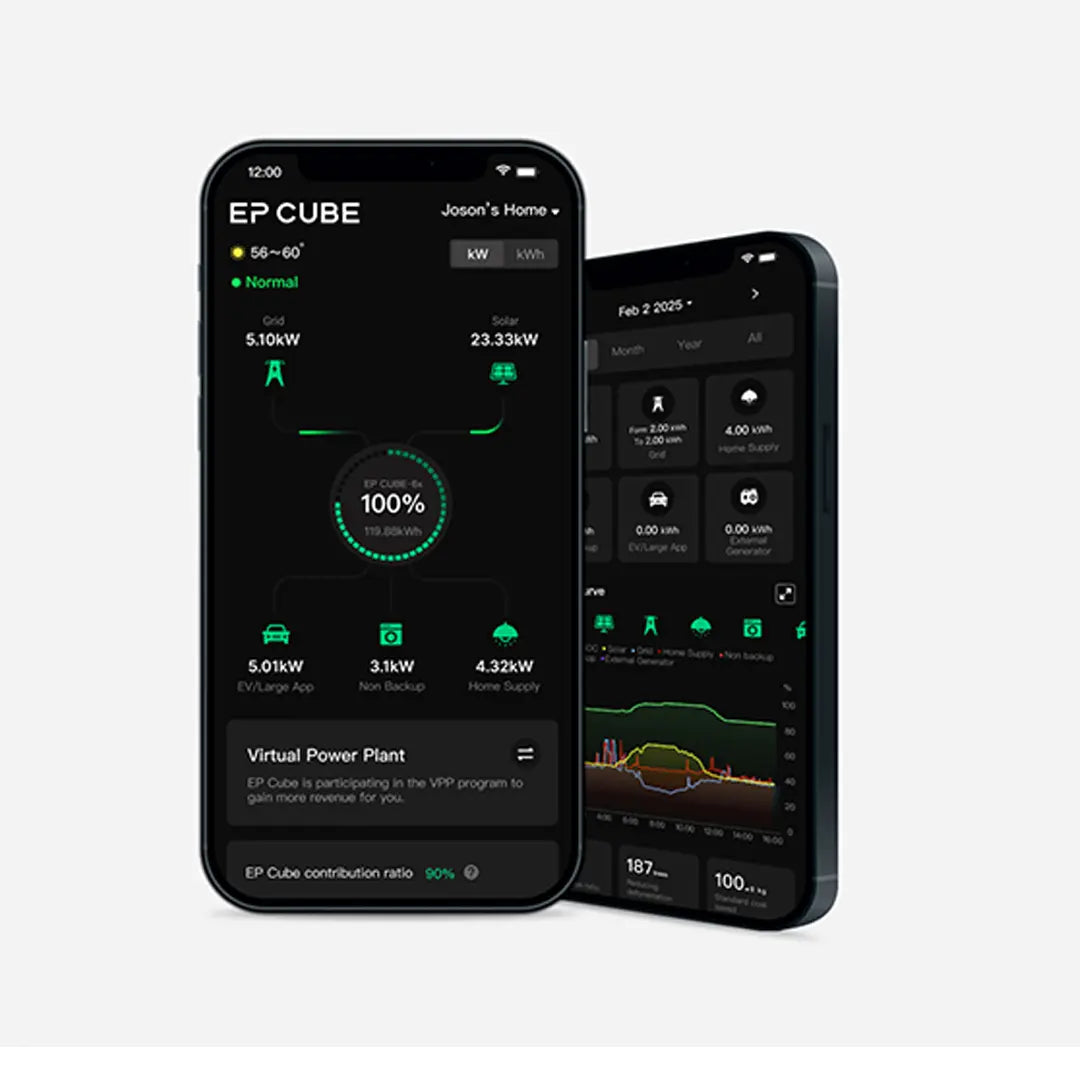

EP Cube supports system monitoring for tracking generation, storage, and consumption, and supports firmware updates (OTA) depending on configuration.
EP Cube can be designed to integrate with a generator for extended outages, depending on system design and installation.
EP Cube requires professional electrical installation. Final wiring, permits, inspections, and configuration must be completed by a licensed electrician or qualified installer.
Product performance and compatibility depend on system design, installation method, and local code. Always follow manufacturer documentation and use qualified professionals.
EP Cube 16.6kWh Home Battery System with 7.6kW Hybrid Inverter (5 Batteries)
