$22,059.00
Designed for residential homes, with scalable system sizes to match different energy needs and roof layouts.

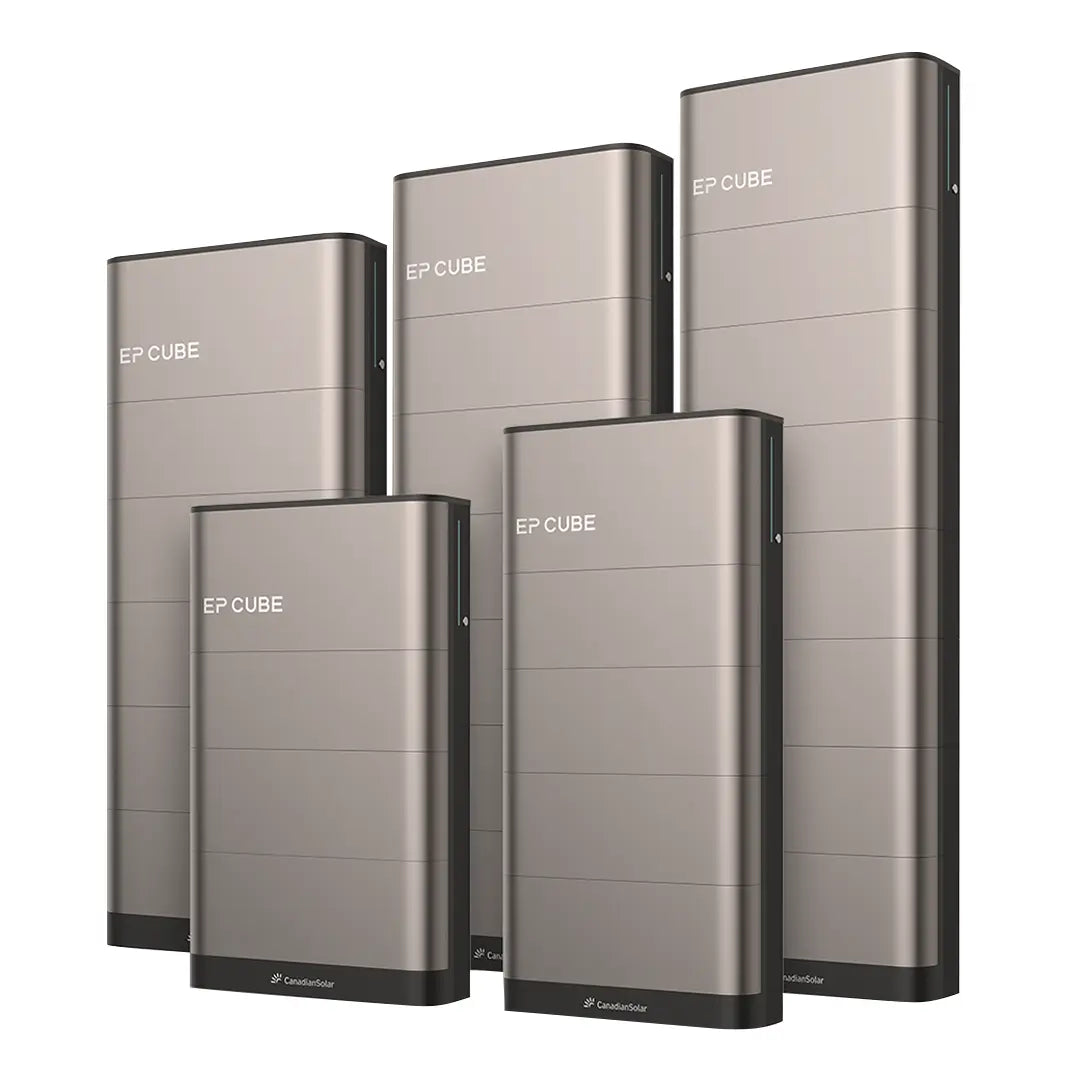

A complete residential energy storage system that combines the EP Cube Hybrid Inverter 2.0 with modular LiFePO₄ battery storage in a scalable, all-in-one platform.
- System type: Hybrid inverter & battery system
- Storage capacity: 20kWh (4 modular batteries)
- Hybrid inverter: EP Cube Hybrid Inverter 2.0
- Battery chemistry: Lithium Iron Phosphate (LiFePO₄)
- Expandable design: Add battery modules as energy needs grow
- Connectivity: Wi-Fi, Ethernet & Cellular (LTE/4G)
- Use cases: Home battery backup, solar-ready energy storage, energy shifting
SKU:
IN9080
Product Type:
Hybrid Inverter & Battery System
- Regular price
- $22,059.00
- Regular price
-
- Sale price
- $22,059.00
- Unit price
- per
Subtotal:
$22,059.00
Couldn't load pickup availability
Warehouse Pick-Up Available
Our pick-up schedule is Monday to Friday from 10AM - 4PM.
Secure Transaction
Canada Wide Shipping
Products online are in stock in our warehouse
Orders generally ship out in 1-2 days.
Description
xMeet the EP Cube 20kWh Home Battery System 2.0 — a complete residential energy storage solution by Canadian Solar. This full kit combines the EP Cube Hybrid Inverter 2.0 with four modular 5kWh LiFePO₄ battery modules, providing a high-capacity, scalable platform for backup power and solar-ready energy storage.
EP Cube 2.0 is designed as an all-in-one modular system that integrates the hybrid inverter, smart gateway, and batteries into a single coordinated residential energy platform. Start with 20kWh today and expand later by adding additional EP Cube battery modules as your home’s energy needs grow.
What This System Does
- Provides residential battery backup capability when installed with the appropriate electrical configuration.
- Stores energy from compatible solar systems to increase energy self-consumption (solar equipment not included).
- Supports both DC and AC PV input for new or retrofit solar installations.
- Enables energy shifting and optimization based on utility rates and system settings.
- Allows future storage expansion through modular battery additions.
- Supports generator integration for extended backup during long-term outages.
Why EP Cube 2.0
- Integrated hybrid inverter and battery platform in a single residential energy storage system.
- Modular and stackable architecture designed for simplified installation and future scalability.
- Uses Lithium Iron Phosphate (LiFePO₄) battery chemistry for enhanced safety and long service life.
- Supports Wi-Fi, Ethernet, and Cellular (LTE/4G) connectivity for remote monitoring and system management.
- OTA firmware updates provide continuous functionality improvements over time.
- Designed for both new solar systems and retrofit applications.
System Configuration
- Storage capacity: 20kWh
- Battery modules included: 4 × EP Cube 5kWh Battery Pack 2.0
- Hybrid inverter included: EP Cube Hybrid Inverter 2.0
- Battery chemistry: Lithium Iron Phosphate (LiFePO₄)
- Nominal grid voltage: 208V / 240VAC
- Network connectivity: Wi-Fi, Ethernet, Cellular (LTE/4G)
- Mounting: Wall-mount or floor-mount compatible using included mounting hardware
What’s Included
- EP Cube Base 2.0
- EP Cube Smart Gateway 2.0
- EP Cube Hybrid Inverter 2.0
- 4 × EP Cube 5kWh Battery Pack 2.0
- EP Cube WiFi Dongle 2.0
- EP Cube Wall Mount Kit
Key Features
- Integrated hybrid inverter with support for DC and AC solar input
- Seamless backup transition during utility outages
- Expandable modular battery architecture
- Compatible with up to 2 × 40A Level 2 EV chargers
- UL 9540A unit-level thermal runaway tested
- NEMA 4X enclosure for residential installation environments
Canada-wide shipping available. EP Cube 2.0 delivers a flexible, expandable residential energy storage solution built on Canadian Solar’s advanced modular battery platform.
System Components
xEP Cube 20kWh Home Battery System 2.0 — System Components
This system includes:
| Description | Supplier Part Number | Quantity |
|---|---|---|
| EP Cube Base 2.0 | 85000658 | 1 |
| EP Cube Smart Gateway 2.0 | 85000690 | 1 |
| EP Cube Hybrid Inverter 2.0 | 85000655 | 1 |
| EP Cube 5kWh Battery Pack 2.0 | 85000657 | 4 |
| EP Cube WiFi Dongle 2.0 | 85000840 | 1 |
| EP Cube Wall Mount Kit | 85000695 | 1 |
Physical Specifications (Installed System)
- Total energy capacity: 20.0 kWh
- System dimensions: 23.6" × 82.9" × 8.7" (60 × 210.6 × 22 cm)
- Total system weight: 478 lbs (216.5 kg)
Component Weights
- Battery pack: 95 lbs (43 kg) each
- Hybrid inverter: 95 lbs (43 kg)
- Base: 5.5 lbs (2.5 kg)
Additional Technical Details
- System type: Integrated residential hybrid inverter & battery storage system
- Battery chemistry: Lithium Iron Phosphate (LiFePO₄)
- PV input support: Supports both DC and AC solar PV input
- Network connectivity: Wi-Fi, Ethernet & Cellular (LTE/4G)
- Mounting options: Floor mount or wall mount
- Enclosure rating: NEMA 4X
- Nominal grid voltage: 208V / 240VAC
- Frequency: 60Hz
- Scalability: Expandable modular battery architecture
- Warranty: Up to 10 years or 6,000 cycles
Documentation
xDocumentation
| Datasheet | EP Cube Residential Energy Storage System – Datasheet (NA) |
| Product Catalog | EP Cube Product Catalog |
EP Cube 2.0 — Energy Storage, Save Money
EP Cube™ 2.0 Residential Energy Storage System
- Flexible & Expandable: EP Cube™ 2.0 features a modular battery architecture that allows homeowners to expand the system as energy needs grow.
- Safe & Reliable: Built with Lithium Iron Phosphate (LiFePO₄) battery technology for long-term residential energy storage performance.
- Integrated Hybrid System: Combines hybrid inverter technology, smart gateway functionality, and battery storage into a coordinated all-in-one residential energy platform.
- Backup Power Ready: Designed to provide seamless backup transition during utility outages when installed with the appropriate electrical configuration.
- Smart Energy Management: Supports Wi-Fi, Ethernet, and Cellular connectivity for remote monitoring, energy optimization, and real-time system management.
EP Cube 20kWh Home Battery System 2.0 FAQ
The Canadian Solar EP Cube 2.0 is a modular residential energy storage system that combines a hybrid inverter, smart gateway, and LiFePO₄ battery storage into a single coordinated platform.
This 20kWh configuration includes four modular battery packs and can be expanded later with additional EP Cube battery modules.
This complete EP Cube 2.0 kit includes:
- 1 × EP Cube Hybrid Inverter 2.0
- 4 × EP Cube 5kWh Battery Pack 2.0
- 1 × EP Cube Smart Gateway 2.0
- 1 × EP Cube Base 2.0
- 1 × EP Cube WiFi Dongle 2.0
- 1 × EP Cube Wall Mount Kit
EP Cube is a hybrid residential energy storage system designed for both grid-connected operation and backup power functionality.
It can store energy from solar systems and provide backup power during outages when properly installed and configured.
Yes — EP Cube supports both DC and AC PV input, making it compatible with new or existing solar systems.
Yes — EP Cube 2.0 features a modular battery architecture that allows additional battery modules to be added as energy storage requirements increase.
EP Cube systems are expandable from 20kWh up to larger multi-battery configurations within supported system limits.
EP Cube uses Lithium Iron Phosphate (LiFePO₄) battery technology for enhanced safety, stability, and long cycle life.
EP Cube 2.0 features a NEMA 4X enclosure, designed to help protect the system in residential indoor or outdoor installation environments.
Final installation location must comply with manufacturer guidelines and local electrical code.
Yes — EP Cube supports Wi-Fi, Ethernet, and Cellular (LTE/4G) connectivity for remote monitoring and energy management through the EP Cube app.
The system also supports OTA (over-the-air) firmware updates.
Yes — EP Cube can support generator integration for extended backup operation during long-term outages when properly configured.
EP Cube requires professional electrical installation, commissioning, and programming by a qualified solar or electrical installer.
Product capabilities, backup functionality, and compatibility depend on final system design, installation method, and local electrical code requirements.
Always follow manufacturer documentation and use a licensed professional for final installation and configuration.
