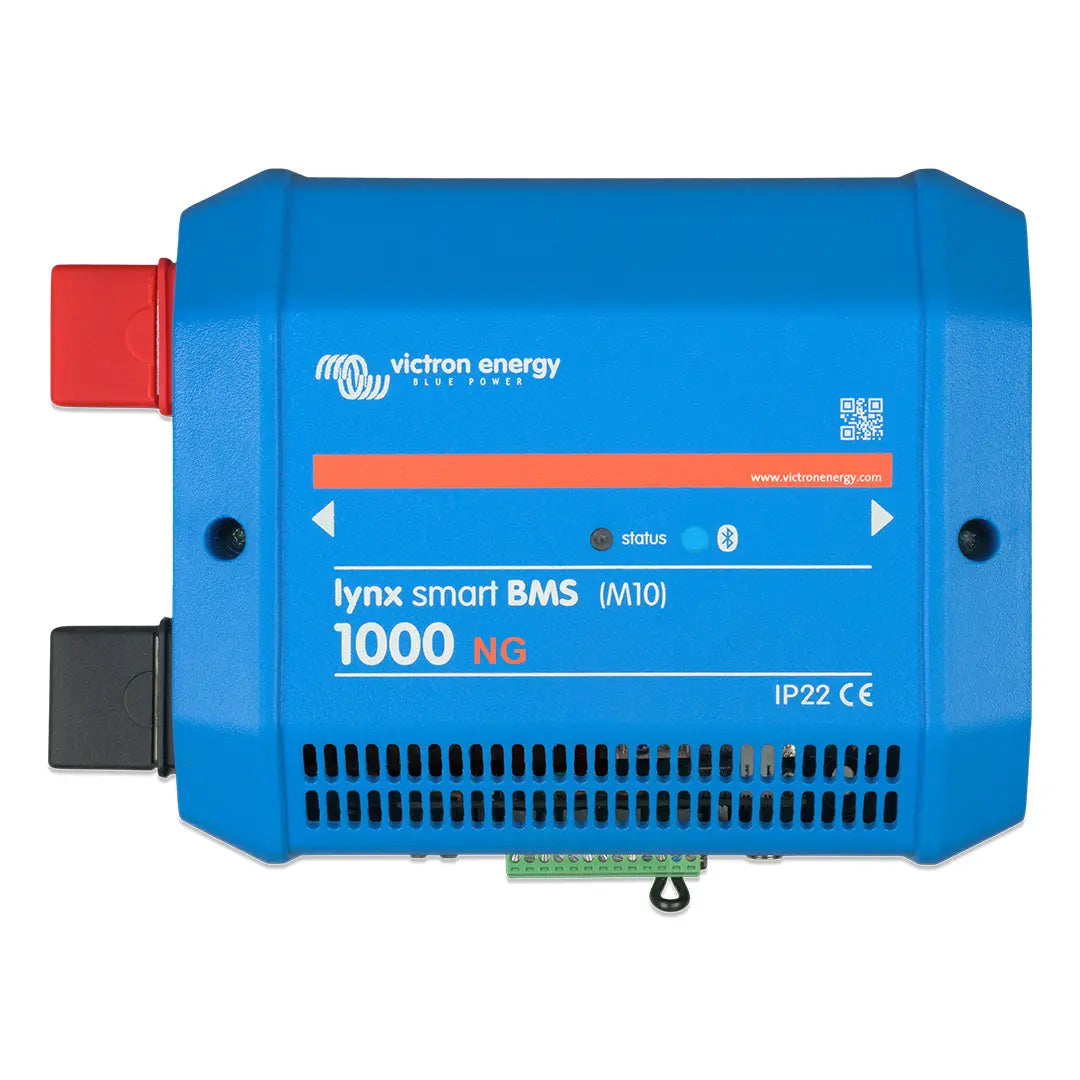

xIntroducing the Victron Energy Lynx Smart BMS 1000 NG (M10)
The Victron Energy Lynx Smart BMS 1000 NG (M10) is an advanced Battery Management System (BMS) designed for seamless integration with Victron Lithium Smart batteries. As part of the modular Lynx distribution system, it ensures reliable, efficient, and safe battery management for high-capacity energy storage solutions.
MAIN FEATURES
- Built-in 1000A contactor for enhanced safety and as a remote-controllable main switch
- Integrated pre-charge circuit to prevent high inrush currents when connecting capacitive loads
- Advanced monitoring via Bluetooth using the VictronConnect App or GX device
- Parallel redundancy support for multi-BMS installations
MONITORING AND CONNECTIVITY
- Real-time data on state of charge, voltage, current, and historical performance
- VE.Can and NMEA 2000 compatibility for seamless data integration
- Instant Readout feature for easy diagnostics without direct connection
- Programmable relay for alarms or controlling external devices like alternators
SAFETY AND PROTECTION
- Auxiliary power supply (1.1A) for critical loads even after system shutdown
- Integrated fuse monitoring for connected Lynx Distributors
- IP22 protection class for safe operation in diverse environments
- Operating temperature range: -40°C to +60°C
Optimized for Large-Scale Applications
The Lynx Smart BMS 1000 NG supports up to 20 batteries in a single system and allows for parallel installations, creating scalable and redundant battery banks ideal for extensive energy needs. This system provides enhanced control, safety, and ease of use, making it a reliable choice for demanding energy applications.
Comprehensive Monitoring and Control
Utilize the VictronConnect App or a GX device for real-time monitoring, ensuring your system remains efficient and well-maintained. The Lynx Smart BMS 1000 NG's programmable features offer flexibility to tailor system operations to specific needs.
Read the Datasheet for the Victron Energy Lynx Smart BMS 1000 NG (PDF)
Tech Specs
xVOLTAGE AND CAPACITY
- Battery voltage range: 9 – 60 VDC
- Supported system voltages: 12V, 24V, or 48V
- Maximum input voltage: 75 VDC
MAIN SAFETY CONTACTOR
- Continuous current rating: 1000A
- Peak current rating: 1200A for 5 minutes
POWER CONSUMPTION
- OFF mode: 0.3 mA for all system voltages
- Standby mode: Approximately 0.6 W (50 mA at 12V)
- ON mode: Approximately 4.2 W (350 mA at 12V)

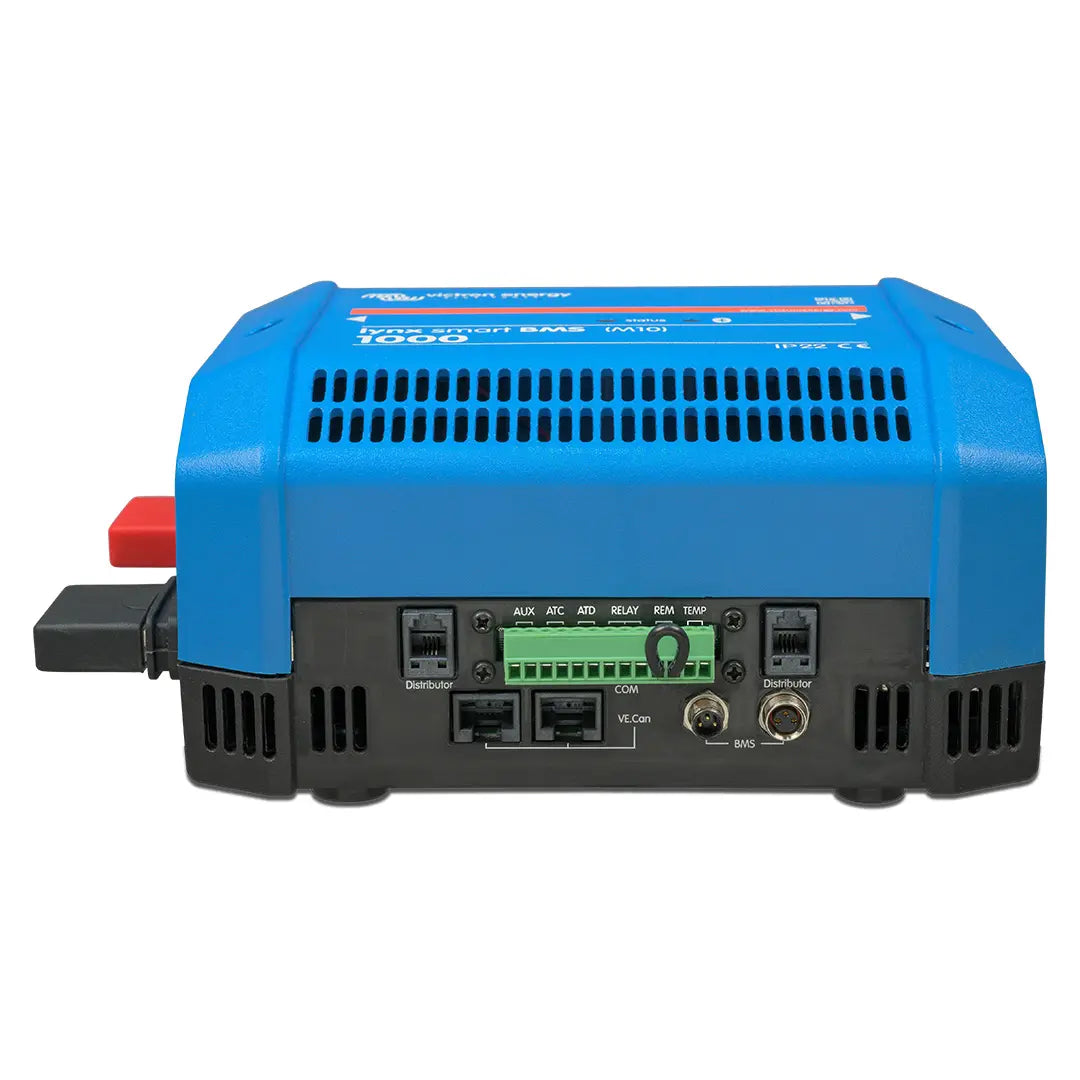

CONNECTIONS

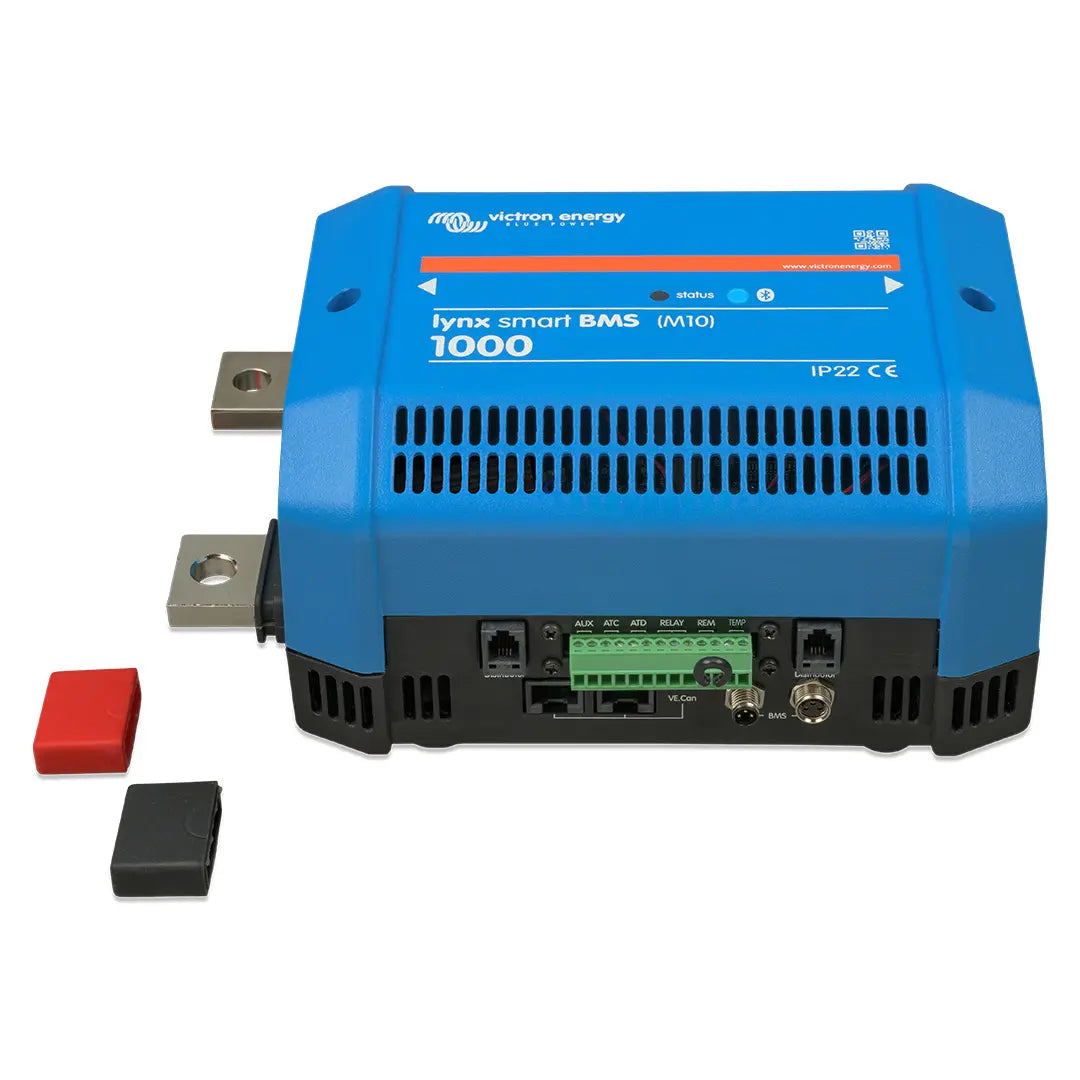

- Busbar: M10 (Torque: 33 Nm)
- VE.Can: RJ45
- I/O: Removable multi-connector with screw terminals
- Lynx Distributor fuse monitoring: RJ10
ENVIRONMENTAL
- Operating temperature range: -40°C to +60°C
- Storage temperature range: -40°C to +60°C
- Humidity (non-condensing): Max. 95%
- Protection class: IP22
PHYSICAL
- Dimensions (H x W x D): 23 x 18 x 10 cm
- Weight: 2.7 kg
OTHER FEATURES
- Built-in pre-charge circuit to prevent inrush currents
- Bluetooth connectivity for monitoring and control
- Compatible with VE.Can and NMEA 2000 communication protocols
- Integrated Lynx Distributor fuse monitoring
- AUX output maximum current rating: 1.1A
Unveiled the Victron Energy Lithium NG Battery & BMS
- Discover the key upgrades from Smart to NG series.
- Experience seamless Bluetooth control and effortless setup.
Key Features
Monitoring, configuration and control
Battery Monitoring Made Easy with VictronConnect app
- • Battery charger
- • Battery status
- • Battery protection
- • Battery monitoring via local display and via the VictronConnect app
Monitor Performance
Bluetooth Connectivity
Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.
Lynx Smart BMS 1000 NG (M10) FAQ
The Lynx Smart BMS 1000 NG has a continuous current rating of 1000A and a peak current rating of 1200A for 5 minutes.
This BMS supports 12V, 24V, and 48V system voltages, allowing for flexible integration into various energy storage setups.
Monitoring and control are possible via Bluetooth using the VictronConnect App, as well as through VE.Can integration for a GX device like the Cerbo GX.
The unit has a protection class rating of IP22, making it suitable for indoor use with basic protection against dust and water.
The Lynx Smart BMS 1000 NG measures 23 x 18 x 10 cm (9.1 x 7.1 x 3.9 in) and weighs 2.7 kg (5.95 lbs).
Yes, it includes a built-in pre-charge circuit to prevent high inrush currents when connecting capacitive loads like inverters.
Yes, up to 5 Lynx Smart BMS units can be connected in parallel for redundancy, each managing its battery bank within the system.
