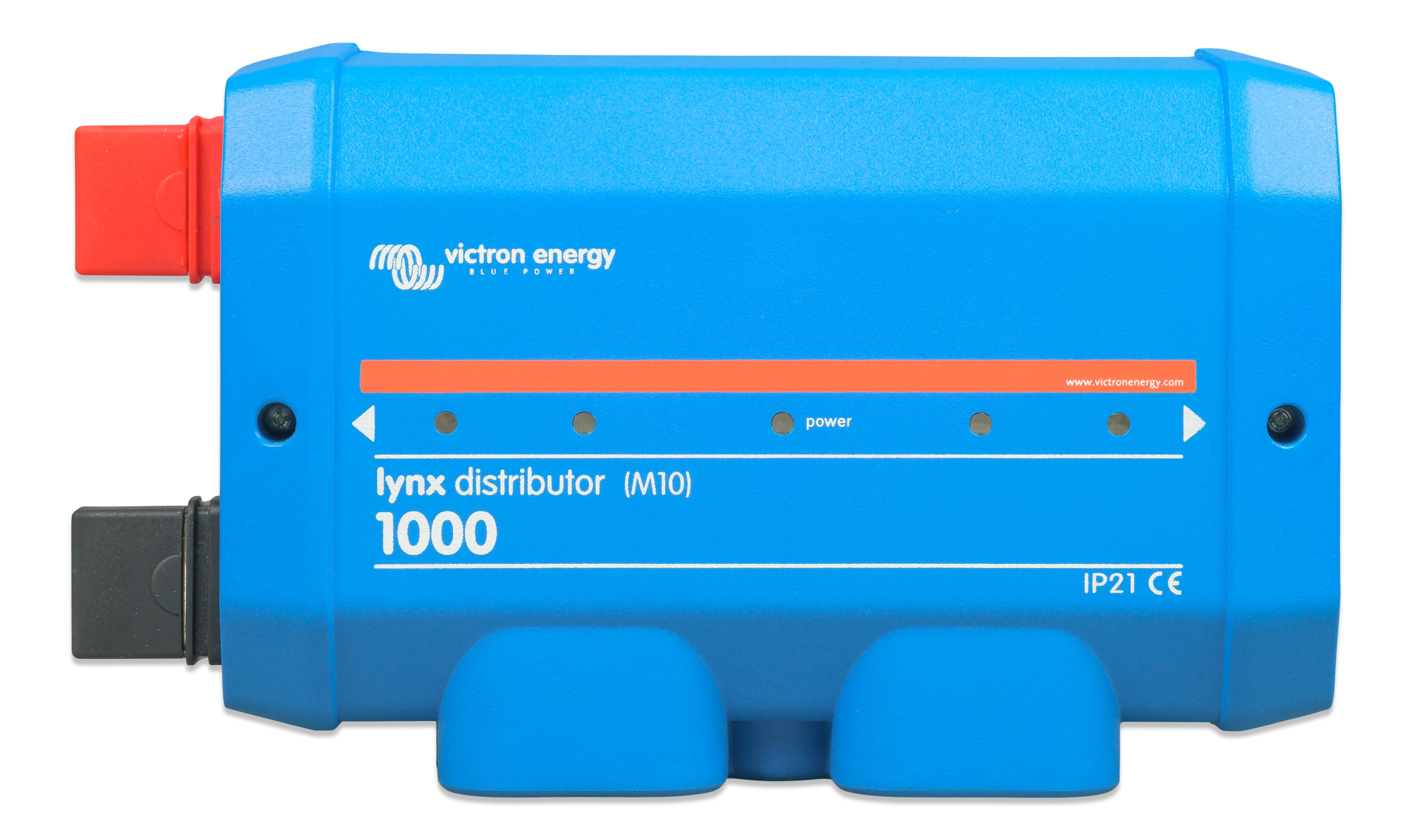

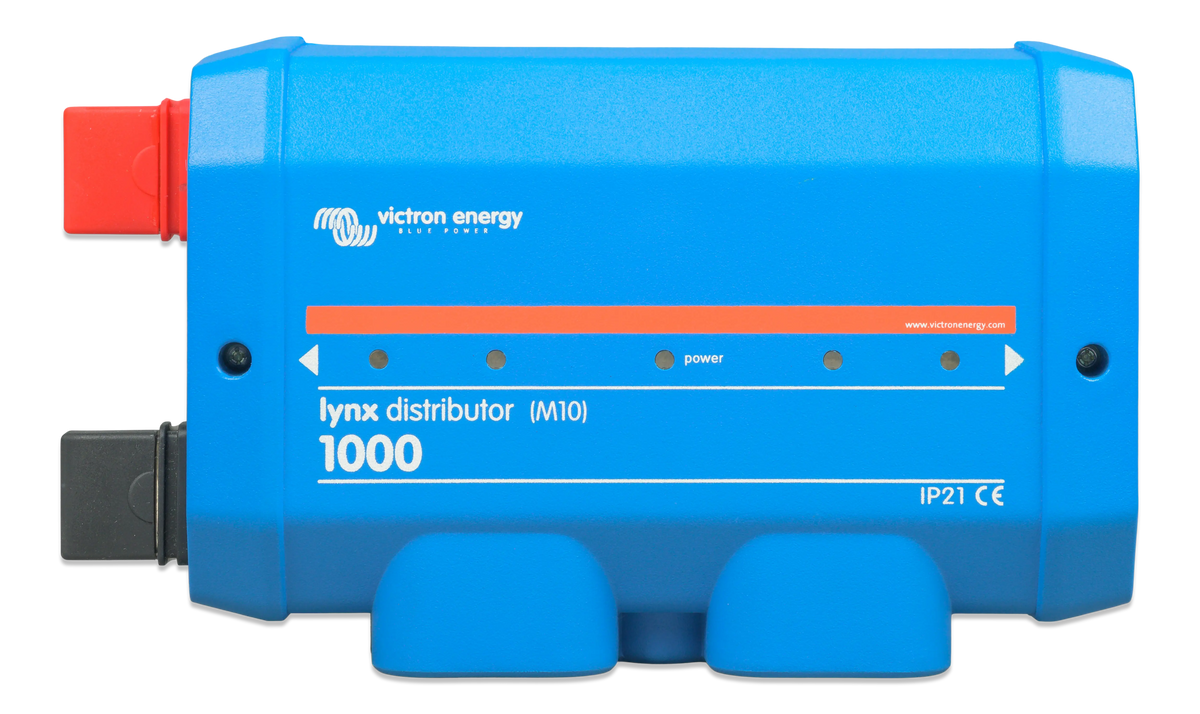

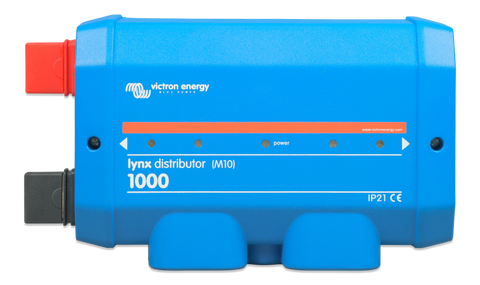

Victron Energy Lynx Distributor (M10)

The Victron Energy Lynx Distributor (M10) is a modular DC busbar system that contains a positive and negative busbar with four fused connections for batteries, loads, or chargers. It includes fuse monitoring and is part of the Victron Lynx Distribution System.

Enclosure dimensions (h x l x w): 290 x 170 x 80 mm
Unit weight: 2.2 kg
Voltage range: 9 – 60 Vdc
Current rating: 1000A

Warranty: 5-year limited warranty

The Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, battery monitoring and/or Lithium battery management.

The Lynx Distribution System consists of the following parts (purchased separately):

• Power In – A positive and negative busbar with 4 connections for batteries or DC equipment.
• Distributor – A positive and negative busbar with 4 fused connections for batteries or DC equipment together with fuse monitoring.
• Shunt VE.Can – A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device.
• Smart BMS – For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor that is driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring. It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal.

The Lynx Distributor supports four fused DC circuits using MEGA fuses (sold separately) and provides LED fuse indication for quick troubleshooting and system diagnostics.

Read the Manual for the Victron Energy Lynx Distributor (M10) (PDF)
