Engineered and assembled in Canada 🇨🇦 for Canadian conditions
CDN Solar
Key Features:
- Smart BMS: Advanced protection system with automatic heating and full battery monitoring.
- 25.6V 200Ah (5.12 kWh) LiFePO₄: High capacity with 6,000+ cycles @ 80% DOD.
- Rackmount 3U Design: Compact steel enclosure (IP20) for rack installations.
- High Performance: Continuous discharge up to 100A, peak 119A (5 min).
- Flexible Communication: 2× RS485, CANBUS, and battery communication ports.
- Cold Climate Ready: Integrated heating activates automatically from -45°C.
- Expandable System: Supports up to 32 units in parallel for scalability.
- Certified & Safe: ETL UL1973, UL9540A, and SPE-1000 compliant.
- 10-Year Warranty: Designed for long-term reliability and performance.
SKU:
BA9720
Product Type:
Battery
- Regular price
- $2,669.00
- Regular price
-
$2,999.00 - Sale price
- $2,669.00
- Unit price
- per
Subtotal:
$2,669.00
Couldn't load pickup availability
Warehouse Pick-Up Available
Our pick-up schedule is Monday to Friday from 10AM - 4PM.
Secure Transaction
Canada Wide Shipping
Products online are in stockin in our warehouse
Orders generally ship out in 1-2 days.
Description

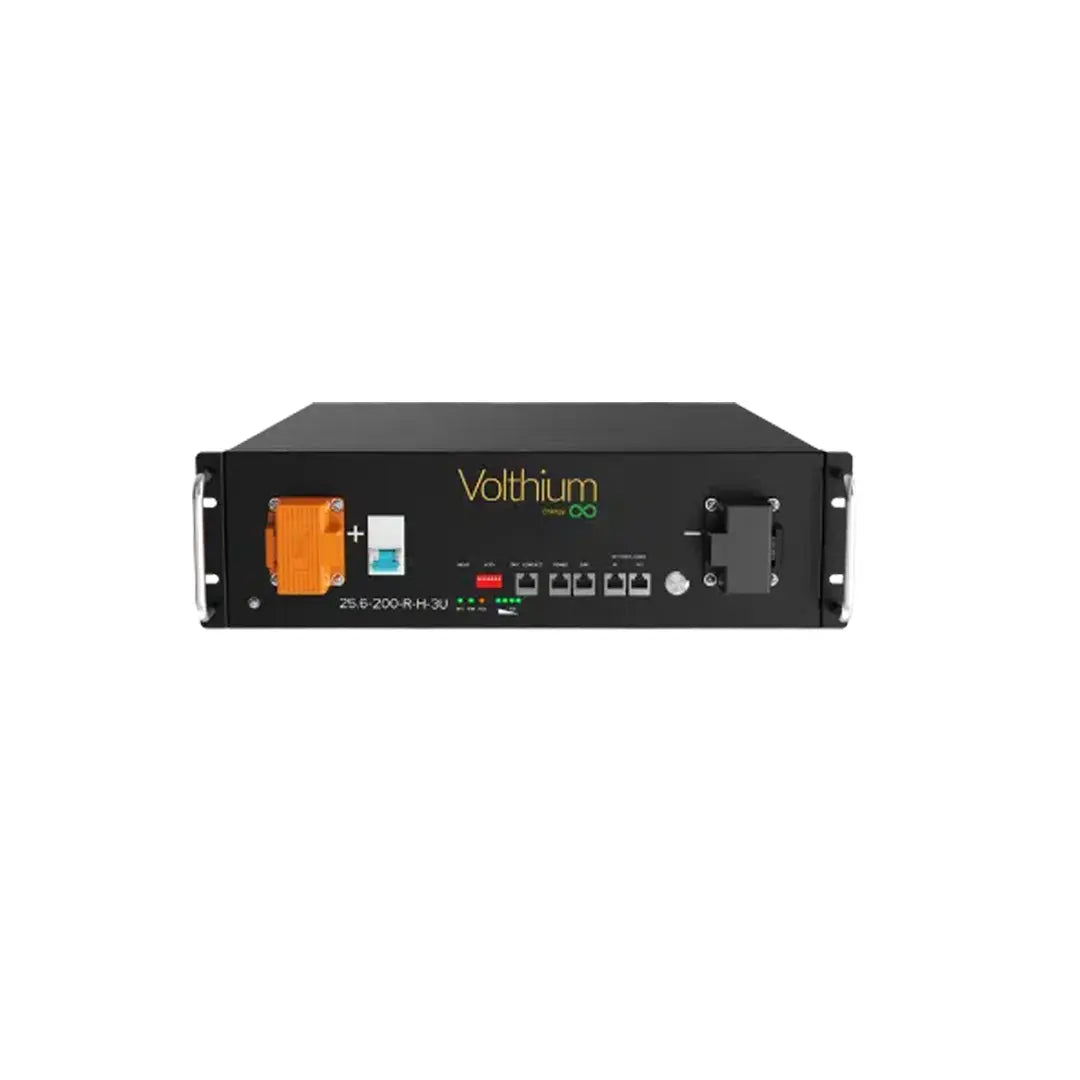

xVolthium 25.6V 200Ah LiFePO₄ Battery – Rackmount 3U | 5.12kWh
The Volthium 25.6V 200Ah Rackmount 3U LiFePO₄ Battery is a high-capacity energy storage solution engineered and assembled in Québec, Canada. Designed for reliability and performance, it complies with the Canadian Electrical Code and meets rigorous safety standards including UL1973 and UL9540A certifications, making it ideal for residential, commercial, and off-grid applications.
- Certified & Compliant: ETL UL1973 (3rd Edition), UL9540A, and SPE-1000 compliant for safe installation across Canada.
- High-Capacity LiFePO₄ Technology: 25.6V 200Ah (5.12kWh) battery with over 6,000 cycles @ 80% DOD for long-term performance.
- Cold Climate Ready: Integrated automatic heating system activates from -45°C for reliable operation in extreme Canadian conditions.
- Flexible Installation: Compact rackmount 3U design with IP20 enclosure, suitable for cabinets or structured energy systems.
- Scalable Energy Storage: Supports up to 32 units in parallel, enabling large battery banks for off-grid homes, telecom, and microgrid systems.
- Advanced Communication: Includes CANBUS and RS485 (MODBUS) ports for seamless integration with inverters and energy management systems.
- High Performance Output: Continuous discharge up to 100A with peak discharge of 119A (5 minutes).
- Reliable & Durable: Designed for a lifespan of over 15 years and backed by a 10-year warranty.
Read the Volthium 25.6V 200Ah Rackmount 3U – Technical Sheet
Features
xVolthium 25.6V 200Ah LiFePO₄ Battery – Key Features
Discover the Volthium 25.6V 200Ah Rackmount 3U LiFePO₄ Battery, engineered and assembled in Canada for high-capacity energy storage, safety, and intelligent power management. Designed for residential, commercial, and off-grid systems, it delivers reliable performance even in extreme climates.
| Feature | Description |
|---|---|
| Certified & Compliant | ETL UL1973 (3rd Edition), UL9540A, and SPE-1000 certified for safe installation in Canadian residential and commercial systems. |
| Canadian Engineering | Designed and assembled in Québec for superior quality and dependable cold-weather performance. |
| Integrated Heating System | Automatic heating activates from -45°C, ensuring reliable charging and operation in extreme conditions. |
| Smart BMS Technology | Advanced Battery Management System with full protection, monitoring, and communication via CANBUS and RS485. |
| High Capacity & Performance | Delivers 5.12kWh (25.6V 200Ah) with continuous discharge up to 100A and peak 119A for demanding applications. |
| Scalable Energy Storage | Supports up to 32 units in parallel, enabling large battery banks for off-grid, telecom, and microgrid systems. |
| Long Cycle Life | Provides over 6,000 cycles at 80% depth of discharge for long-lasting reliability. |
| Rackmount 3U Design | Compact and durable IP20-rated enclosure designed for easy integration into standard racks and energy systems. |
| Warranty | 10-year warranty with a design life exceeding 15 years. |
Tech Specs
xVolthium 25.6V 200Ah LiFePO₄ Battery – Technical Specifications
Explore the detailed technical specifications of the Volthium 24V 200Ah Rackmount 3U LiFePO₄ Battery, designed for high-performance energy storage, reliability, and seamless integration into modern power systems.
| Specification | Details |
|---|---|
| Nominal Voltage | 25.6V (24V system) |
| Capacity | 200Ah |
| Energy | 5.12 kWh (5120 Wh) |
| Recommended Charge Current | ≤ 50A |
| Maximum Charge Current | 100A |
| Charge Voltage | 28V (Bulk) / 27.3V (Float) |
| Continuous Discharge Current | 100A |
| Peak Discharge Current | 119A (5 minutes) |
| Parallel Capacity | Up to 32 units |
| Cycle Life | 6000+ cycles @ 80% DoD |
| Heating System | Automatic activation from -45°C to 11°C |
| Charging Temperature | -10°C to 45°C |
| Discharge Temperature | -10°C to 50°C |
| Communication | CAN Bus, 2x RS485, Battery Communication Ports |
| Bluetooth | Compatible |
| Dimensions | 482 × 133.5 × 460 mm (18.9 × 5.2 × 18.1 in) |
| Weight | 46 kg (101 lbs) |
| Protection Rating | IP20 |
| Certifications | UL1973 (3rd Ed.), UL9540A, SPE-1000 |
| Cell Type | LiFePO₄ (SquareCell 3.2V 100Ah – 8S2P) |
All-In-One Solution
Why Volthium is is the Right Choice?
- Canadian Expertise: Volthium is a trusted Canadian leader in advanced LiFePO₄ battery technology, recognized for quality, innovation, and reliability nationwide.
- Engineered in Québec: Designed and assembled in Canada to deliver superior safety, durability, and consistent performance in all climates.
- Advanced Smart BMS: Built-in CANBUS and RS485 communication ensure seamless integration with leading inverter systems.
- Compact & Scalable Design: Rackmount 3U form factor allows quick installation and easy expansion for residential, off-grid, and backup applications.
- Cold Climate Performance: Integrated heating system supports reliable operation in extreme temperatures, ideal for Canadian environments.
CANADIAN-BUILT. ENGINEERED TO LAST IN EXTREME WEATHER
Designed and assembled in Quebec, Volthium batteries deliver dependable power and lasting performance — even in the harshest Canadian climates.
Volthium 25.6 V 200 Ah (5.12 kWh) Rackmount 3U LiFePO₄ Battery — FAQ
Dimensions (W × H × D): 482 × 133.5 × 460 mm (18.9 × 5.2 × 18.1 in)
Weight: 46 kg (101 lb)
Format: 3U Rackmount chassis for cabinet installation
Terminal: M10 studs
Tightening torque: 8 – 10 N·m (6 – 8 ft·lb)
IP20 — protected against solid objects > 12 mm (indoor installation).
Nominal Voltage: 25.6 V
Capacity: 200 Ah (5.12 kWh)
Chemistry: LiFePO₄ (Lithium Iron Phosphate)
Self-discharge: < 1 % per month
Recommended charge current: ≤ 50 A
Maximum charge current: 100 A
Continuous discharge current: 100 A
Peak discharge current: 119 A (5 minutes)
Short-circuit protection: Integrated BMS protection
Bulk / Absorption: 28 V
Float: 27.3 V
BMS reconnect: 26 V
Discharge: −10 °C to +50 °C
Charge: −10 °C to +45 °C
Storage: −10 °C to +50 °C
Storage Voltage: 26.2 – 26.6 V
Yes. An integrated heating system activates automatically between -45°C and 11°C, allowing safe charging and operation in extreme cold conditions.
Parallel: up to 32 units.
Series: Not supported.
Protocols: CANBUS / RS485
Ports: 2× RS485, 2× Battery Communication, 1× CAN
Bluetooth: Compatible
Up to 8,200+ cycles @ 30% DoD, 6,000+ @ 80% DoD, and 3,500+ @ 100% DoD.
Warranty: 10-year limited warranty.
Certified to UL 1973, UL 9540A, and SPE-1000.
Shipping Classification: UN 3480 | Class 9
Engineered and assembled in Québec, Canada for reliable performance in harsh climates.
