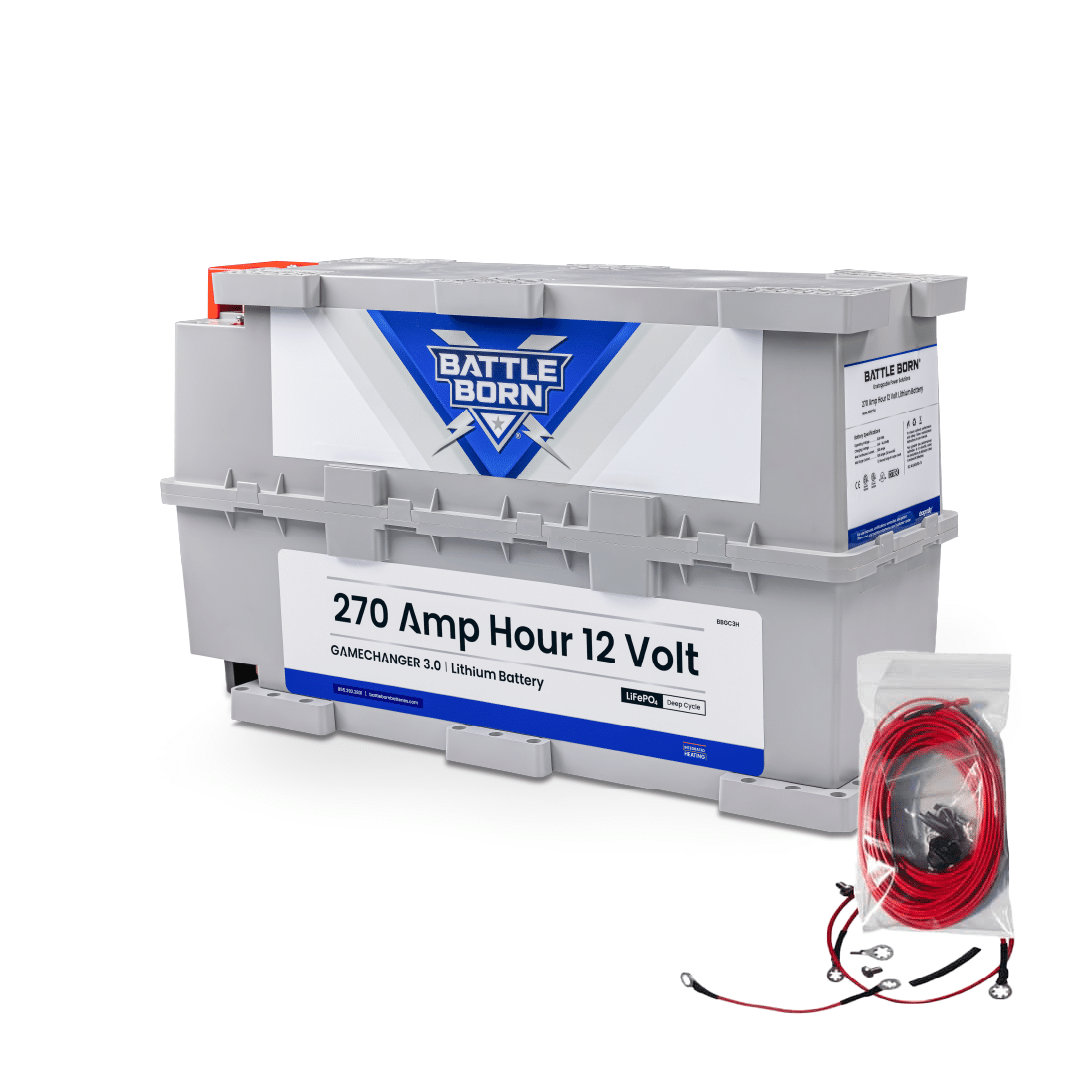

Battle Born BBGC3H 12 V 270 Ah Heated LiFePO₄ Battery front view – premium deep-cycle power solution

Battle Born BBGC3H 270Ah Heated LiFePO4 Battery with integrated heating technology for cold weather charging and built-in heater – uniform full-coverage heat distribution

Battle Born BBGC3H 270Ah 12V Heated LiFePO4 Battery with dimensions 22.83 × 7.09 × 13.15 inches – compact deep cycle lithium battery for RV, marine, and off-grid systems

Battle Born BBGC3H 270Ah 12V Heated LiFePO4 Battery – powerful upgrade from lead-acid batteries with lighter weight, faster charging, and premium deep-cycle performance for off-grid, RV, and marine use

Comparison between lead-acid and Battle Born BBGC3H 270Ah 12V lithium battery showing lighter weight, 10-year warranty, 3,000–5,000 cycles, and 100% depth of discharge for off-grid power systems

Battle Born BB10012H 12V 100Ah Heated LiFePO4 Battery – Series up to 48V, Unlimited Parallel Connections, Smart BMS with Low Temperature Protection, UL-Listed Cylindrical Cells

Battle Born BB10012H 12V 100Ah LiFePO4 Deep Cycle Battery – Ideal for RV, Marine, Off-Grid, Trolling Motor, Van, and Industrial Application

Limited-time deal

-8% $3,499.00

List Price: $3,799.00

🍁 Battle Born Lithium. 10-Year Warranty. Proven in Harsh Climates. Made for Canada

Battery Type: LiFePO₄ (Lithium Iron Phosphate)
Nominal Voltage: 12.8 V | Capacity: 270 Ah (3.46 kWh)
Cycle Life: 3,000–5,000 cycles @ 80% DOD
Integrated Heating: Activates below 0 °C (32 °F)
BMS Protection: Over/under voltage, overcurrent, temperature
Max Discharge: 200 A (30 s) | Continuous: 100 A
Recommended Charge: 50 A | Max Voltage: 14.4 V
Dimensions: 58 × 18 × 33.4 cm (22.83 × 7.09 × 13.15 in)
Weight: 80.8 lb (36.6 kg)
Operating Temp: Charge 0–45 °C | Discharge –20–60 °C
Applications: RV, marine, off-grid, and industrial systems

SKU: BBGC3H

Product Type: Battery

Regular price: $3,499.00
Regular price: ~~$3,799.00~~
Sale price: $3,499.00
Unit price: per

Quantity:

Subtotal: $3,499.00

Warehouse Pick-Up Available

Our pick-up schedule is Monday to Friday from 10AM - 4PM.

Secure Transaction

Canada Wide Shipping

Products online are in stockin in our warehouse

Orders generally ship out in 1-2 days.

Battle Born BBGC3H 12V 270Ah Heated LiFePO₄ Battery

The Battle Born BBGC3H is a 270Ah 12V heated LiFePO₄ battery engineered for high-capacity, cold-weather energy storage. Designed for RVs, off-grid cabins, marine systems, and mobile power setups, it features integrated heating, a robust smart BMS, and long-lasting lithium technology — built to withstand Canada’s toughest climates.

Key Features:

Voltage: 12.8V | Capacity: 270Ah | Energy: 3.46kWh
Cycle Life: 3,000–5,000 cycles @ 80% depth of discharge
Built-in Heating: Automatic activation below 0°C for safe cold-weather charging
Smart BMS: Integrated battery management system with thermal, voltage, and current protection
Max Charge / Discharge: 100A / 250A (500A peak for 30 seconds)
Operating Temperature: Charge 0–55°C | Discharge –20–60°C
Water Resistance: IP65-rated ABS case (dust-tight & water spray resistant)

Dimensions & Weight

Dimensions (L × W × H): 58.0 × 18.0 × 33.4 cm (22.83″ × 7.09″ × 13.15″)
Approx. Weight: 36.3 kg (≈ 80.1 lb)

Build Quality & Reliability

Battle Born Batteries are constructed with cylindrical LiFePO₄ cells, sealed IP65-rated casings, and a durable BMS to ensure maximum safety, reliability, and performance. Each unit is tested to meet stringent North American standards and backed by a 10-year warranty.

Applications:

Off-Grid Solar Energy Systems
RVs and Motorhomes
Marine & Boating Power
Cabins, Trailers & Backup Energy

Why Choose Battle Born?

Battle Born is North America’s leading lithium battery brand, known for quality, performance, and innovation. The BBGC3H delivers exceptional power density and integrated cold-weather protection — trusted by professionals, overlanders, and off-grid enthusiasts across Canada.

📄 Download Technical Datasheet (PDF)
🔥 Heating Instruction Guide (PDF)

Smart Version Available

Want advanced monitoring? The Battle Born BBGC3IH Smart Heated LiFePO₄ Battery includes Dragonfly Intelligence® for Bluetooth® monitoring and a wireless mesh network. Use the Battle Born App to view performance, temperature, and charge data in real time — ideal for precise energy systems in mobile and remote applications.

🍁 Battle Born Lithium. 10-Year Warranty. Proven in Harsh Climates. Made for Canada.

Capacity & Chemistry

270Ah 12.8V LiFePO₄ (3.46 kWh) using cylindrical Grade-A cells. Offers full usable capacity with stable voltage, high thermal stability, and no memory effect.

Cycle Life

3,000–5,000 cycles to ~80% capacity depending on charge rate and use. Expected lifespan is 10–15 years in RV, off-grid, and marine environments.

Internal Heat Technology

Integrated heating system enables safe charging below freezing.
Heating activates automatically when internal temperature is near 2°C (≈35°F) and external heater control is engaged.
Operating charge/discharge range: 0–55°C / –20–60°C (–4°F to 131°F).

Smart BMS & Protection

Advanced internal Battery Management System (BMS) protects against over-voltage, under-voltage, over-current, short circuit, and high/low temperatures. Ensures safe, balanced cell operation across all conditions.

Current Ratings

Max charge: 100 A
Continuous discharge: 250 A
Peak discharge: 500 A (30 seconds)
Internal resistance: ~3.0 mΩ | Self-discharge: <3%/month

Charging (Accepted Voltages)

Charging: 14.2–14.6 V
Float: 13.6–13.8 V
Usable DoD: 100% | Max series system voltage: 48 V

Size & Weight

Dimensions (L × W × H): 58.0 × 18.0 × 33.4 cm (22.83″ × 7.09″ × 13.15″)
Approx. weight: 36.3 kg (≈ 80.1 lb)
Enclosure: ABS, IP65 water-resistant (sealed, not submersible)

Installation & Configurations

GC3 form factor supports horizontal or vertical mounting. Can be wired in series (up to 48 V) or parallel for expanded capacity. Ensure batteries are at similar SOC and temperature for multi-unit setups.

What’s in the Heated Battery Kit

SPST rocker switch
25′ 18 AWG wire (0.187 QD to #8 ring lug)
25′ 18 AWG wire (0.187 QD to 5/16″ ring lug)
Heater jumper wire for multi-battery installs: 14″ 18 AWG (two #8 ring lugs), 2 × M4×5 mm screws, #8 ring lug, 1″ heat-shrink

Hardware Included

18-8 stainless 5/16-18 bolts (1″ and 1-1/4″), brass washers
18-8 stainless steel locking nuts
Terminals: M8 studs (recommended torque: 80–100 in-lb / 9–11 N·m)

Warranty

10-year warranty. Designed and assembled in the USA to meet stringent North American performance and safety standards.

Note: A CSL is required when using inverters 3500 W or higher.

Battle Born BBGC3H 12V 270Ah Heated LiFePO₄ Battery

The Battle Born BBGC3H delivers 3.46 kWh of dependable LiFePO₄ power with a smart BMS and integrated heating for cold-weather charging. This high-capacity GC3-format battery is perfect for off-grid, RV, marine, and mobile power systems needing rugged, long-lasting energy — even in extreme Canadian climates.

Technical Specifications

Specification	Details
Battery Type	Lithium Iron Phosphate (LiFePO₄)
Nominal Voltage	12.8 V
Capacity	270 Ah (3.46 kWh) \| PbEq: 540 Ah*
Cycle Life	3,000 – 5,000 cycles (@ 80% DoD)
Usable Depth of Discharge	100%
Internal Resistance	≈ 3 mΩ
Self-Discharge	< 3% per month
Maximum Series Voltage	48 V (max 4 batteries in series)
Charging Voltage	14.2 – 14.6 V
Float Voltage	13.6 – 13.8 V
Continuous Discharge Current	250 A
Peak Discharge Current	500 A (30 s)
Maximum Charge Current	100 A
Integrated Heating	Automatic below 0 °C (activates near 2 °C / 35 °F when enabled)
Operating Temperature Range	−20 °C to +60 °C (−4 °F to 140 °F)
BMS Type	Integrated Smart BMS with full protection suite
Case Material / Protection	ABS Plastic \| IP65 Water-Resistant (not submersible)
Terminals	M8 stud terminals (80–100 in-lb / 9–11 N·m torque)
Dimensions (L × W × H)	58.0 × 18.0 × 33.4 cm (22.83″ × 7.09″ × 13.15″)
Weight	36.3 kg (≈ 80.1 lb)
Kit Components	SPST rocker switch, 25′ heater wires, heater jumper, M4 screws, ring lugs, heat-shrink
Hardware Included	Stainless steel bolts, washers, lock nuts
Applications	Off-Grid Solar, RVs, Marine, Commercial Systems, Backup Power
Warranty	10-Year Manufacturer Warranty (Battle Born Batteries / Dragonfly Energy)

* PbEq (Ah Lead-Acid Equivalent) represents usable amp-hours compared to a lead-acid battery system of similar size.

Note: A CSL (Circuit Safety Link) is required when using inverters 3,500 W or higher.

The Battle Born Advantage

Battle Born Features

Long-lasting Performance – Get an impressive ROI with this 100Ah 12V LiFePO4 battery designed for up to 5,000 deep cycles, delivering reliable power for up to 15 years.
Adventure-Ready – Ideal for campers, boats, vans, and RVs, this fast-charging battery is also suitable for industrial and home backup power needs.
Highly Versatile – This eco-friendly, 100Ah 12V battery can be wired in series or parallel and safely installed in any position, thanks to its acid-free design.
Robust Protection – A built-in BMS safeguards against temperature extremes and voltage fluctuations, ensuring long-lasting battery health.
Reliable Quality – Manufactured in Reno, Nevada, our 12V lithium batteries are trusted industry-wide and come with a 10-year warranty and lifetime support.

Lead Acid vs. Lithium-Ion

While lead-acid batteries are ideal for vehicle ignition, lithium-ion batteries are the top choice for RVers needing versatile energy storage. Lithium-ion batteries efficiently power a wide range of amenities—from keeping food fresh to supporting work on the road—making them an indispensable part of modern RV travel.

Advantages of Lead-Acid Batteries

Lead-acid batteries have the advantage of being well-established and reliable. They are generally less expensive upfront, making them an attractive option for budget-conscious consumers. Additionally, they are widely available, ensuring that you can easily find a replacement while on the road.

Drawbacks of Lead-Acid Batteries

However, lead-acid batteries tend to be heavier and bulkier, which can be a concern in an RV where space is limited. They also require more frequent maintenance, such as topping off with distilled water, and have a lower energy density compared to lithium-ion batteries.

Advantages of Lithium-Ion Batteries

Lithium-ion batteries are lighter and more compact, allowing you to make better use of the limited space in an RV. They also have a higher energy density, enabling them to store more power without increasing their size. Plus, they generally require little to no maintenance.

Drawbacks of Lithium-Ion Batteries

The main drawback of lithium-ion batteries is their higher upfront cost. However, this can often be offset by their longer lifespan and greater energy efficiency, especially for RVers who spend a lot of time on the road.

Battle Born BBGC3H Heated 12V 270Ah LiFePO₄ Battery – FAQ

Dimensions: 22.83 × 7.09 × 13.15 in (58.0 × 18.0 × 33.4 cm)
Weight: 80.1 lbs (36.3 kg)

The BBGC3H includes a built-in heating system that activates when the internal temperature nears 2 °C (35 °F) and the heat-enable jumper or switch is connected. This allows safe charging below freezing in Canadian climates.

Nominal Voltage: 12.8 V
Capacity: 270 Ah (3.46 kWh)
Max Charge Current: 100 A
Continuous Discharge: 250 A
Peak Discharge: 500 A for 30 seconds

Yes. You can connect up to 4 batteries in series (48 V systems) or in parallel for higher capacity. For heated versions, daisy-chain the heat-enable wires or use the supplied switch to control all heaters simultaneously.

Yes. The built-in Smart BMS monitors voltage, temperature, and current while protecting against over-voltage, under-voltage, short circuits, and high/low temperature. It also controls the heating system.

No, the BBGC3H does not include Bluetooth. For smart monitoring, consider the BBGC3IH Smart version, or pair this battery with a Victron BMV-712 Smart battery monitor.

Cycle Life: 3,000–5,000 cycles at 80% depth of discharge
Warranty: 10-Year Limited Warranty by Battle Born / Dragonfly Energy

Battle Born Batteries are assembled in the USA (Reno, Nevada) using top-tier LiFePO₄ cells and robust quality controls for demanding RV, marine, and solar installations.

The BBGC3H is ideal for off-grid solar, RV, marine, commercial energy systems, and backup power. The integrated heater makes it suitable for use in sub-zero Canadian environments.

Includes: SPST rocker switch, 25′ heat-enable wires, jumper wire, M4×5 mm screws, ring lugs, and heat-shrink tubing for multi-battery installations. See the included Heating Instruction Guide for details.

Store at 50–70% charge in a dry, cool location (10–30 °C / 50–86 °F). Disconnect all loads and heater wires. Recharge every 6 months for optimal health.
