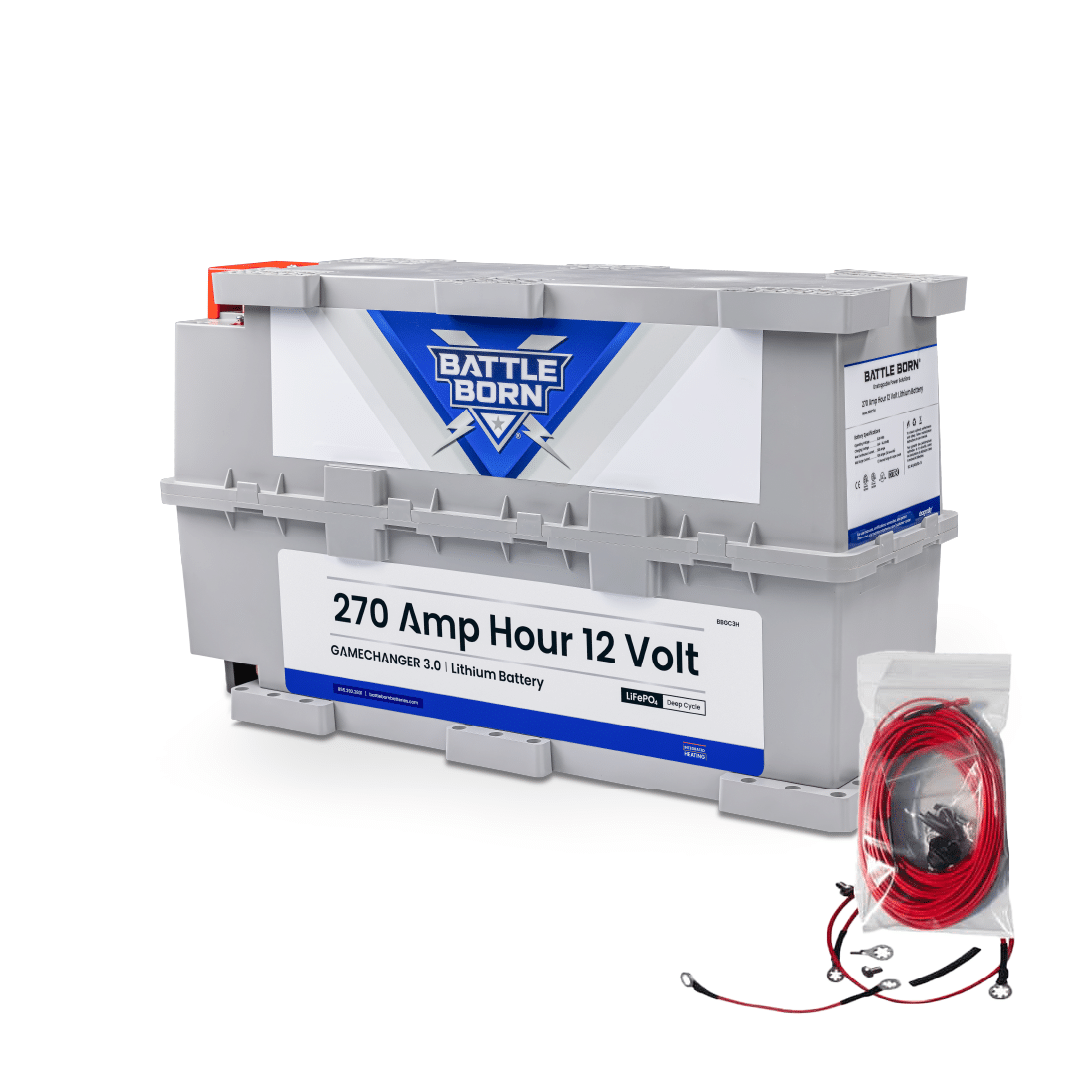

Battle Born BBGC3H 12 V 270 Ah Heated LiFePO₄ Battery front view – premium deep-cycle power solution

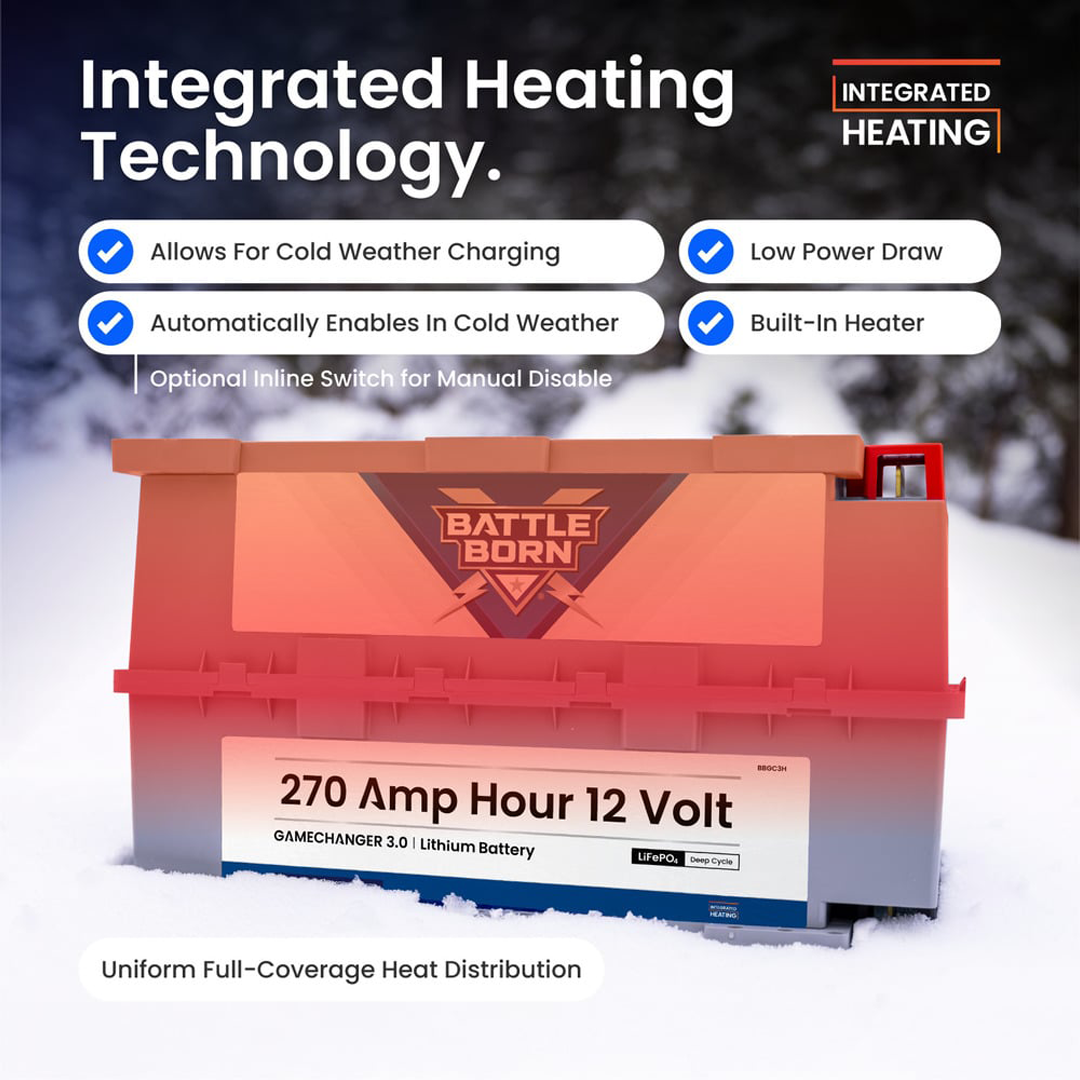

Battle Born BBGC3H 270Ah Heated LiFePO4 Battery with integrated heating technology for cold weather charging and built-in heater – uniform full-coverage heat distribution

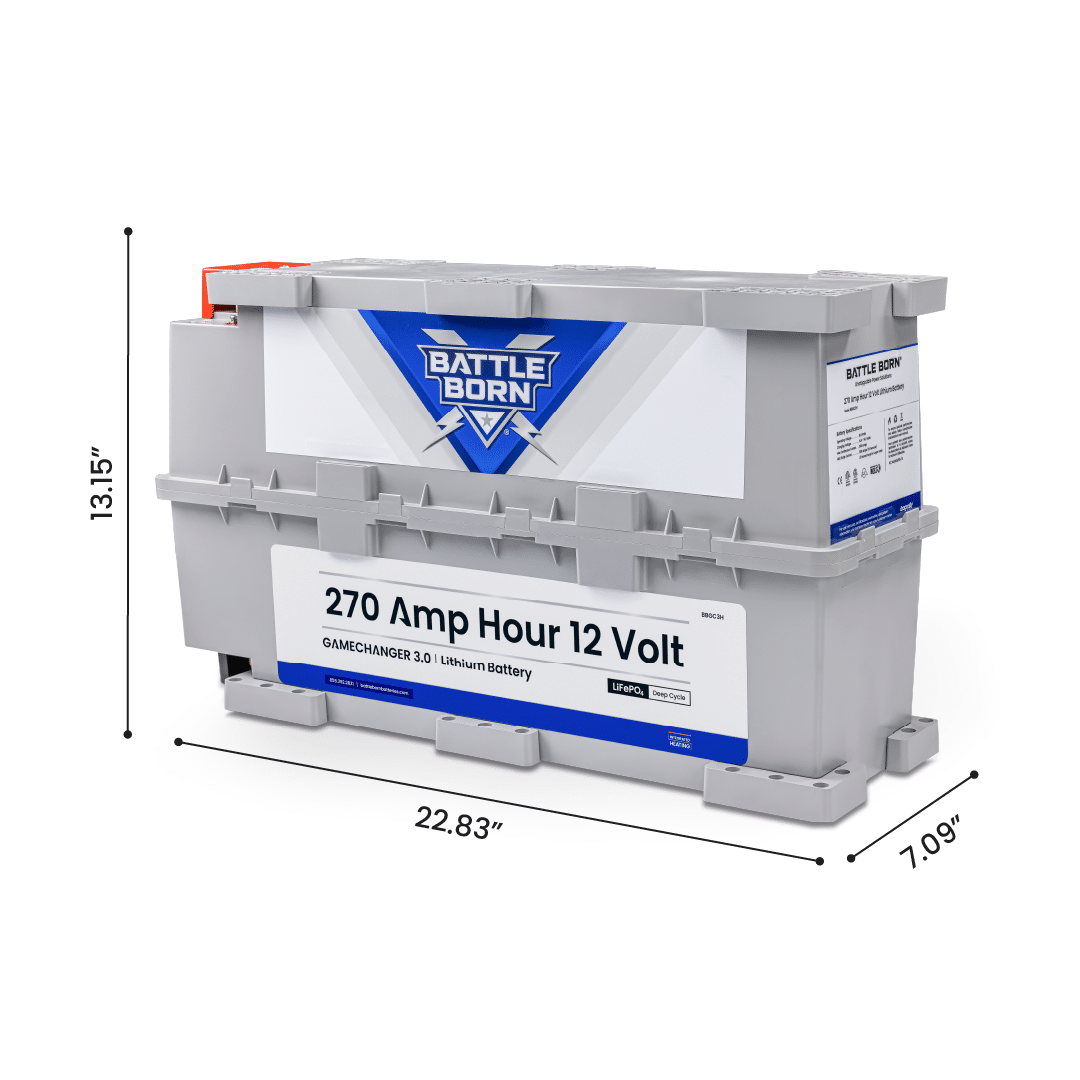

Battle Born BBGC3H 270Ah 12V Heated LiFePO4 Battery with dimensions 22.83 × 7.09 × 13.15 inches – compact deep cycle lithium battery for RV, marine, and off-grid systems

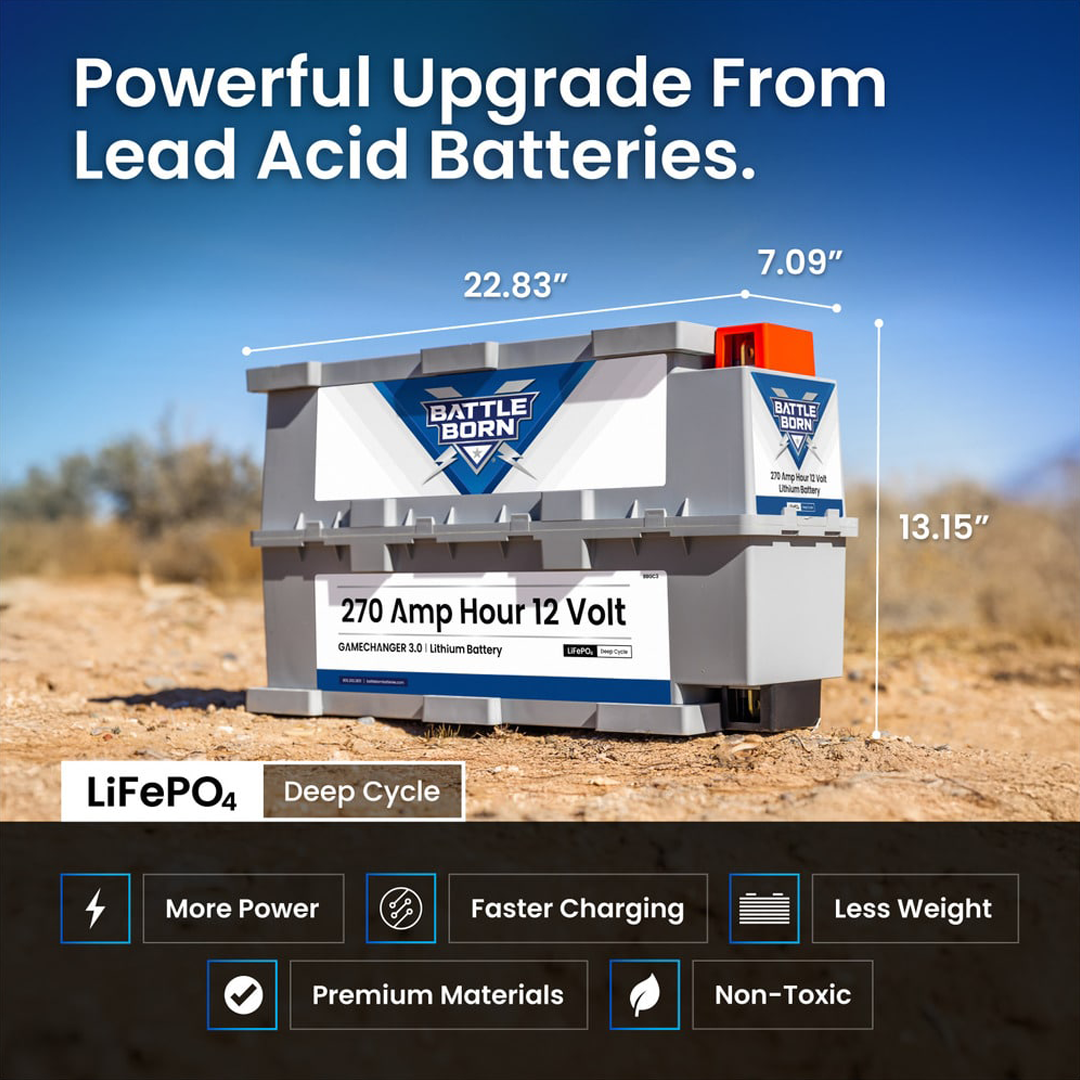

Battle Born BBGC3H 270Ah 12V Heated LiFePO4 Battery – powerful upgrade from lead-acid batteries with lighter weight, faster charging, and premium deep-cycle performance for off-grid, RV, and marine use

Comparison between lead-acid and Battle Born BBGC3H 270Ah 12V lithium battery showing lighter weight, 10-year warranty, 3,000–5,000 cycles, and 100% depth of discharge for off-grid power systems

Battle Born BB10012H 12V 100Ah Heated LiFePO4 Battery – Series up to 48V, Unlimited Parallel Connections, Smart BMS with Low Temperature Protection, UL-Listed Cylindrical Cells

Battle Born BB10012H 12V 100Ah LiFePO4 Deep Cycle Battery – Ideal for RV, Marine, Off-Grid, Trolling Motor, Van, and Industrial Application

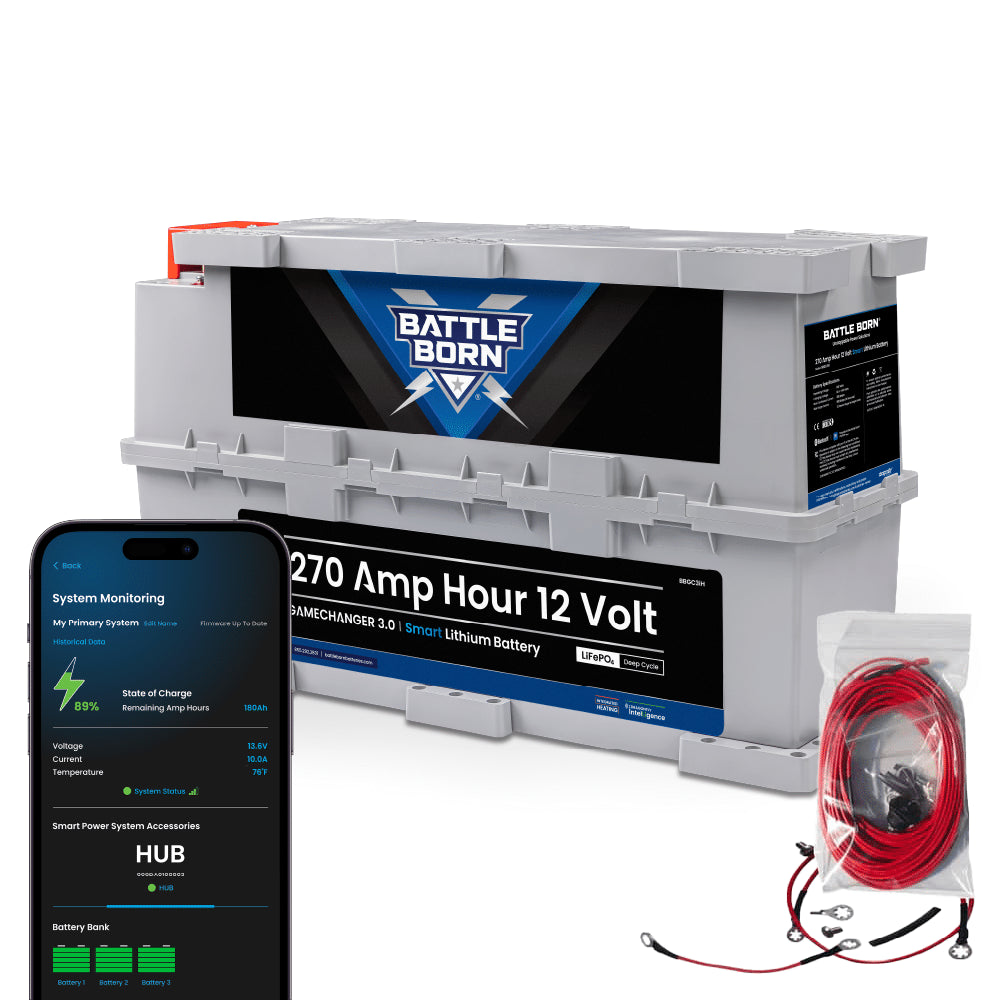

Battle Born BBGC3iH – 270Ah 12V GC3 Smart Heated LiFePO₄ Battery Kit (Bluetooth®)

Limited-time deal

-8% $3,699.00

List Price: $3,999.00

🍁 Battle Born Lithium. 10-Year Warranty. Proven in Harsh Climates. Made for Canada

Battery Type: LiFePO₄ (Lithium Iron Phosphate)
Voltage: 12.8 V | Capacity: 270 Ah (3.46 kWh)
Cycle Life: 3,000–5,000 cycles @ 80% DOD
Heating: Auto-activation around 1.7 °C (35 °F)
Smart BMS: Bluetooth® & Dragonfly IntelLigence® mesh
Max Discharge: 300 A (500 A peak / 30 s)
Charge Current: ≤ 135 A | 14.2–14.6 V abs | 13.4–13.8 V float
Size: 58 × 18 × 33.4 cm (22.8 × 7.1 × 13.2 in)
Weight: 36.7 kg (80.8 lb)
Temp Range: –20 to 57 °C (discharge) | Heat-enabled charge
Use Cases: RV, Marine, Off-Grid Solar, Cabins, Industrial

SKU: BBGC3iH

Product Type: Battery

Regular price: $3,699.00
Regular price: ~~$3,999.00~~
Sale price: $3,699.00
Unit price: per

Quantity:

Subtotal: $3,699.00

Warehouse Pick-Up Available

Our pick-up schedule is Monday to Friday from 10AM - 4PM.

Secure Transaction

Canada Wide Shipping

Products online are in stockin in our warehouse

Orders generally ship out in 1-2 days.

Battle Born BBGC3iH 12V 270Ah Smart Heated LiFePO₄ Battery

The Battle Born BBGC3iH is the smart, heated 270Ah 12V LiFePO₄ battery designed for RVs, off-grid cabins, marine systems, and mobile power. It pairs a rugged BMS with Dragonfly IntelLigence® smart communication (Bluetooth® + wireless mesh) and integrated heating for reliable charging in cold Canadian climates.

Key Features:

Voltage: 12.8V | Capacity: 270Ah | Energy: ≈ 3.46kWh
Cycle Life: 3,000–5,000 deep cycles (100% usable DoD)
Integrated Heating: Heat-enable for safe cold-weather charging; ~28W draw when enabled; activates around ~35°F (≈1.7°C)
Smart BMS + Comms: Thermal/voltage/current protections, short-circuit & low-temp cutoffs, plus Bluetooth® monitoring and wireless mesh networking
Max Discharge: 300A continuous; 500A for 30 seconds; 0.5s surge for loads >500A
Charge Specs: Recommended ≤ 0.5C; max charge 135A; Absorption 14.2–14.6V; Float 13.4–13.8V
Operating Temperature: Discharge −20–57°C (−4–135°F) | Charge (heat-enabled) for cold-weather operation
Water Resistance: IP65-rated ABS case (dust-tight & water-spray resistant)
System Flexibility: Series up to 48V; unlimited parallel; mount in any orientation

Smart Monitoring & System Integration

Dragonfly IntelLigence®: Robust wireless mesh + Bluetooth® for battery/system data
Battle Born® App: View SoC, voltage, temperature, history, and alerts (iOS; Android coming)
Protocols: RV-C, NMEA 2000 (some protocols rolling out), and more
Battle Born® Hub: Required for full system monitoring & advanced features

Dimensions & Weight

Dimensions (L × W × H): 58.0 × 18.0 × 33.4 cm (22.83″ × 7.09″ × 13.15″)
Approx. Weight: 36.7 kg (≈ 80.8 lb)
Terminals: 0.25″ brass; 3/8″ hole (use 3/8″ or 5/16″ hardware)

Build Quality & Reliability

Built with UL-listed cylindrical LiFePO₄ cells, an IP65 case, and a proven BMS, Battle Born Smart batteries deliver safety, longevity, and consistent performance. Backed by a 10-year warranty.

Applications

Off-Grid Solar Energy Systems
RVs & Motorhomes (12V or 24/36/48V banks)
Marine & Boating Power
Cabins, Trailers & Mobile Worksites

Why Choose the Smart (iH) Version?

The BBGC3iH adds real-time visibility and control to your power system with Bluetooth® monitoring, a wireless mesh network, and optional hub-based system views — ideal for professional overlanding rigs, complex RV installs, and cold-weather off-grid sites that demand precision.

📄 Download Technical Datasheet (PDF)
📘 Smart Battery Manual (PDF)
🔥 Integrated Heating Instructions (PDF)

Non-Smart Version Available

Prefer a simpler setup without smart comms? See the Battle Born BBGC3H Heated 270Ah 12V LiFePO₄ Battery.

🍁 Battle Born Lithium. 10-Year Warranty. Proven in Harsh Climates. Made for Canada.

Capacity & Chemistry

270 Ah 12.8 V LiFePO₄ (≈ 3.46 kWh) using UL-listed cylindrical cells. Safe, non-toxic chemistry with 100% usable capacity, high efficiency (99%), and no memory effect.

Cycle Life

3,000 – 5,000 deep discharge cycles (@ 80–100% DoD). Expected lifespan of 10 to 15 years in RV, marine, and off-grid applications.

Integrated Heating Technology

Automatic activation around 1.7 °C (35 °F) when heat function is enabled.
Draws ≈ 28 W for safe charging below freezing (0 °C / 32 °F).
Charge temperature: 25 °F to 135 °F (–4 °F to 135 °F discharge range).
Female M4 heat-enable terminal for switch connection (included).

Smart BMS & Protection

Proprietary Battery Management System (BMS) manages cell balancing, over/under voltage, current, temperature, and short circuit protection. Automatic fault reset in ≈ 5 seconds.

Max continuous current: 300 A | Peak 500 A (30 s) | Surge > 500 A (0.5 s)
Low-temp cutoff (0 °C) and high-temp cutoff (55–60 °C)
Low-voltage disconnect: 10.5 V | Reconnect: 10 V
Cell balancing voltage ≈ 14.2 V

Smart Communication – Dragonfly IntelLigence®

Bluetooth® monitoring and wireless mesh network for multi-battery systems.
Battle Born App (iOS; Android coming soon) shows SOC, voltage, temperature, and alerts.
Update frequency: every 5 seconds for real-time status.
Bluetooth range ≈ 15 m (50 ft) | Mesh range ≈ 10 m (32 ft).
Hub required for multi-battery monitoring and advanced features (e.g., RV-C / NMEA 2000).

Charging & Performance

Recommended charge: ≤ 135 A (0.5 C)
Absorption: 14.2 – 14.6 V | Float: 13.4 – 13.8 V
Efficiency: ≈ 99% | Self-discharge: 2–3% per month
Series connection up to 48 V | Unlimited parallel connections

Size & Weight

Dimensions (L × W × H): 58 × 18 × 33.4 cm (22.83″ × 7.09″ × 13.15″)
Weight: ≈ 36.7 kg (80.8 lb)
Terminals: 0.25″ brass | 3/8″ hole | Torque 9–11 ft-lb (12 N·m)
Case: Fire-rated ABS | IP65 water-resistant (non-submersible)

Installation & Configurations

GC3 form factor supports any orientation. Mount in series (≤ 48 V) or parallel (unlimited). Use same state of charge and temperature before linking. A Current Surge Limiter (CSL) is required for inverters ≥ 3500 W.

Included Hardware

(1) BBGC3iH Smart Heated LiFePO₄ Battery
(2) Stainless 5/16-18 × 1″ bolts + (2) × 1-1/4″ bolts
(4) Washers + (2) Nylok nuts

Warranty & Support

10-year warranty. Designed and assembled in the USA to meet UL 1642, UN38.3, and IP65 standards. Technical support available via Battle Born Batteries (855-292-2831 | info@battlebornbatteries.com).

Battle Born BBGC3iH 12V 270Ah Smart Heated LiFePO₄ Battery

The BBGC3iH delivers 3.46 kWh of dependable LiFePO₄ power with an integrated heater and a smart BMS featuring Dragonfly IntelLigence® for Bluetooth® monitoring and wireless mesh networking. Built for RV, marine, off-grid, and mobile power systems that need reliable performance in Canadian climates.

Technical Specifications

Specification	Details
Battery Type	Lithium Iron Phosphate (LiFePO₄), UL-listed cylindrical cells
Nominal Voltage	12.8 V
Capacity / Energy	270 Ah (≈ 3.46 kWh)
Cycle Life	3,000–5,000 deep cycles (@ 80–100% DoD)
Usable Depth of Discharge	100%
Internal Resistance	≈ 5 mΩ
Self-Discharge	≈ 2–3% per month
Maximum Series Voltage	48 V (series up to 4 batteries); unlimited parallel
Charging (Absorption / Float)	14.2–14.6 V / 13.4–13.8 V
Recommended / Max Charge Current	≤ 135 A (0.5C) / 135 A
Continuous Discharge Current	300 A
Peak / Surge Discharge	500 A (30 s) \| > 500 A (0.5 s)
Integrated Heating (iH)	Heat-enable terminal; activates around ~1.7 °C (35 °F) when enabled; ≈ 28 W draw
Operating Temperatures	Discharge: −20 °C to +57 °C (−4 °F to 135 °F) • Charge (heat-enabled): down to ~−4 °C (25 °F) up to 135 °F
Smart BMS / Communications	Dragonfly IntelLigence®: Bluetooth® + wireless mesh; Battle Born App (iOS); HUB required for multi-battery/advanced features
Case / Ingress Protection	ABS, fire-rated • IP65 water-resistant (non-submersible)
Terminals & Hardware	0.25″ brass flag terminals, 3/8″ hole (use 3/8″ or 5/16″ hardware); torque 9–11 ft-lb (≈ 108–132 in-lb / 12 N·m)
Dimensions (L × W × H)	58.0 × 18.0 × 33.4 cm (22.83″ × 7.09″ × 13.15″)
Weight	≈ 36.7 kg (80.8 lb)
Included Hardware	Finishing hardware kit: (2) 5/16-18 × 1″ bolts, (2) 5/16-18 × 1-1/4″ bolts, (4) washers, (2) Nylok nuts
Certifications	UL 1642 (cells), UN38.3, UL 121201 / CSA C22.2 No.213-17 (C1D2), IP65
Applications	Off-Grid Solar, RVs & Motorhomes, Marine, Cabins, Mobile/Industrial Power
Warranty	10-Year Manufacturer Warranty (Battle Born Batteries / Dragonfly Energy)

Note: A Current Surge Limiter (CSL) is required when using inverters rated at 3,500 W or higher.

The Battle Born Advantage

Battle Born Features

Smart & Long-Lasting Performance – Get an impressive ROI with this smart 100Ah 12V LiFePO₄ battery featuring built-in Bluetooth® monitoring and advanced BMS technology. Designed for up to 5,000 deep cycles, it delivers reliable power for up to 15 years.
Adventure-Ready – Ideal for campers, boats, vans, and RVs, this fast-charging battery is also suitable for industrial and home backup power needs.
Highly Versatile – This eco-friendly 100Ah 12V smart battery can be wired in series or parallel and safely installed in any position, thanks to its acid-free, maintenance-free design.
Robust Protection – An integrated Smart BMS safeguards against temperature extremes, overcurrent, and voltage fluctuations, ensuring consistent performance and long-term health.
Reliable Quality – Manufactured in Reno, Nevada, our smart lithium batteries are trusted industry-wide and backed by a 10-year warranty and lifetime technical support.

Lead Acid vs. Lithium-Ion

While lead-acid batteries are ideal for vehicle ignition, lithium-ion batteries are the top choice for RVers needing versatile energy storage. Lithium-ion batteries efficiently power a wide range of amenities—from keeping food fresh to supporting work on the road—making them an indispensable part of modern RV travel.

Advantages of Lead-Acid Batteries

Lead-acid batteries have the advantage of being well-established and reliable. They are generally less expensive upfront, making them an attractive option for budget-conscious consumers. Additionally, they are widely available, ensuring that you can easily find a replacement while on the road.

Drawbacks of Lead-Acid Batteries

However, lead-acid batteries tend to be heavier and bulkier, which can be a concern in an RV where space is limited. They also require more frequent maintenance, such as topping off with distilled water, and have a lower energy density compared to lithium-ion batteries.

Advantages of Lithium-Ion Batteries

Lithium-ion batteries are lighter and more compact, allowing you to make better use of the limited space in an RV. They also have a higher energy density, enabling them to store more power without increasing their size. Plus, they generally require little to no maintenance.

Drawbacks of Lithium-Ion Batteries

The main drawback of lithium-ion batteries is their higher upfront cost. However, this can often be offset by their longer lifespan and greater energy efficiency, especially for RVers who spend a lot of time on the road.

Battle Born BBGC3iH Smart Heated 12V 270Ah LiFePO₄ Battery – FAQ

Dimensions: 22.83 × 7.09 × 13.15 in (58.0 × 18.0 × 33.4 cm)
Weight: ≈ 80.8 lb (36.7 kg)

The BBGC3iH includes an integrated heater that allows safe charging in sub-freezing conditions. When the heat-enable terminal is switched on, heating engages automatically around ~1.7 °C (35 °F). Power draw is ~28 W while heating.

Temps: Charge (heat-enabled) down to ~−4 °C/25 °F; Discharge −20 °C to +57 °C (−4 °F to 135 °F).

Nominal Voltage: 12.8 V | Capacity: 270 Ah (≈ 3.46 kWh)

Charge: Absorption 14.2–14.6 V • Float 13.4–13.8 V • Recommended/Max charge current ≤ 135 A (0.5C)

Discharge: 300 A continuous • 500 A for 30 s • > 500 A for 0.5 s surge

Yes. Wire in series up to 48 V (4 batteries) and unlimited in parallel. For heated systems, link the heat-enable leads (or use a single switch) so all batteries heat evenly. Ensure batteries have similar state of charge and temperature before linking.

Yes. The iH model includes a Smart BMS (cell balancing, over/under-voltage, over-current, short-circuit, high/low temp cutoffs) and Dragonfly IntelLigence® communications for Bluetooth® monitoring and a wireless mesh network.

Use the Battle Born App (iOS) for SoC, voltage, temperature, history, and alerts (updates ~every 5 s). A Battle Born Hub is required for multi-battery and advanced features (e.g., RV-C/NMEA 2000 integration).

Cycle Life: 3,000–5,000 deep cycles (80–100% DoD)
Warranty: 10-Year Limited Warranty (Battle Born / Dragonfly Energy)

Designed and assembled in the USA (Reno, Nevada) with UL-listed cylindrical LiFePO₄ cells and IP65, C1D2-rated pack design.

Off-grid solar systems, RVs & motorhomes, marine/boating, cabins, trailers, and mobile/industrial power. The heated design is ideal for cold Canadian environments.

(1) BBGC3iH Smart Heated Battery and a finishing hardware kit: (2) 5/16-18 × 1″ bolts, (2) 5/16-18 × 1-1/4″ bolts, (4) washers, (2) Nylok nuts. Heat-enable terminal provided on the battery; wiring/switch kits may vary by install—see the Integrated Heating Instructions.

Store in a cool, dry place. Bring to 100% charge and disconnect from loads; typical self-discharge is ~2–3%/month. After ~6 months, recharge if needed. Storage temperature range: −10 °F to 140 °F (−23 °C to 60 °C).

Mount in any orientation. Torque terminals to 9–11 ft-lb (≈ 12 N·m). Use properly sized cables/fusing. CSL required with inverters ≥ 3,500 W.

Technical Datasheet | Smart Battery Manual | Integrated Heating Instructions
