Take Control of Your Utility Bills
$31,067.03
Designed for Canadian homes seeking reliable solar savings and essential backup power.
For Very High Energy Homes
Our largest residential hybrid solar system designed for maximum solar production and expanded whole-home backup capability.
Our largest residential hybrid solar system designed for maximum solar production and expanded whole-home backup capability.
- Best for: very high energy homes, EV charging, and large electrical loads
- Ideal if: you want maximum yearly solar offset and advanced backup protection
- System size: 18 kW (36 panels • 12 kW inverter • 20 kW storage)
- Electrical: works with 225A busbar electrical systems
- Solar panels: 36 × JA Solar 500W panels
- Battery storage: 4 × Pytes V5°α+ lithium batteries
- Backup loads: heat pumps, well pumps, workshop circuits, refrigeration, and multiple appliance loads
SKU:
OL01020181
Product Type:
Grid Tie Kit
- Regular price
- $31,067.03
- Regular price
-
- Sale price
- $31,067.03
- Unit price
- per
Subtotal:
$31,067.03
Couldn't load pickup availability
Warehouse Pick-Up Available
Our pick-up schedule is Monday to Friday from 10AM - 4PM.
Secure Transaction
Canada Wide Shipping
Products online are in stock in our warehouse
Orders generally ship out in 1-2 days.
Vendor: CDN Solar

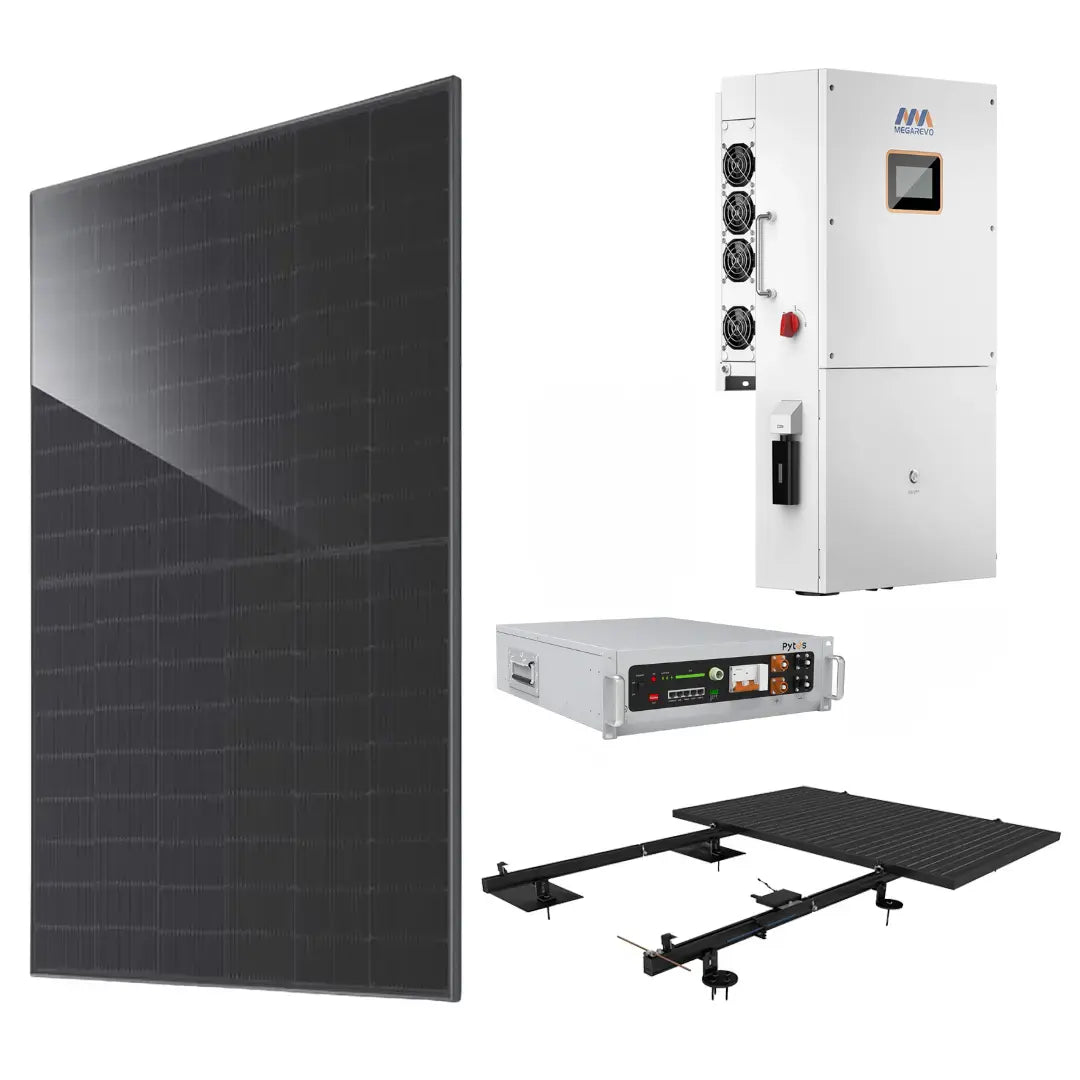

Max Capacity Residential Solar + Battery Backup Kit (18kw) – For Very High Energy Use
$31,067.03
Vendor: CDN Solar
Max Capacity Residential Solar + Battery Backup Kit (18kw) – For Very High Energy Use
$31,067.03
Description
xFor Very High Energy Homes + Whole-Home Backup Potential
The Max Capacity Residential Solar + Battery Backup Kit is our largest residential hybrid system, designed for very high energy homes, large electrical loads, and homeowners wanting maximum solar production with expanded backup capability.
Ideal for customers with EV charging, heat pumps, workshops, or significant yearly energy usage, this system delivers premium solar generation alongside large-scale battery storage and backup potential.
⭐ Average home recommendations are based on typical Canadian household energy usage.
System Overview:
- 18 kW solar array
- 12 kW Megarevo hybrid inverter
- 20 kW Pytes lithium battery storage
- Tigo optimization system
- SunModo roof mounting system
- Grid-connected solar + battery backup system
Ideal Home Fit
This system is typically best suited for homes with:
- 225A busbar electrical systems recommended
- Approximately 930 sq ft of usable roof space
- Expanded backup coverage requirements
- Very high daily electrical usage
Best suited for:
- Very high energy homes
- Large families
- EV charging
- Heat pumps and larger electrical systems
- Customers wanting maximum yearly energy offset
- Grid-connected residential applications
Typical backup loads may include:
- Large refrigeration systems
- Heat pumps
- Well pumps
- Workshop circuits
- Multiple appliance loads
- Expanded backup panel configurations
- Largest backed-up appliance is 12 kVA
Installation & Mounting Options
This package is configured by default for roof-mounted installations on asphalt shingle roofs using SunModo racking components.
Custom mounting options are available upon request, including:
- Standing seam metal roofs
- Exposed fastener metal roofs
- Ground-mounted systems
- Top-of-pole mounted systems
If your roof or installation type differs from standard asphalt shingles, our team can customize the mounting hardware and system configuration for your project.
Included Components
- 36 × JA Solar 500W solar panels
- 1 × Megarevo 12 kW hybrid inverter
- 4 × Pytes V5°α+ lithium batteries
- Tigo TS4-A-O optimization system
- Tigo CCA + TAP monitoring equipment
- SunModo racking system
- Soladeck roof penetrations
- MC4 solar cable and connectors
- Battery mounting brackets and cable kits
Optional Add-Ons
- Lightning / surge protection
- Customized lamicoid signage package
- Single-line diagram (SLD) package
- Additional battery storage
Important Disclaimer
Final system design, electrical compliance, permitting, and installation must be reviewed and approved by a licensed electrician or installer.
System Components
xMax Capacity Residential Solar + Battery Backup Kit (18 kW) — System Components
This kit includes:
| Description | Quantity |
|---|---|
| Megarevo R12KLNA 12kW Hybrid Smart Inverter | 1 |
| JA 500W Solar Panel Black Bifacial Black Frame | 36 |
| Sunmodo NANOMOUNT-B Nano Mount Black | 84 |
| Sunmodo SCREW-B Deck Screw Black | 336 |
| Sunmodo LFA-SMR100-B L Foot Adaptor Black | 84 |
| Sunmodo SMR100-168-B 168" Rail Black | 24 |
| Sunmodo SPLC-SMR100 Rail Splice | 12 |
| Sunmodo CLMP-END-SMR-B Pop-on End Clamp Black | 24 |
| Sunmodo CLMP-MID-SMR-B Pop-on Mid Clamp Black | 60 |
| Sunmodo GRND-SMR Ground Clamp | 6 |
| Sunmodo CAP-SMR100-B Rail End Cap Black | 24 |
| MC4 XLPE Black Sun Resistant 10 Gauge Cable | 60 ft |
| MC4 XLPE Red Sun Resistant 10 Gauge Cable | 60 ft |
| MC4 Connector M/F Assembled with Wire | 10 |
| Tigo TS4-A-O Optimizer Module | 36 |
| Tigo CCA Data Logger Kit Cloud Connect Advanced | 1 |
| Tigo TAP Access Point Shielded Cable | 1 |
| SolaDeck AC/DC Roof Penetration Box | 4 |
| Pytes V5°a Plus LiFePO4 Battery 5.12kWh | 4 |
| Pytes V5 or V5°a Plus Battery Bracket Set | 4 |
| Pytes V5°a Plus 2m Battery Cable Orange | 2 |
| Pytes V5°a Plus 2m Battery Cable Black | 2 |
| Pytes V5°a Plus Communication Cable | 1 |
| Lynx Power In (M10) | 1 |
| 2/0 Inverter Cable Kit 48V 2@6' RR+BB 5/16 | 2 |
Roof type: Designed for asphalt shingle roofs.
Electrical service: Configured for 225A rated distribution panels.
Array Layout

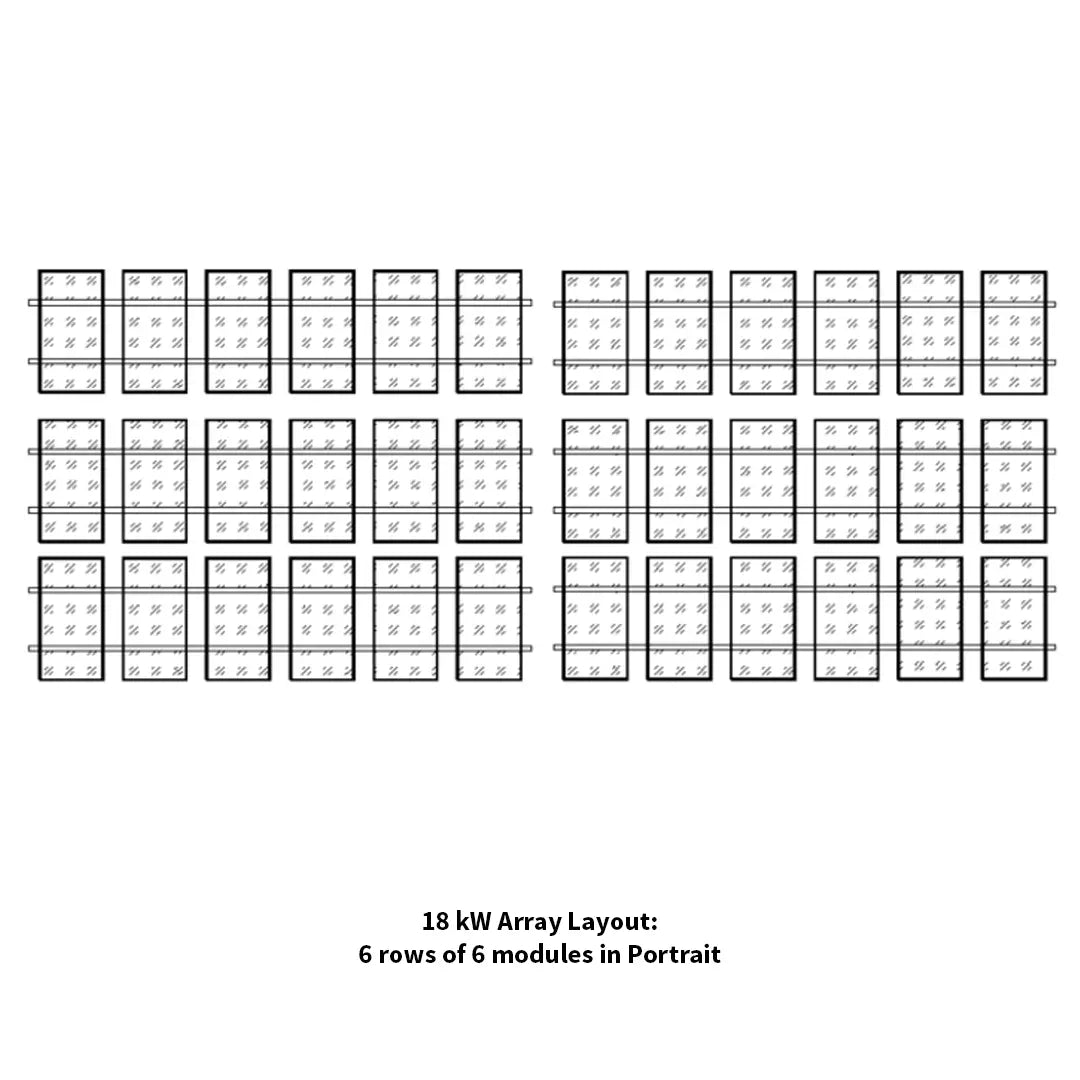

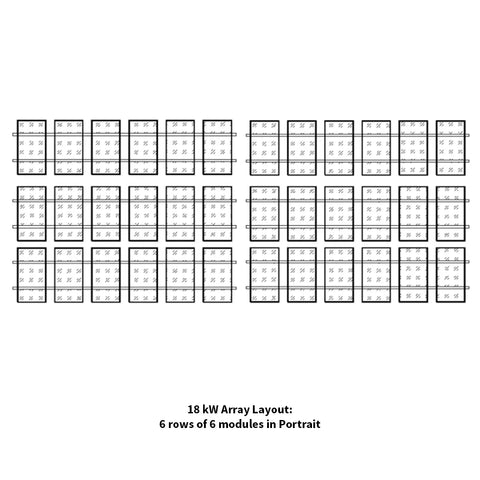

x18 kW Array Layout: 6 rows of 6 modules in Portrait
Documentation
xDocumentation
| Datasheet | JA Solar 500W Panel Datasheet |
| Mounting System | SunModo SMR Roof Mounting System Overview |
SunModo SMR Pitched Roof System
- The SunModo SMR Pitched Roof System is included in this kit, providing a secure and efficient mounting solution.
- Designed for easy installation, it features a quick-lock mechanism, reducing labor time and ensuring a secure, weather-resistant fit.
Residential Solar + Battery Backup Kit FAQ
This is a complete grid-connected hybrid solar system designed for very high energy homes, large electrical loads, and homeowners wanting maximum solar production with expanded backup capability.
The system includes solar panels, a hybrid inverter, lithium battery storage, roof mounting hardware, and monitoring equipment selected to work together safely and efficiently.
This kit includes:
- 18 kW solar array
- 12 kW Megarevo hybrid inverter
- 20 kW Pytes lithium battery storage
It is designed for very high energy homes and whole-home backup potential applications.
This system is typically best suited for:
- Very high energy homes
- Large families
- EV charging
- Heat pumps and larger electrical systems
- Customers wanting maximum yearly energy offset
This system is designed for homes with:
- 225A busbar electrical systems recommended
- Grid-connected residential applications
Final electrical design and approval must be completed by a licensed electrician in accordance with local electrical code.
Typical backup loads may include:
- Large refrigeration systems
- Heat pumps
- Well pumps
- Workshop circuits
- Multiple appliance loads
- Expanded backup panel configurations
Largest backed-up appliance supported is approximately 12 kVA.
This kit includes:
- 36 × JA Solar 500W solar panels
- 1 × Megarevo 12 kW hybrid inverter
- 4 × Pytes V5°α+ lithium batteries
- Tigo optimization and monitoring system
- SunModo roof mounting system
- Soladeck roof penetrations
- MC4 solar cable and connectors
- Battery mounting brackets and cable kits
See the System Components section for complete quantities and specifications.
This package is configured by default for:
- Asphalt shingle roofs
Custom mounting options are available upon request, including:
- Standing seam metal roofs
- Exposed fastener metal roofs
- Ground-mounted systems
- Top-of-pole mounted systems
Yes. Optional add-ons include:
- Lightning / surge protection
- Customized lamicoid signage package
- Single-line diagram (SLD) package
- Additional battery storage
This system is designed to be DIY-friendly, however final electrical connections, inspections, utility approvals, and commissioning must be completed by a licensed electrician or qualified installer.
Final system design, electrical compliance, permitting, and installation must be reviewed and approved by a licensed electrician or installer.
Power Your Home with a 18kW Grid-Tie Solar Kit + Battery Backup Today!
