Battle Born BB10012H 12V 100Ah LiFePO4 Deep Cycle Battery – More Power, Faster Charging, Less Weight, Non-Toxic Design

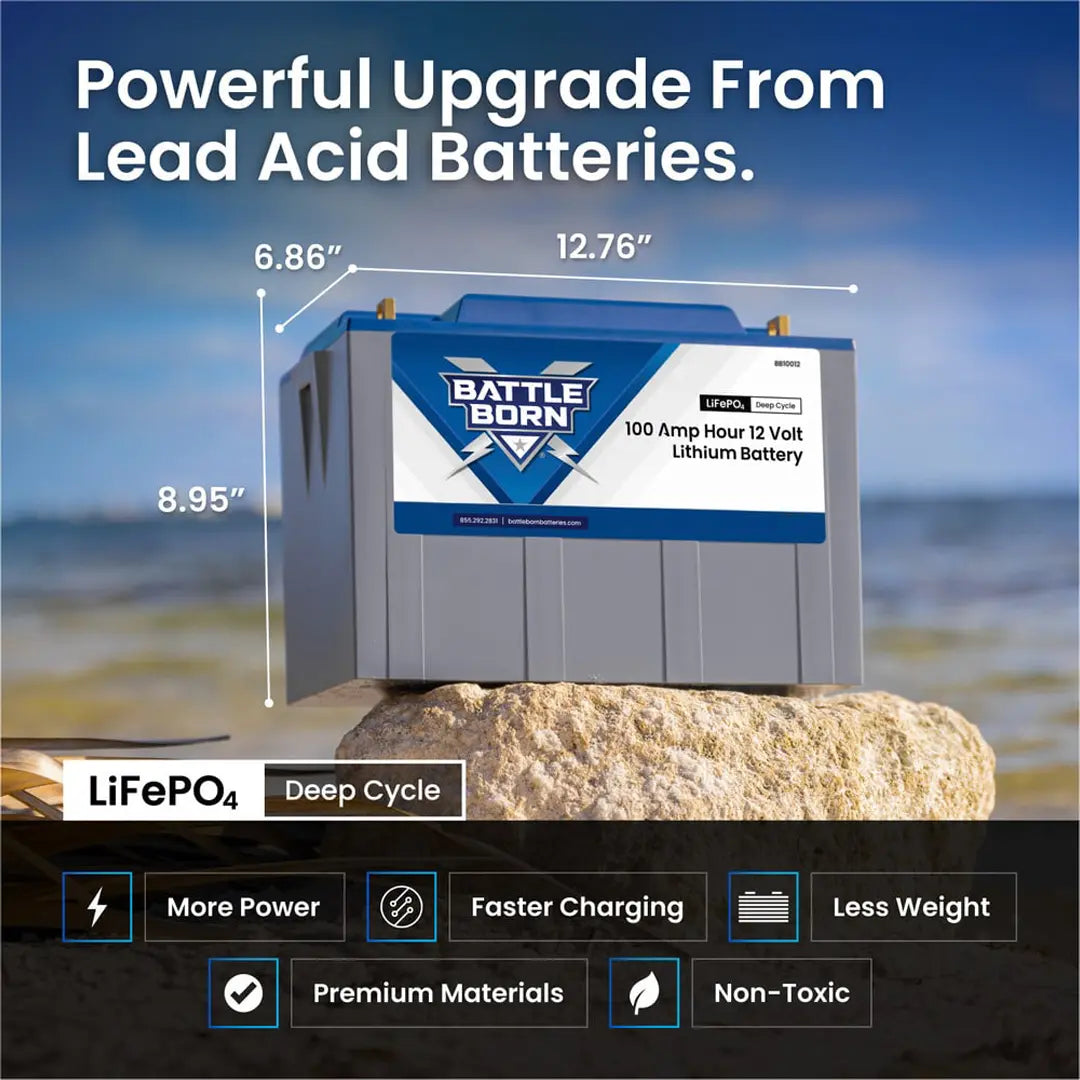

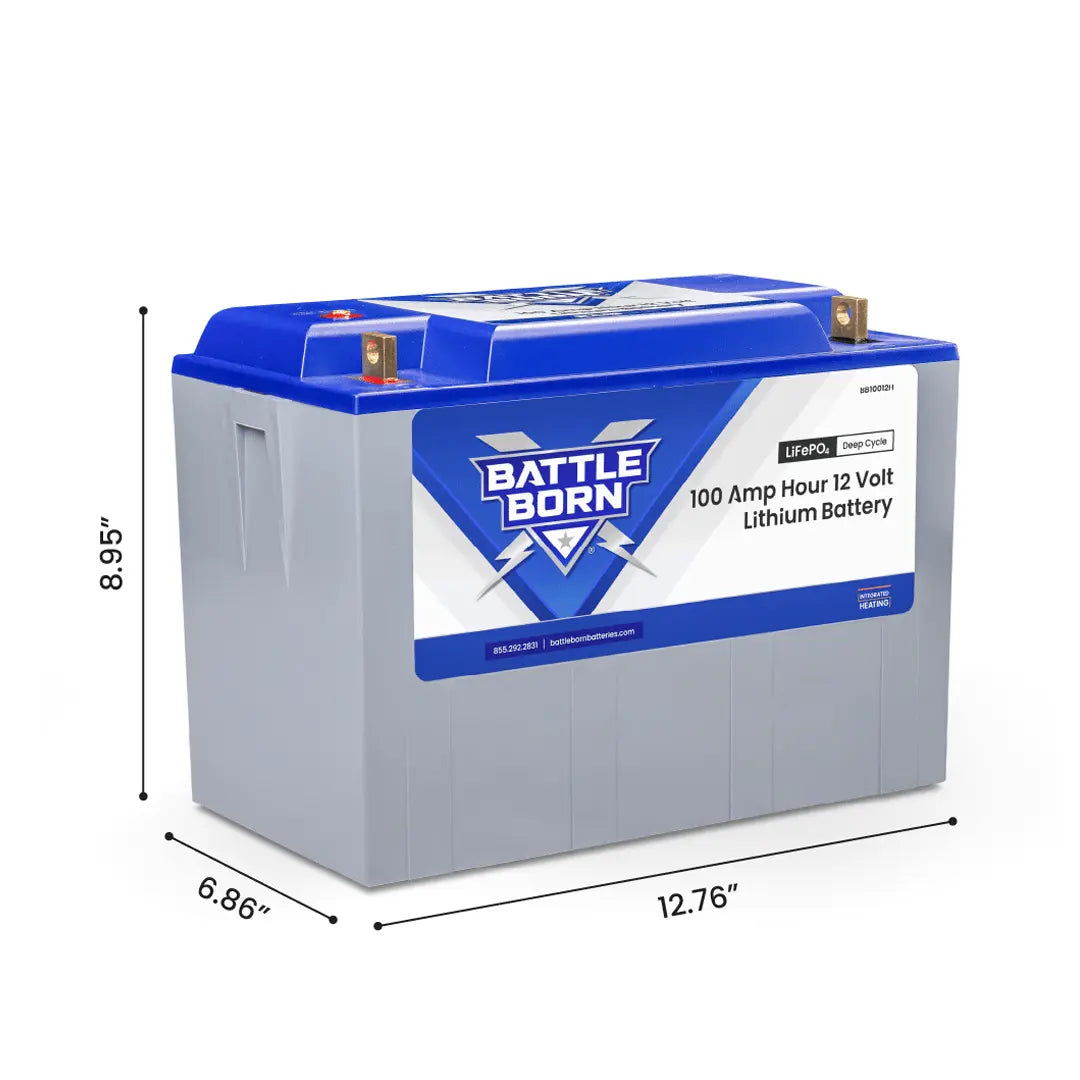

Battle Born BB10012H 12V 100Ah LiFePO4 Deep Cycle Battery with Dimensions 12.76 x 6.86 x 8.95 inches

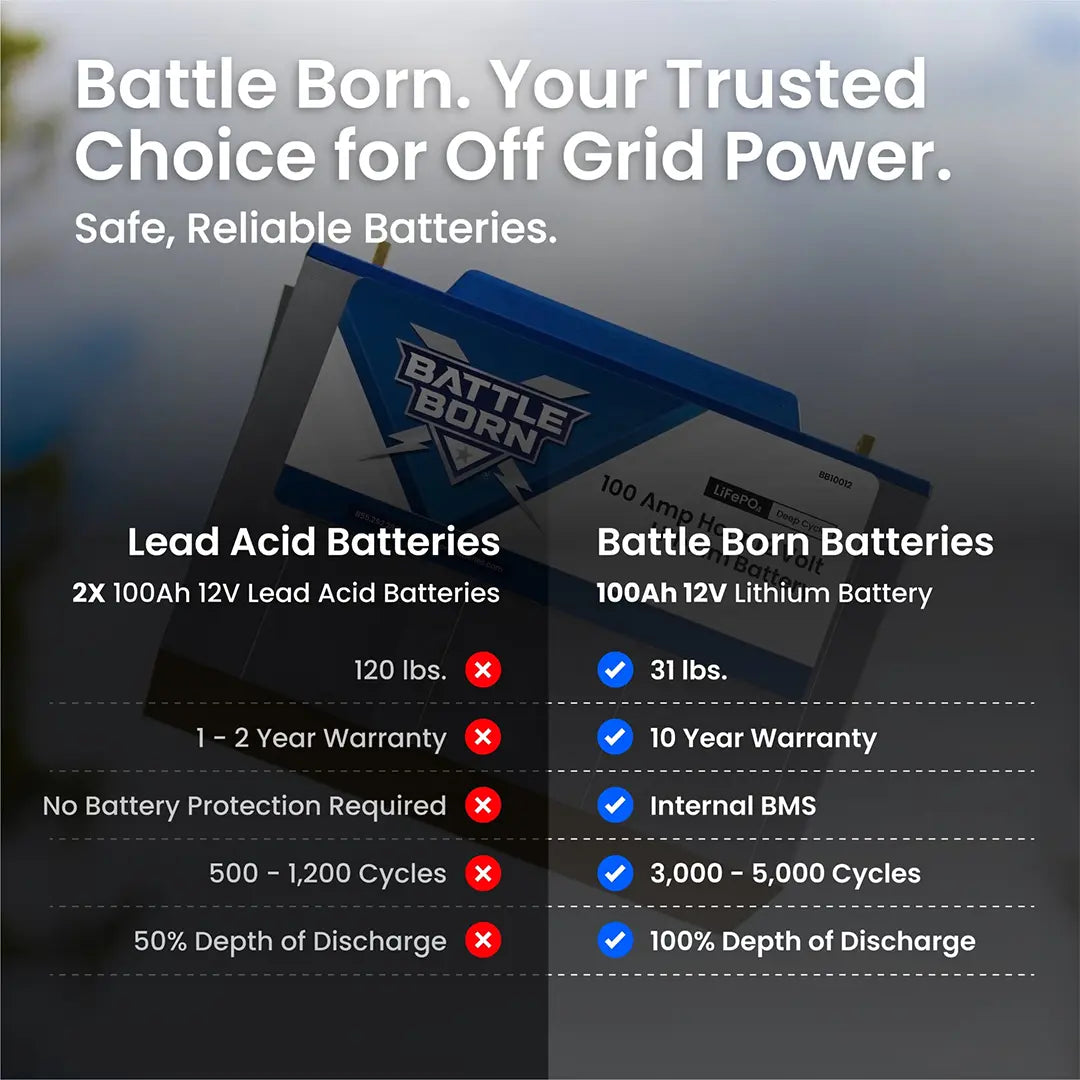

Battle Born BB10012H 12V 100Ah Lithium Battery vs Lead Acid – Off-Grid Trusted Choice, 10-Year Warranty, Lightweight, Long Cycle Life

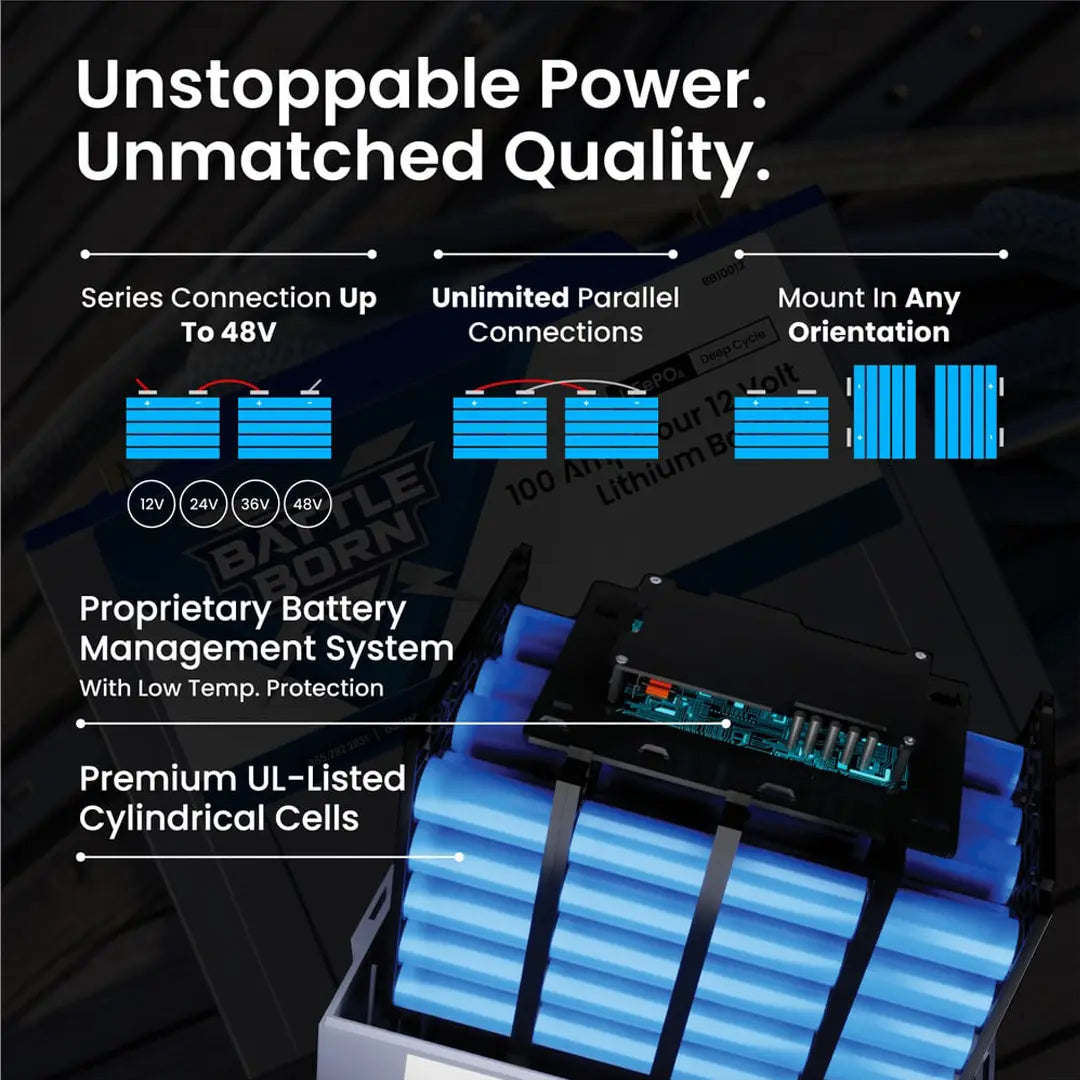

Battle Born BB10012H 12V 100Ah Heated LiFePO4 Battery – Series up to 48V, Unlimited Parallel Connections, Smart BMS with Low Temperature Protection, UL-Listed Cylindrical Cells

Battle Born BB10012H 12V 100Ah LiFePO4 Deep Cycle Battery – Ideal for RV, Marine, Off-Grid, Trolling Motor, Van, and Industrial Application

Limited-time deal

-11% $1,599.00

List Price: $1,799.00

🍁 Battle Born Lithium. 10-Year Warranty. Proven in Harsh Climates. Made for Canada

Battery Type: LiFePO₄ (Lithium Iron Phosphate)
Nominal Voltage: 12.8 V | Capacity: 100 Ah (1.28 kWh)
Cycle Life: 3,000 – 5,000 cycles @ 80% DOD
Built-in Heating: Automatically activates below 0 °C
Battery Management: Smart BMS with low-temperature cutoff
Max Charge / Discharge Current: 50 A / 100 A (200 A peak 30 s)
Protection: Over/under-voltage, short-circuit, temperature control
Terminal: M8 | Enclosure: ABS (IP65 rated)
Dimensions: 32.4 × 17.5 × 22.9 cm | Weight: 14 kg
Operating Temperature: Charge 0–45 °C | Discharge –20–60 °C
Ideal for: RVs, marine power, off-grid solar systems

SKU: BB10012H

Product Type: Battery

Regular price: $1,599.00
Regular price: ~~$1,799.00~~
Sale price: $1,599.00
Unit price: per

Quantity:

Subtotal: $1,599.00

Warehouse Pick-Up Available

Our pick-up schedule is Monday to Friday from 10AM - 4PM.

Secure Transaction

Canada Wide Shipping

Products online are in stockin in our warehouse

Orders generally ship out in 1-2 days.

Battle Born BB10012H 12V 100Ah Heated LiFePO₄ Battery

The Battle Born BB10012H delivers dependable, long-lasting power for off-grid solar, RV, and marine systems. Built with internal heating, a smart BMS, and advanced LiFePO₄ chemistry, it ensures reliable performance in cold climates and provides over 3,000 deep cycles of clean, safe energy.

Key Features:

Voltage: 12.8V | Capacity: 100Ah | Energy: 1.28kWh
Cycle Life: 3,000–5,000 cycles @ 80% depth of discharge
Built-in Heating: Automatic activation below 0°C for cold-weather charging
Smart BMS: Integrated battery management system for voltage and temperature protection
Max Charge / Discharge: 50A / 100A (200A peak for 30 seconds)
Operating Temperature: Charge 0–45°C | Discharge –20–60°C
Water Resistance: IP65-rated ABS case (not submersible)

Dimensions & Weight

Dimensions (L × W × H): 32.4 × 17.5 × 22.9 cm (12.75″ × 6.88″ × 9.0″)
Approx. Weight: 14.0 kg (≈ 31 lb)

Build Quality & Reliability

Battle Born Batteries are engineered with cylindrical LiFePO₄ cells and a robust internal BMS, ensuring consistent performance, safety, and longevity. Every unit is tested to meet strict North American standards and backed by a 10-year warranty.

Applications:

Off-Grid Solar Energy Systems
RVs and Camper Vans
Marine & Boating Power
Cabins, Trailers & Backup Energy

Why Choose Battle Born?

Battle Born is a leader in lithium battery innovation. The BB10012H combines high efficiency, lightweight design, and cold-weather reliability—making it the trusted choice for Canadian off-grid and mobile energy storage.

📄 Download Technical Datasheet (PDF)
🔥 Heating Instruction Guide (PDF)

Smart Version Available

Looking for advanced connectivity? The Battle Born BB10012IH Smart Heated LiFePO₄ Battery adds Dragonfly Intelligence® technology for Bluetooth® monitoring and a wireless mesh network. This smart version lets you track performance, temperature, and charging data in real time through the Battle Born App—ideal for precision energy management in RV, marine, or off-grid setups.

🍁 Battle Born Lithium. 10-Year Warranty. Proven in Harsh Climates. Made for Canada.

Capacity & Chemistry

100Ah 12.8V LiFePO₄ (1.28 kWh) using cylindrical Grade-A cells. Delivers full usable depth of discharge with stable voltage and no memory effect.

Cycle Life

3,000–5,000 cycles to ~80% capacity (usage and charge rate dependent). Expected service life 10–15 years in typical RV/solar applications.

Internal Heat Technology

Self-heating enables safe charging in cold environments.
Heater engages when internal temp ≈ 35°F (≈ 2°C) and heat is enabled.
Operating charge/discharge range: 0–45°C / –20–60°C (–4°F to 135°F overall).

Smart BMS & Protection

Integrated BMS monitors voltage, current, and temperature for balanced, safe operation. Protection against over/under-voltage, over-current, short-circuit, and temperature extremes.

Current Ratings

Max charge: 50 A
Continuous discharge: 100 A
Peak discharge: 200 A (≈30 s)
Internal resistance: ~7 mΩ | Self-discharge: 2–3%/month

Charging (Accepted Voltages)

Charging: 14.2–14.6 V
Float: 13.4–13.8 V
Usable DoD: 100% | Max series system voltage: 48 V

Size & Weight

Dimensions (L × W × H): 32.4 × 17.4 × 22.7 cm (12.76″ × 6.86″ × 8.95″)
Approx. weight: 14.0 kg (≈ 31 lb)
Enclosure: ABS, IP65 water-resistant (not submersible)

Installation & Configurations

Drop-in replacement for lead-acid Group 31. Mount in any orientation. Supports series (up to 48 V) and parallel expansion (follow manufacturer guidance for matching SOC and model).

What’s in the Heated Battery Kit

SPST rocker switch
25′ 18 AWG wire (0.187 QD to #8 ring lug)
25′ 18 AWG wire (0.187 QD to 5/16″ ring lug)
Heater jumper wire for multi-battery installs: 14″ 18 AWG (two #8 ring lugs), 2 × M4×5 mm screws, #8 ring lug, 1″ heat-shrink

Hardware Included

18-8 stainless 5/16-18 bolts (1″ and 1-1/4″), brass washers
18-8 stainless nuts with nylon inserts
Terminals: M8 studs (recommended torque 80–100 in-lb / 9–11 N·m)

Warranty

10-year warranty. Designed and assembled to meet strict North American quality standards.

Note: A CSL is required when using inverters 3500 W or higher.

Battle Born BB10012H 12V 100Ah Heated LiFePO₄ Battery

The Battle Born BB10012H delivers 1.28 kWh of reliable LiFePO₄ power with integrated internal heating and advanced BMS protection. Designed for Canadian cold-weather performance, it’s ideal for off-grid solar, RV, marine, and backup energy systems.

Technical Specifications

Specification	Details
Battery Type	Lithium Iron Phosphate (LiFePO₄)
Nominal Voltage	12.8 V
Capacity	100 Ah (1.28 kWh) \| PbEq: 200 Ah*
Cycle Life	3,000 – 5,000 cycles (@ 80% DoD)
Usable Depth of Discharge	100%
Internal Resistance	≈ 7 mΩ
Self-Discharge	2–3% per month
Maximum Series Voltage	48 V (max 4 batteries in series)
Charging Voltage	14.2 – 14.6 V
Float Voltage	13.4 – 13.8 V
Continuous Discharge Current	100 A
Peak Discharge Current	200 A (30 s)
Maximum Charge Current	50 A
Integrated Heating	Automatic below 0 °C (heats when cell ≈ 35 °F / 2 °C and enabled)
Operating Temperature Range	−20 °C to +60 °C (−4 °F to 135 °F)
BMS Type	Integrated Smart BMS with over/under-voltage, over-temp, short circuit protection
Case Material / Protection	ABS Plastic \| IP65 Water-Resistant (not submersible)
Terminals	M8 stud terminals (80–100 in-lb / 9–11 N·m torque)
Dimensions (L × W × H)	32.4 × 17.4 × 22.7 cm (12.76″ × 6.86″ × 8.95″)
Weight	14 kg (≈ 31 lb)
Kit Components	SPST rocker switch, 25′ heater wires, jumper wire for multi-battery use, mounting hardware
Hardware Included	18-8 stainless steel bolts (1″ & 1¼″), brass washers, nylon lock nuts
Applications	Off-Grid Solar, RVs, Marine, Cabins, Trailers, Backup Energy
Warranty	10-Year Manufacturer Warranty (Battle Born Batteries / Dragonfly Energy)

* PbEq (Ah Lead-Acid Equivalent) represents usable amp-hours compared to a lead-acid battery system of similar size.

Note: A CSL (Circuit Safety Link) is required when using inverters 3,500 W or higher.

The Battle Born Advantage

Battle Born Features

Long-lasting Performance – Get an impressive ROI with this 100Ah 12V LiFePO4 battery designed for up to 5,000 deep cycles, delivering reliable power for up to 15 years.
Adventure-Ready – Ideal for campers, boats, vans, and RVs, this fast-charging battery is also suitable for industrial and home backup power needs.
Highly Versatile – This eco-friendly, 100Ah 12V battery can be wired in series or parallel and safely installed in any position, thanks to its acid-free design.
Robust Protection – A built-in BMS safeguards against temperature extremes and voltage fluctuations, ensuring long-lasting battery health.
Reliable Quality – Manufactured in Reno, Nevada, our 12V lithium batteries are trusted industry-wide and come with a 10-year warranty and lifetime support.

Lead Acid vs. Lithium-Ion

While lead-acid batteries are ideal for vehicle ignition, lithium-ion batteries are the top choice for RVers needing versatile energy storage. Lithium-ion batteries efficiently power a wide range of amenities—from keeping food fresh to supporting work on the road—making them an indispensable part of modern RV travel.

Advantages of Lead-Acid Batteries

Lead-acid batteries have the advantage of being well-established and reliable. They are generally less expensive upfront, making them an attractive option for budget-conscious consumers. Additionally, they are widely available, ensuring that you can easily find a replacement while on the road.

Drawbacks of Lead-Acid Batteries

However, lead-acid batteries tend to be heavier and bulkier, which can be a concern in an RV where space is limited. They also require more frequent maintenance, such as topping off with distilled water, and have a lower energy density compared to lithium-ion batteries.

Advantages of Lithium-Ion Batteries

Lithium-ion batteries are lighter and more compact, allowing you to make better use of the limited space in an RV. They also have a higher energy density, enabling them to store more power without increasing their size. Plus, they generally require little to no maintenance.

Drawbacks of Lithium-Ion Batteries

The main drawback of lithium-ion batteries is their higher upfront cost. However, this can often be offset by their longer lifespan and greater energy efficiency, especially for RVers who spend a lot of time on the road.

Battle Born BB10012H Heated 12V 100Ah LiFePO₄ Battery – FAQ

Dimensions: 12.75 × 6.875 × 9 in (32.4 × 17.5 × 22.9 cm)
Weight: 31 lbs (14.06 kg)

The BB10012H features an automatic internal heating system that activates when charging temperatures drop below 0 °C (32 °F). The heater uses battery or charger power to warm the cells before allowing charging, ensuring safe operation in cold climates like Canada.

Nominal Voltage: 12 V
Nominal Capacity: 100 Ah (1.28 kWh)
Recommended Charge Current: 20 A
Max Charge Current: 50 A
Continuous Discharge: 100 A
Peak Discharge: 200 A for 30 seconds

Yes. Battle Born batteries can be connected in **series (up to 4 units for 48 V systems)** or **in parallel with no limit** for expanded capacity. Always use identical models and ensure all batteries are at the same voltage before connecting.

Yes. The built-in Battle Born BMS provides protection from over-voltage, under-voltage, overcurrent, short circuits, and temperature extremes. It also manages the internal heater to ensure safe charging and discharging in cold weather.

No, the BB10012H does not include Bluetooth. However, it can be paired with external battery monitors such as the Victron BMV-712 Smart for real-time tracking via Bluetooth.

Cycle Life: 3,000–5,000 cycles at 80% depth of discharge (more than 10 years of use in typical applications).
Warranty: Battle Born offers a **10-year limited warranty**, backed by U.S. technical support.

Battle Born Batteries are **assembled in the USA (Reno, Nevada)** using premium Grade-A LiFePO₄ cells and a proprietary BMS engineered for high-performance solar, RV, marine, and off-grid systems.

The BB10012H is ideal for **RV, marine, vanlife, overland, solar, and off-grid systems**, especially in **cold environments** where traditional lithium batteries cannot safely charge below freezing.

The BB10012H includes an **internal heating system** that enables charging below freezing temperatures, while the standard BB10012 does not. Both models share the same core performance and durability, but the “H” version is optimized for cold climates.

For long-term storage, charge the battery to approximately 50–70%, disconnect all loads, and store it in a dry, temperature-controlled location between 10 °C and 30 °C (50–86 °F). Recharge every 6 months to maintain optimal health.
