Description

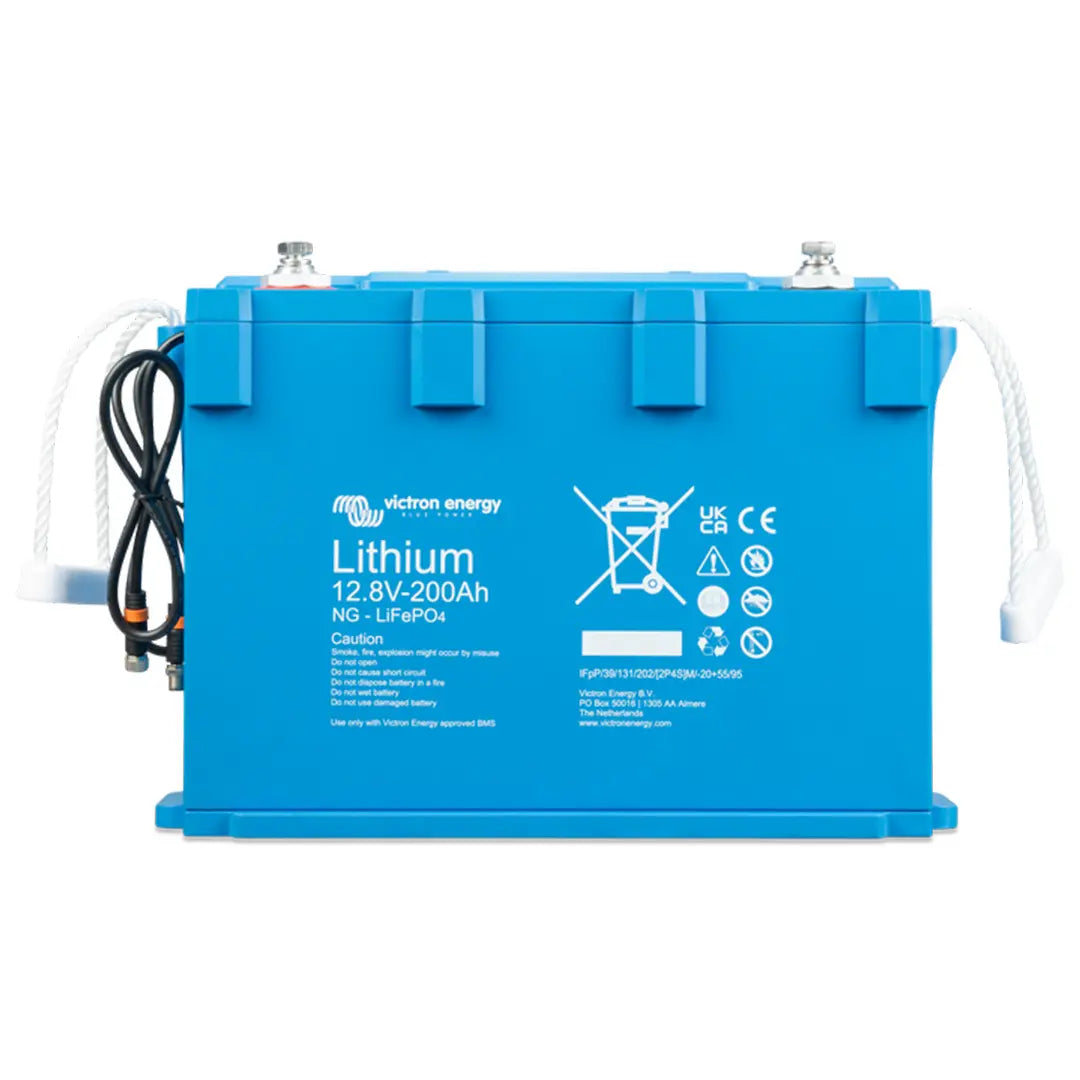

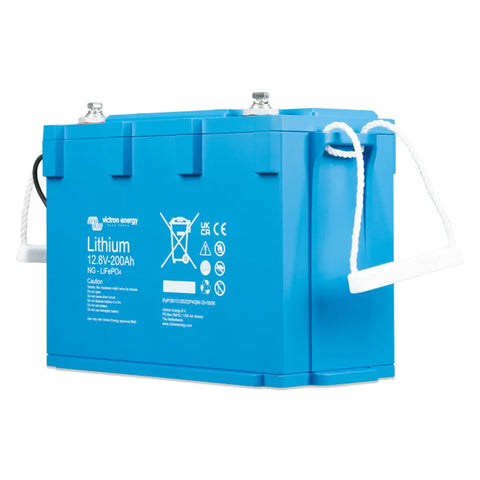

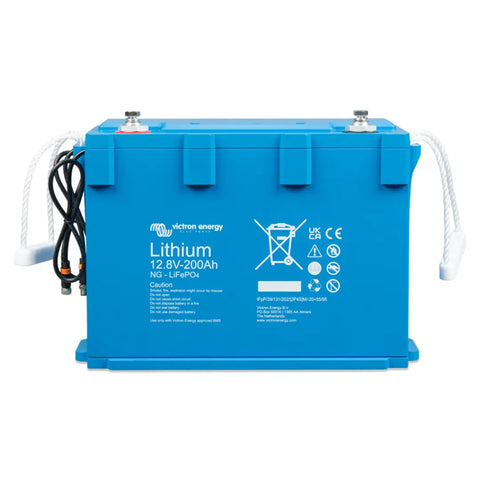

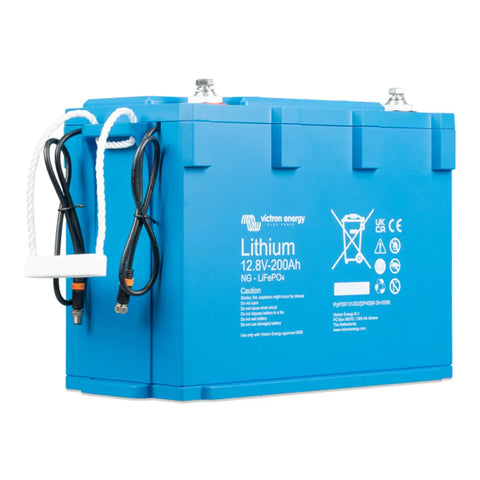

xIntroducing the Victron Energy LiFePO4 Battery 12.8V/200Ah NG
The Victron Energy LiFePO4 Battery 12.8V/200Ah NG sets a new benchmark in reliable, high-performance energy storage, tailored for off-grid solar systems. This Next Generation (NG) series battery comes packed with advanced features to ensure optimal performance and seamless integration with modern energy solutions.
VOLTAGE AND CAPACITY
- Nominal voltage: 12.8V
- Nominal capacity @ 25°C: 200Ah
- Nominal energy @ 25°C: 2560Wh
CYCLE LIFE (capacity ≥ 80% of nominal)
- 80% DoD: 2500 cycles
- 70% DoD: 3000 cycles
- 50% DoD: 5000 cycles
DISCHARGE
- Maximum continuous discharge current: 200A
- Recommended continuous discharge current: ≤100A
- End of discharge voltage: 11V
OPERATING CONDITIONS
- Operating temperature: Discharge: -20°C to +50°C, Charge: +5°C to +50°C
- Storage temperature: -40°C to +70°C
- Humidity (non-condensing): Max. 95%
- Protection class: IP65
CHARGE
- Charge voltage: Between 14V and 14.4V (recommended: 14.2V)
- Float voltage: 13.5V
- Maximum charge current: 200A
OTHER FEATURES
- Max storage time @ 25°C: 1 year
- BMS connection: M8 circular connector, length 50cm
- Power connection: M8 threaded inserts
- Dimensions: 34.1 x 23.5 x x 16 cm (13.4 x 9.3 x 6.3 in)
- Weight: 19 kg (41.9 lbs)
Why Choose LiFePO4?
Lithium-iron-phosphate (LiFePO4 or LFP) batteries are renowned for their safety and reliability. Compared to traditional lead-acid batteries, LFPs excel with their high energy efficiency, long cycle life, and minimal maintenance. This chemistry is perfect for off-grid solar, RVs, and marine applications where consistent, reliable power is crucial.
Efficient and Durable
Achieve up to 92% round-trip energy efficiency, surpassing the 80% typical of lead-acid batteries. This means more usable energy for your solar system. Additionally, LFP batteries save up to 70% in space and weight, making them a perfect fit for compact or mobile installations.
Advanced Monitoring with Bluetooth
Monitor real-time data including cell voltages and temperatures via Bluetooth for quick troubleshooting and optimized performance. Stay informed and keep your system running smoothly with the VictronConnect App.
Read the Datasheet for the Victron Energy LiFePO4 Battery 12.8V/200Ah NG (PDF)
Energize your life with Victron Batteries
Unveiled the Victron Energy Lithium NG Battery & BMS
- Discover the key upgrades from Smart to NG series.
- Experience seamless Bluetooth control and effortless setup.
Key Features
Monitoring, configuration and control
Battery Monitoring Made Easy with VictronConnect app
- • Battery charger
- • Battery status
- • Battery protection
- • Battery monitoring via local display and via the VictronConnect app
Monitor Performance
Bluetooth Connectivity
Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.
12.8V 200Ah Lithium NS Battery FAQ
This battery offers up to 5000 cycles at 50% Depth of Discharge (DoD), 3000 cycles at 70% DoD, and 2500 cycles at 80% DoD, ensuring reliable long-term use.
The maximum continuous discharge current for the 12.8V 200Ah NS battery is 200A, with a recommended continuous discharge of ≤100A for optimal performance.
The battery supports charging at a voltage between 14V and 14.4V (recommended 14.2V), with a float voltage of 13.5V and a maximum charge current of 200A.
Yes, this battery features integrated Bluetooth for real-time monitoring of cell voltages and temperatures using the VictronConnect App or through a GX device.
The 12.8V 200Ah NS battery measures 34.1 x 23.5 x 16 cm (13.4 x 9.3 x 6.3 in) and weighs approximately 19 kg (41.9 lbs).
The battery is rated IP65, offering high resistance to dust and protection from low-pressure water jets.
The Lithium NS Series builds on the success of the Smart Series with added read-outs for cell voltages and temperatures, increased single bank capacity up to 385kWh, and versatile mounting options with bracket and strap installations.
