Description

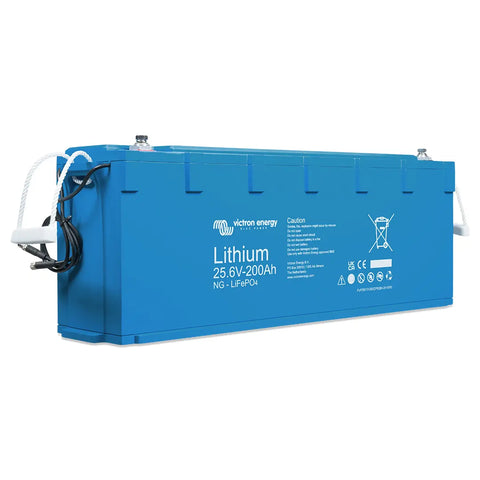

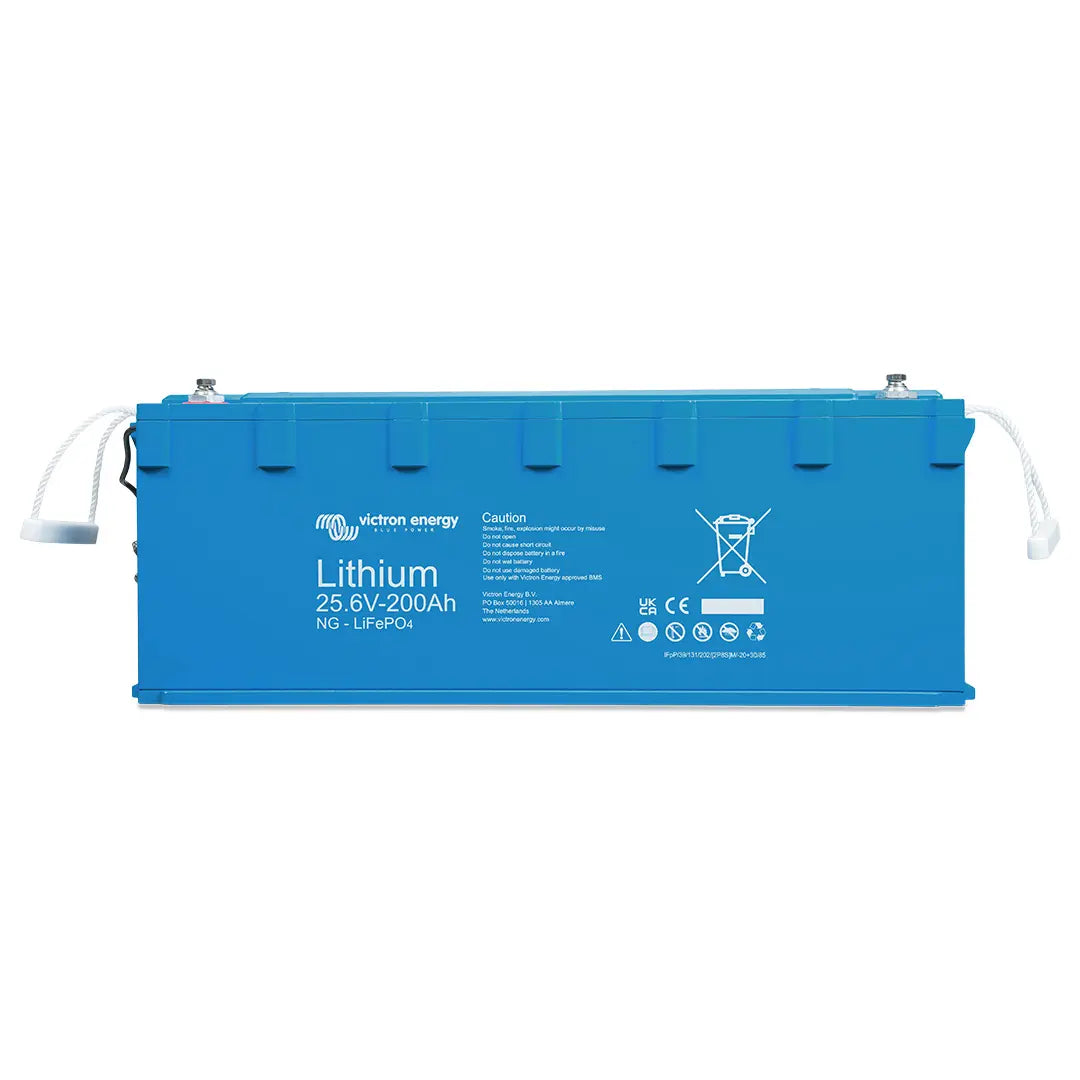

xIntroducing the Victron Energy LiFePO4 Battery 25.6V/200Ah NG
The Victron Energy LiFePO4 Battery 25.6V/200Ah NG offers cutting-edge energy storage technology, designed for off-grid solar systems with advanced performance features and easy integration.
VOLTAGE AND CAPACITY
- Nominal voltage: 25.6V
- Nominal capacity @ 25°C: 200Ah
- Nominal energy @ 25°C: 5120Wh
CYCLE LIFE (capacity ≥ 80% of nominal)
- 80% DoD: 2500 cycles
- 70% DoD: 3000 cycles
- 50% DoD: 5000 cycles
DISCHARGE
- Maximum continuous discharge current: 200A
- End of discharge voltage: 22.4V
OPERATING CONDITIONS
- Operating temperature: Discharge: -20°C to +50°C, Charge: +5°C to +50°C
- Storage temperature: -45°C to +70°C
- Humidity (non-condensing): Max. 95%
- Protection class: IP65
CHARGE
- Charge voltage: Between 28V and 28.8V (recommended: 28.4V)
- Float voltage: 27V
- Maximum charge current: 200A
OTHER FEATURES
- Max storage time @ 25°C: 1 year
- BMS connection: M8 circular connector, length 50cm
- Power connection: M8 threaded inserts
- Dimensions: 64.8 x 23.5 x 16.2 cm (25.5 x 9.3 x 6.4 in)
- Weight: 37 kg
Why Choose LiFePO4?
Lithium-iron-phosphate (LiFePO4 or LFP) batteries are known for safety and long life. Compared to lead-acid batteries, LFPs provide high energy efficiency and minimal maintenance. Ideal for solar, RV, and marine use where reliable power is essential.
Advanced Monitoring with Bluetooth
Monitor battery data including cell voltages and temperatures through the VictronConnect App for enhanced management and system performance.
Read the Datasheet for the Victron Energy LiFePO4 Battery 25.6V/200Ah NG (PDF)
Energize your life with Victron Batteries
Unveiled the Victron Energy Lithium NG Battery & BMS
- Discover the key upgrades from Smart to NG series.
- Experience seamless Bluetooth control and effortless setup.
Key Features
Monitoring, configuration and control
Battery Monitoring Made Easy with VictronConnect app
- • Battery charger
- • Battery status
- • Battery protection
- • Battery monitoring via local display and via the VictronConnect app
Monitor Performance
Bluetooth Connectivity
Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.
25.6V 200Ah Lithium NG Battery FAQ
This battery offers up to 5000 cycles at 50% Depth of Discharge (DoD), 3000 cycles at 70% DoD, and 2500 cycles at 80% DoD, ensuring reliable long-term use.
The maximum continuous discharge current for the 25.6V 200Ah NG battery is 200A, with a recommended continuous discharge of ≤100A for optimal performance.
The battery supports charging at a voltage between 28V and 28.8V (recommended 28.4V), with a float voltage of 27V and a maximum charge current of 200A.
Yes, this battery features integrated Bluetooth for real-time monitoring of cell voltages and temperatures using the VictronConnect App or through a GX device.
The 25.6V 200Ah NG battery measures 64.8 x 23.5 x 16.2 cm (25.5 x 9.3 x 6.4 in) and weighs approximately 37 kg (81.6 lbs).
The battery is rated IP65, offering high resistance to dust and protection from low-pressure water jets.

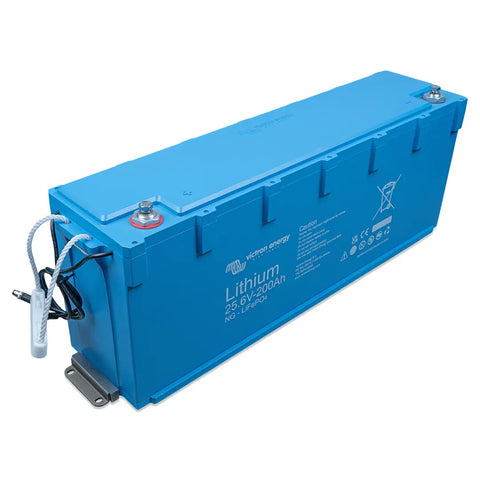

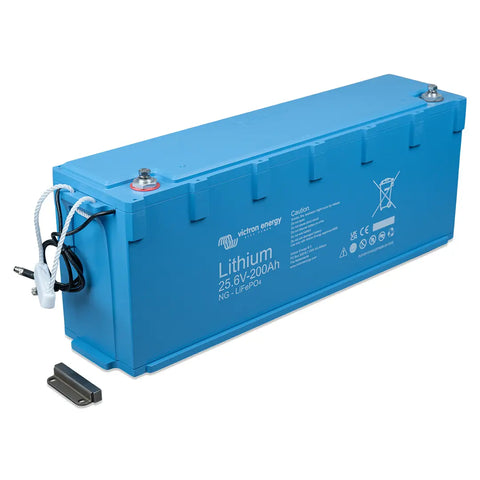

The Lithium NG Series includes significant improvements such as integrated cell voltage and temperature monitoring, support for up to 50 batteries per BMS, and easy mounting with bracket and strap options.
