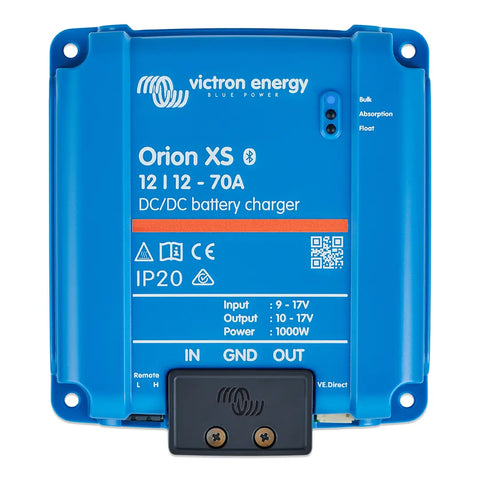

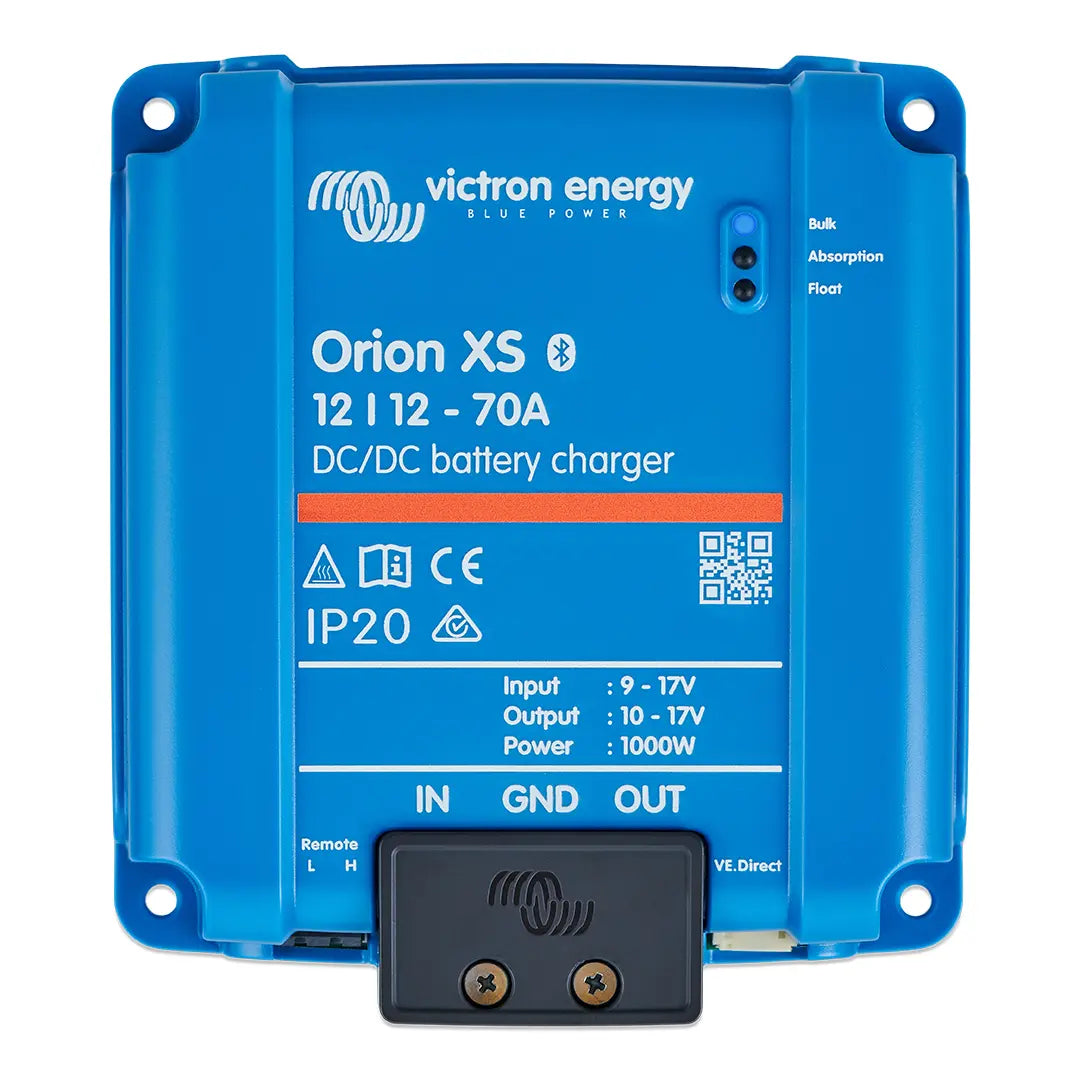

Victron Orion XS 12/12-70A DC-DC Battery Charger

The Victron Orion XS 12/12-70A DC-DC Battery Charger is a high-performance DC-DC charger engineered for dual-battery systems in RVs, camper vans, boats, and commercial vehicles. Delivering up to 70A of charging current and 1000W of continuous output power, it provides reliable, efficient charging for auxiliary batteries while protecting the starter battery in systems equipped with conventional or smart alternators.

Key Features

• Adjustable charging current from 1A to 70A
• Up to 1000W continuous output power at 40°C
• Maximum efficiency of 98.5%
• Compatible with smart alternators and Euro 5 / Euro 6 vehicles
• Automatic engine shutdown detection
• Adaptive 4-stage charging algorithm
• Eight pre-programmed battery settings
• Fully programmable with the VictronConnect App
• Built-in Bluetooth Smart connectivity
• VE.Smart Networking and VE.Direct communication
• Remote on/off capability
• Low-temperature shutdown and input undervoltage protection
• Overload, short-circuit and over-temperature protection
• Unlimited parallel operation for higher charging capacity
• Screw terminal connections for quick installation

Reliable Charging for Modern Dual Battery Systems

Engineered from the ground up, the Orion XS redefines adaptive DC-DC battery charging. Designed for vehicles with conventional or intelligent alternators, it compensates for voltage drops caused by long cable runs and ensures the auxiliary battery receives precise, controlled charging while protecting the starter battery from excessive discharge.

Integrated engine shutdown detection automatically activates the charger only when the alternator is supplying power, making it an excellent solution for modern Euro 5 and Euro 6 vehicles equipped with smart alternators.

Advanced Battery Management

The Orion XS features an adaptive 4-stage charging algorithm that automatically adjusts absorption time according to the battery's depth of discharge. It includes eight pre-programmed battery settings and fully programmable charging parameters through the VictronConnect App for maximum installation flexibility.

Bluetooth Monitoring & Remote Control

Built-in Bluetooth Smart allows wireless configuration, monitoring, diagnostics, and firmware updates using the VictronConnect App. The Orion XS also supports VE.Smart Networking for wireless battery voltage, temperature, and current sensing, while the VE.Direct port enables integration with Victron GX devices for advanced monitoring and remote diagnostics.

Comprehensive Protection

• Low-temperature shutdown for lithium battery protection
• Configurable input undervoltage protection
• Overload protection
• Short-circuit protection
• Automatic thermal protection with output derating
• Remote on/off input compatible with switches or Battery Management Systems (BMS)

Multiple Orion XS chargers can be connected in parallel to increase total charging capacity, making the system easily expandable for larger installations.

Technical Specifications

• Brand: Victron Energy
• Model: Orion XS 12/12-70A
• SKU: ORI121221040
• Product Type: DC-DC Battery Charger / Power Supply
• Input Voltage Range: 9–17V DC
• Output Voltage Range: 10–17V DC
• Adjustable Output Current: 1–70A
• Maximum Constant Short-Circuit Current: 70A
• Continuous Output Power: 1000W (up to 40°C)
• Maximum Efficiency: 98.5%
• Operating Temperature: -20°C to +60°C
• Communication: Bluetooth Smart, VE.Smart Networking, VE.Direct
• Maximum Cable Size: 4 AWG (25 mm²)
• DC Connection: Screw terminals
• Dimensions: 137.3 × 123.1 × 40 mm (5.4 × 4.85 × 1.6 in)
• Weight: 0.34 kg (0.74 lb)
• Protection Rating: IP20

Ideal Applications

• RVs and motorhomes
• Camper vans
• Marine dual-battery systems
• Commercial vehicles
• Service vehicles
• Dual-battery systems with smart alternators

Important: The Orion XS 12/12-70A has an IP20 protection rating and is intended for installation in a dry indoor environment.

Warranty: 5-Year Victron Energy Warranty.

Download the Victron Orion XS 12/12-70A Datasheet
