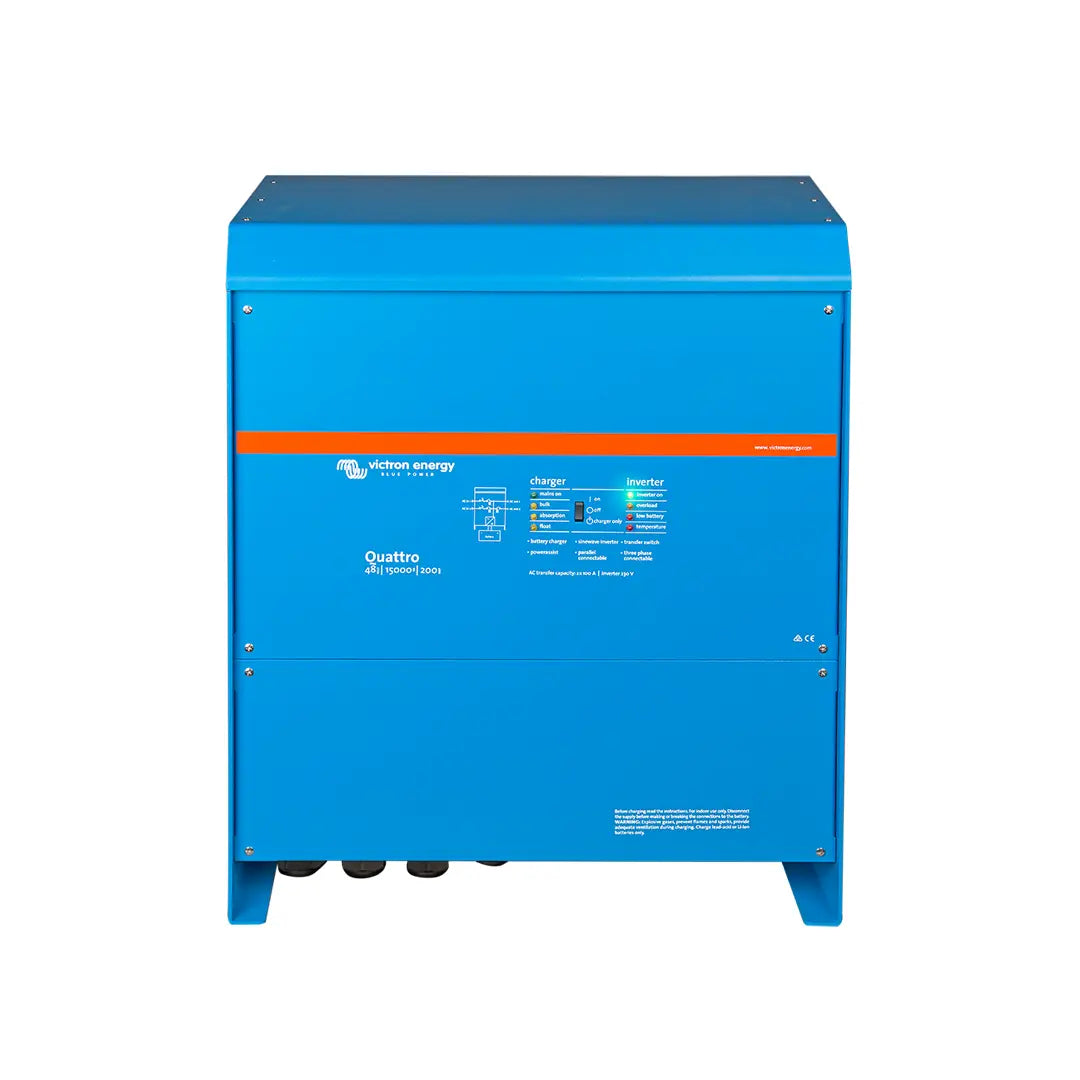

Victron Quattro 48/15000/200-100/100 277V VE.Bus Inverter/Charger – QUA483150100

Victron Quattro Inverter 48/15000/200-100/100 277V

The Pure Sine Wave Inverter - Quattro 48/15000/200-100/100 (QUA483150100) is a high-power Victron inverter/charger designed for demanding applications. With dual AC inputs, intelligent battery charging, and seamless no-break transfer, it ensures reliable power for both off-grid and grid-connected systems.

Key Features

• True sine wave inverter and advanced battery charger
• Two AC inputs with integrated transfer switch
• Two AC outputs with seamless (20 ms) no-break functionality
• Split-phase and three-phase capability (up to 180 kVA / 2400 A when paralleled)
• PowerControl – limits generator, shore, or grid current to prevent overload
• PowerAssist – supplements limited shore or generator power with battery support
• Works in off-grid, grid-tied, and backup power systems with PV integration
• Remote monitoring and configuration via Cerbo GX, VRM portal, and VictronConnect app

Technical Specifications

• DC system voltage: 48 V (range 38–66 V)
• Continuous output: 15,000 VA / 12,000 W at 25 °C
• Peak power: 25,000 W
• AC output: 277 VAC ±2%, 60 Hz ±0.1%
• Charger current: 200 A
• Absorption/Float/Storage: 57.6 V / 55.2 V / 52.8 V
• Max efficiency: 96%
• Zero-load power: 110 W (AES 75 W; Search 20 W)
• Dimensions: 572 × 488 × 344 mm
• Weight: 72 kg (160 lb)
• Enclosure: Aluminium, blue (RAL 5012), IP21

System Integration

The Quattro supports on-site and remote monitoring via Cerbo GX, VRM, and the VictronConnect app. It can be configured with VE.Bus Quick Configure, System Configurator, or DIP switches, making it flexible for both small and large installations.

Download Datasheet – Quattro 48/15000/200-100/100 277V (PDF)
