Switch Energy 12V 100Ah Heated Lithium LiFePO4 Battery with Bluetooth for RV, Marine and Off-Grid Solar
Switch Energy 12V 100Ah Heated Lithium LiFePO4 Battery with Bluetooth for RV, Marine and Off-Grid Solar

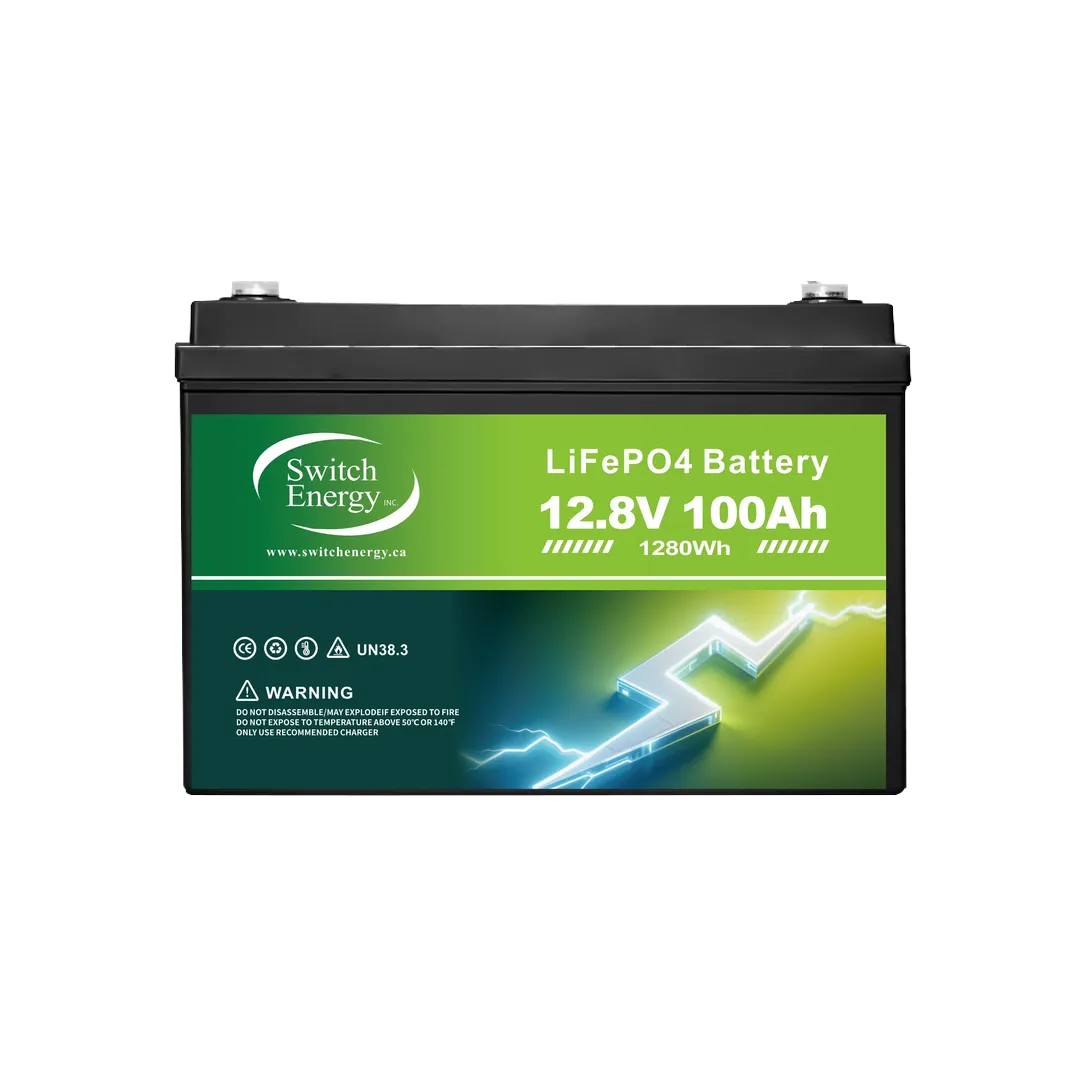

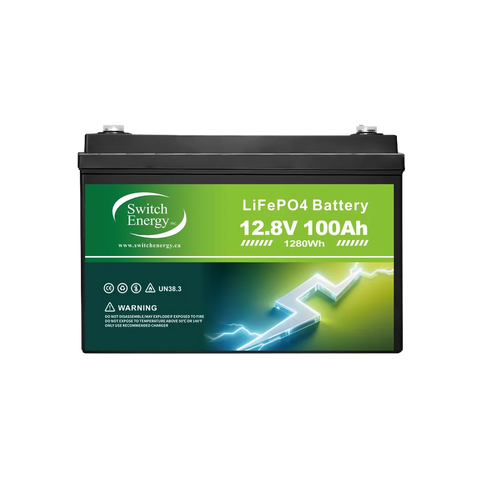

Switch Energy 12V 100Ah Lithium Battery – Heated & Smart Bluetooth LiFePO4 (M8)


Limited-time deal
-27% $512.46
List Price: $699.99
🍁 Canadian Assembled. 10-Year Warranty. Engineered for Cold Climates.
  • Battery Type: LiFePO₄ (Lithium Iron Phosphate)
  • Capacity: 100Ah (1.28kWh) | Voltage: 12.8V
  • Cycle Life: 3,000+ cycles @ 80% DOD
  • Built-in Heating: Automatic below 0°C
  • Smart BMS + Bluetooth Monitoring
  • Max Charge: 50A | Discharge: 50A (300A peak)
  • Protection: Over/under-voltage, temperature, short-circuit
  • Terminal: M8 | Case: ABS (IP65) | Weight: 10.5 kg
  • Dimensions: 33 × 17.2 × 22.3 cm (13.0″ × 6.8″ × 8.8″)
  • Ideal for: Off-grid solar, RVs & marine systems
SKU: SWE-12V100-HB
Product Type: Battery
$512.46
$699.99
$512.46
Subtotal: $512.46
Warehouse Pick-Up Available
Our pick-up schedule is Monday to Friday from 10AM - 4PM.
Secure Transaction
Canada Wide Shipping

Products online are in stockin in our warehouse

Orders generally ship out in 1-2 days.

Switch Energy 12V 100Ah Heated Lithium LiFePO4 Battery with Bluetooth for RV, Marine and Off-Grid Solar

Switch Energy

Switch Energy 12V 100Ah Lithium Battery – Heated & Smart Bluetooth LiFePO4 (M8)

$512.46
Switch Energy 12V 100Ah Heated Lithium LiFePO4 Battery with Bluetooth for RV, Marine and Off-Grid Solar

Switch Energy

Switch Energy 12V 100Ah Lithium Battery – Heated & Smart Bluetooth LiFePO4 (M8)

$512.46
Description
Description
x

Switch Energy 12V 100Ah Heated Lithium Battery with Bluetooth – SWE-12V100-HB

The Switch Energy 12V 100Ah LiFePO4 battery delivers reliable, compact, and intelligent power for off-grid solar, RV, marine, and backup energy systems. Built with a smart BMS, integrated Bluetooth monitoring, and automatic self-heating, it ensures dependable performance even in Canada’s harsh winter conditions.

Key Features:

  • Voltage: 12.8V | Capacity: 100Ah | Energy: 1280Wh
  • Terminals: M8 stud terminals (recommended torque: 80–100 in-lbs / 9–11 N·m)
  • Smart BMS: Advanced battery management system for protection and long cycle life
  • Bluetooth Monitoring: Monitor battery health and performance with the mobile app
  • Self-Heating: Automatic heating function for safe charging at low temperatures
  • Lightweight & Compact: Easy to install in RVs, boats, and off-grid systems
  • Long Cycle Life: Over 4000 cycles at 80% depth of discharge

Dimensions & Weight

  • Dimensions (L × W × H): 33.0 × 17.2 × 22.3 cm (12.99″ × 6.77″ × 8.80″)
  • Approx. Weight: 10.5 kg (≈ 23.1 lb)

Build Quality & Certifications

Switch Energy batteries are built with Grade A LiFePO4 cells and designed for durability in demanding environments. Each unit is tested to meet international safety standards, ensuring safe and long-lasting performance in energy storage applications.

Applications:

  • Off-Grid Solar Systems
  • RVs and Camper Vans
  • Marine & Boating
  • Backup Power for Homes & Industry

Why Choose Switch Energy?

Switch Energy batteries are engineered for Canadian conditions with integrated heating and smart monitoring. They offer reliable, year-round energy storage with advanced protection and premium LiFePO4 technology.

Download Spec Sheet (PDF)

Features
Features
x

Capacity

The Switch Energy 24V 170Ah battery is built using premium-grade lithium iron phosphate (LiFePO₄) cells, delivering reliable performance and high energy density in a compact design. It provides a full depth of discharge (up to 100%) and excellent efficiency to power a wide range of off-grid, RV, or backup applications. Adjustable charge and discharge settings allow users to optimize performance and extend battery lifespan.

Cycle Life

Designed for long-term reliability, the Switch Energy 24V battery offers over 3,000–5,000 full cycles before reaching 80% capacity, depending on depth of discharge and operating conditions. Even after years of use, it continues to provide strong usable capacity, ensuring dependable performance throughout its lifetime. With proper operation, the battery is engineered for well over 10 years of service.

Smart BMS

The integrated Battery Management System (BMS) provides real-time protection and intelligent control. It monitors voltage, current, temperature, and overall system health to ensure safe and balanced operation. The system includes automatic cutoffs for over-voltage, under-voltage, short circuit, and temperature extremes, maintaining maximum safety and performance across all conditions.

Temperature Performance

Equipped with an internal heating system, this battery can safely charge even in cold environments. The heater activates automatically below 0°C, drawing energy from the charging source to raise cell temperature before charging begins. This feature ensures reliable operation year-round, especially in Canadian winters or unheated installations.

Current Ratings

The BMS supports continuous discharge currents up to 150A, short bursts up to 200A for 60 seconds, and peak loads of 300A for 1 second. The maximum charge current is 125A for up to 60 seconds, with a recommended operating range of 50–75A for optimal longevity. Properly sized wiring and fuses are recommended to match the intended load.

Safety

Safety is at the core of Switch Energy’s design. Using LiFePO₄ chemistry, this battery offers excellent thermal stability, no off-gassing, and a low risk of fire or explosion. It features comprehensive electronic protection against short circuit, overcurrent, and temperature extremes. External fuses and proper installation practices are still recommended for maximum system protection.

Size & Weight

Compact and powerful, the Switch Energy 24V 170Ah battery is housed in a durable steel case with removable handles for easy installation. Its optimized footprint allows flexible mounting options, even in tight enclosures. The powder-coated exterior adds corrosion resistance, while the robust internal structure ensures mechanical stability in mobile or off-grid systems.

Series and Parallel Configurations

This model supports configurations up to 2 in series (2S) and 4 in parallel (4P), allowing system builders to scale to 48V or expand capacity as needed. For best results, only identical models with matching voltage and state of charge should be connected together.

Tech Specs
Tech Specs
x

Switch Energy 24V 170Ah Smart Heated LiFePO₄ Battery

The Switch Energy 24V 170Ah battery provides 4.4 kWh of dependable power with integrated heating and advanced BMS protection. Engineered for reliability in Canadian conditions, it’s ideal for off-grid, RV, marine, and backup energy systems.


Technical Specifications


Specification Details
Battery Type Lithium Iron Phosphate (LiFePO₄)
Nominal Voltage 25.6 V
Maximum Voltage 29.2 V
Capacity 170 Ah (4.4 kWh)
Cycle Life 3,000 – 5,000 cycles (@80% DoD)
Continuous Discharge Current 150 A
Peak Discharge Current 300 A (1 sec)
Maximum Charge Current 125 A (60 sec)
Recommended Charge Current 50 – 75 A
Short Circuit Protection 1120 A
Integrated Heating Automatic activation below 0 °C (uses charging source only)
BMS Type Smart BMS with temperature, voltage, and current protection
Bluetooth Monitoring Compatible via mobile app
Case Material Powder-Coated Steel (black finish)
Dimensions (L × W × H) 42.0 × 20.3 × 29.0 cm (16.54″ × 8.0″ × 11.42″)
Weight 34.5 kg (76 lbs)
Series / Parallel Config. Up to 2 in series and 4 in parallel (2S / 4P)
Operating Temperature Range −20 °C to +60 °C (−4 °F to 140 °F)
Applications RV, Marine, Off-Grid, Residential Backup, Industrial
Warranty 3-Year Full Replacement (handled directly by CDN Solar)
Warranty
Warranty
x

Warranty & Support

The battery includes a 3-year warranty, handled directly through CDN Solar. We are the authorized warranty center, so if any issue were to arise, we would test the unit on-site here and provide a full replacement if required. This battery uses the same grade of lithium cells as top brands such as Battle Born, offering excellent reliability, long cycle life, and consistent performance at a more economical price point.

Canada’s Smartest 12V Heated LiFePO₄ Battery

Same top-tier lithium cells as leading brands — reliable, long-lasting power at a better price.

CUSTOMERS ALSO VIEWED THESE ITEMS

JA Solar 500W All-Black Solar Panel – JAM60D41 LB
$179.99
$229.00
$179.99
220W Lumera Bifacial Solar Panel Canadian Made
$299.27
$399.99
$299.27
JA Solar JAM54D41-445/LB 445W Bifacial TOPCon N-Type Solar Panel
$249.00
$249.00
$249.00
JA Solar 445W Bifacial N-Type TOPCon Solar Panel – Pallet of 36 Units
$6,299.64
$7,164.00
$6,299.64
Thornova TS‑BBT54(500)‑G11 – 500W N-Type Bifacial Single Glass Solar Panel
$199.99
$215.00
$199.99
Thornova TS‑BBT54(500)‑G11 – 500W N-Type Bifacial Single Glass Solar Panel – Pallet of 31
$5,889.69
$6,665.00
$5,889.69
Longi LR5-54HBD-410M 410W Solar Panels – 36 Panel Pallet
$9,000.00
$9,999.00
$9,000.00
JA Solar JAM54S31-405MR 405W Solar Panels – 36 Panel Pallet
$8,064.00
$8,064.00
Switch Energy 12V 100Ah Heated LiFePO4 Battery FAQ | Canada

FAQ Icon Switch Energy 12V 100Ah Heated LiFePO₄ Battery FAQ

Dimensions: 33 × 17.2 × 22.3 cm (12.99 × 6.77 × 8.8 in)
Weight: 10.5 kg (23 lbs)

The internal heating activates automatically when temperatures drop below 0°C. It warms the cells to a safe charging level, ensuring reliable performance even in Canadian winters.

Yes. The built-in Smart BMS supports Bluetooth connectivity, allowing you to track voltage, temperature, state of charge, and cycle count using the mobile app.

Recommended Charge Current: 20A
Maximum Charge Current: 50A
Continuous Discharge: 50A | Peak: 300A (5–15ms)

Yes. You can connect up to four Switch Energy 12V batteries in series (for 24V or 48V systems) or in parallel for greater capacity, depending on your solar or RV setup.

The advanced BMS protects against over-voltage, under-voltage, overcurrent, temperature extremes, and short circuits. It also provides active cell balancing for long-term stability.

The Switch Energy 12V 100Ah LiFePO₄ battery delivers over 3,000 cycles at 80% depth of discharge and includes a 10-year limited warranty.

Our batteries are designed in Canada for local conditions and built using premium-grade LiFePO₄ cells and smart protection systems to ensure reliability in all climates.

Ideal for solar energy storage, RVs, marine use, camper vans, and off-grid power systems. It’s the perfect heated 12V LiFePO₄ battery for Canada’s cold-weather environments.
