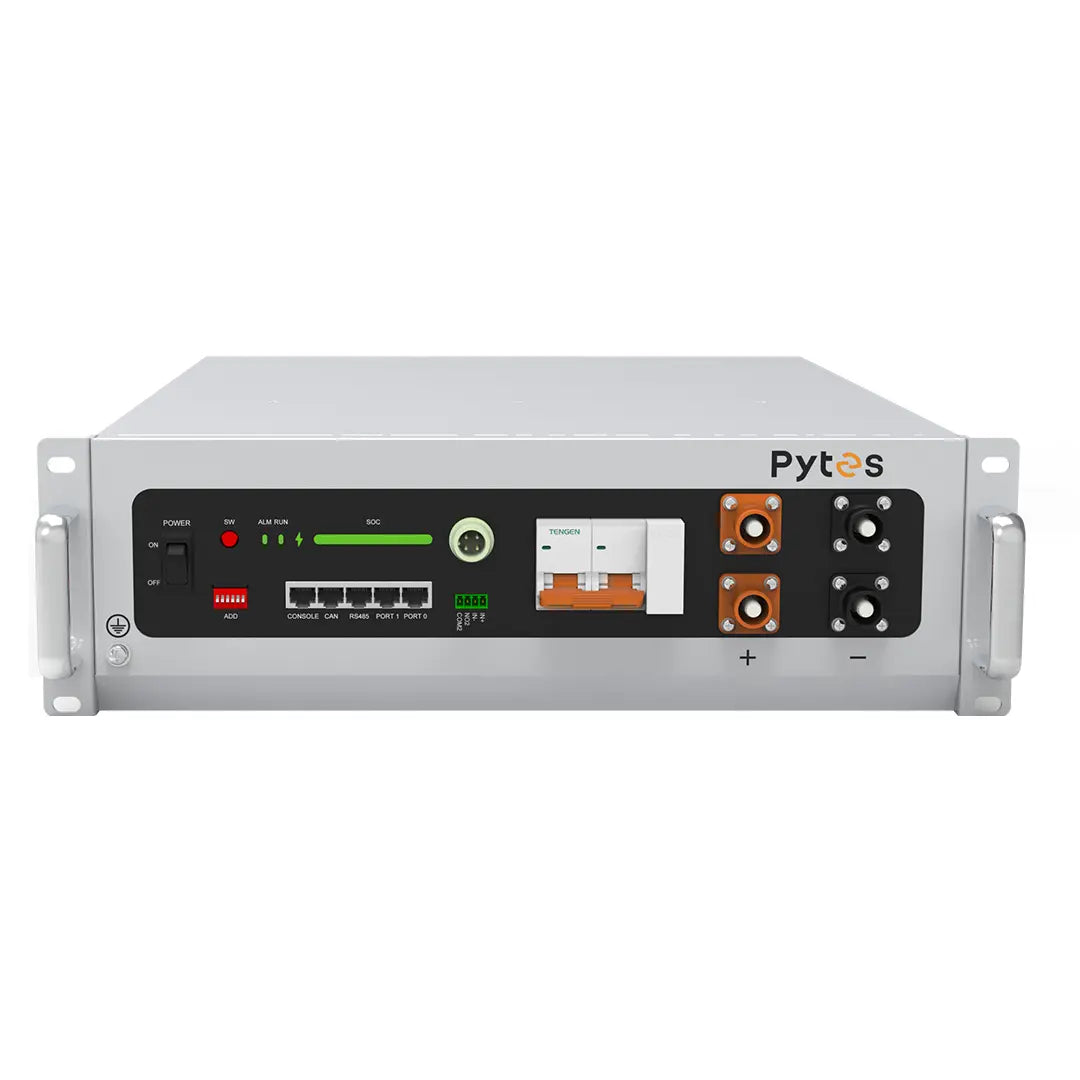

Rack-mount Pytes V5 Plus lithium battery built for residential and off-grid solar systems, offering long cycle life, inverter compatibility, and modular expansion

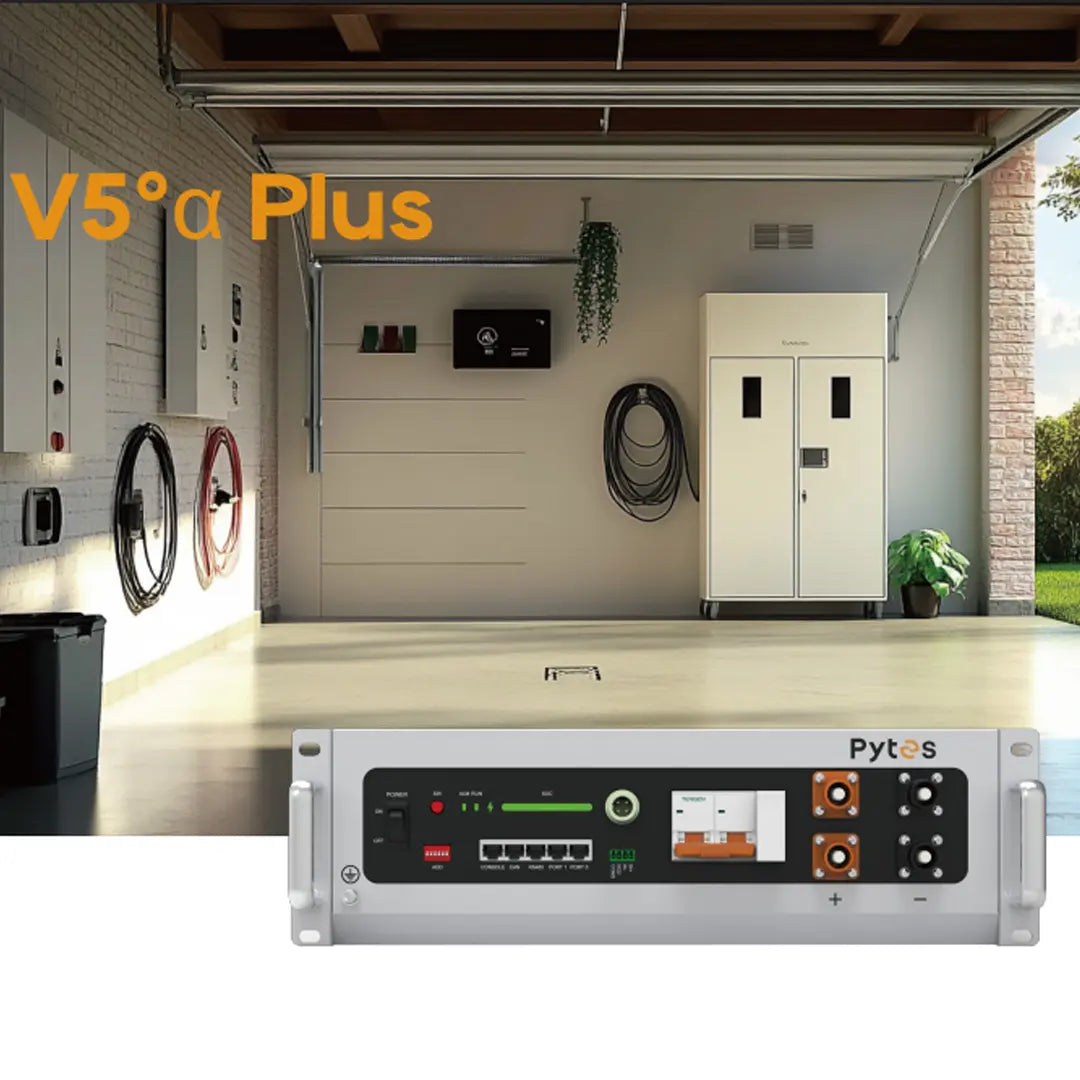

Pytes V5°α Plus 5.12kWh 51.2V LiFePO₄ solar battery installed in a residential garage energy storage system

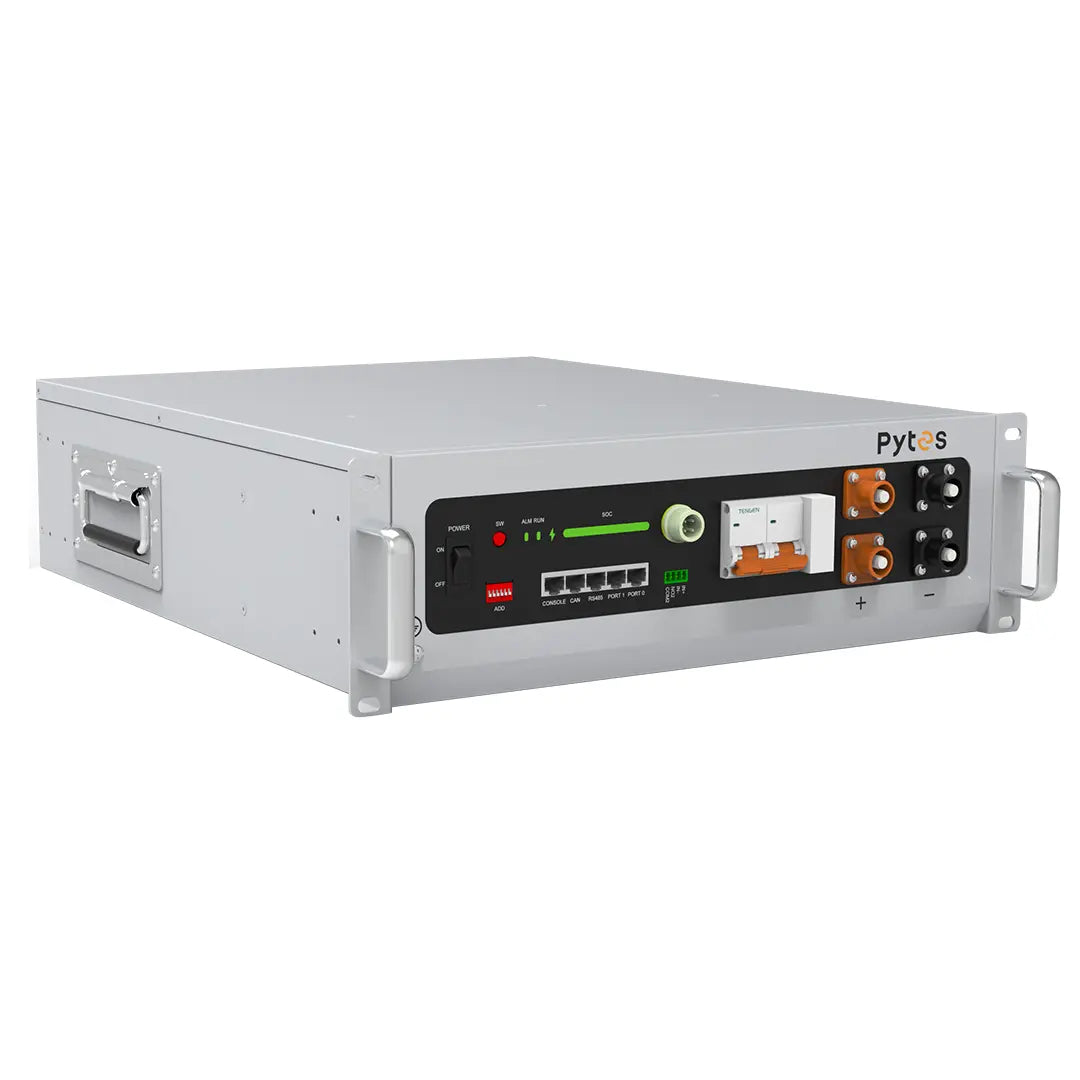

The Pytes V5 Plus is a 5.12kWh rack-mount LiFePO₄ battery designed for residential solar and backup power. Scalable, long-life, and compatible with leading hybrid and off-grid inverters

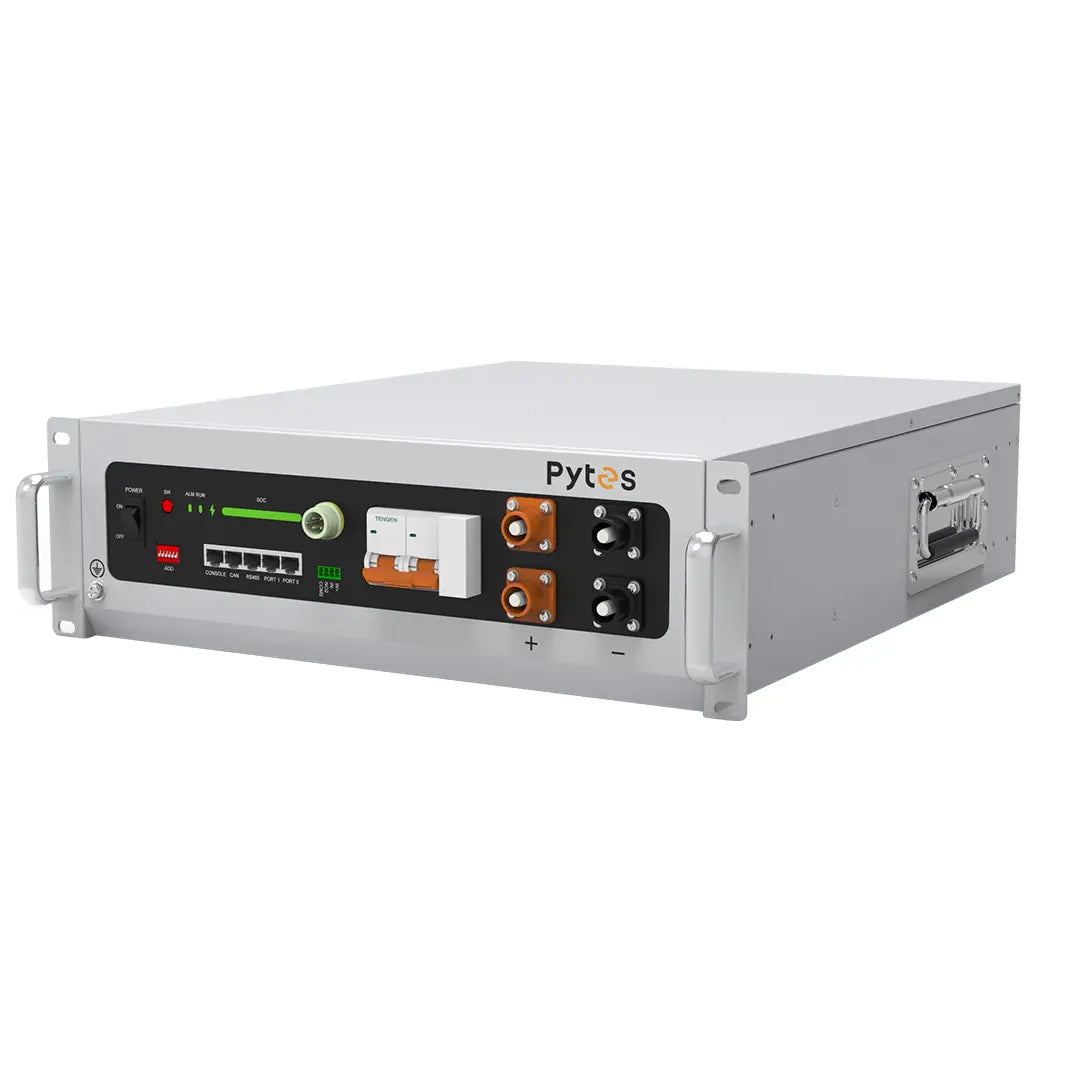

Front panel view of the Pytes V5 Plus solar battery showing state-of-charge indicators, CAN and RS485 communication ports, DC breaker, and power terminals
Rack-mount Pytes V5 Plus lithium battery built for residential and off-grid solar systems, offering long cycle life, inverter compatibility, and modular expansion
Pytes V5°α Plus 5.12kWh 51.2V LiFePO₄ solar battery installed in a residential garage energy storage system
The Pytes V5 Plus is a 5.12kWh rack-mount LiFePO₄ battery designed for residential solar and backup power. Scalable, long-life, and compatible with leading hybrid and off-grid inverters
Front panel view of the Pytes V5 Plus solar battery showing state-of-charge indicators, CAN and RS485 communication ports, DC breaker, and power terminals

Pytes V5 Plus 5.12kWh 51.2V Solar Battery with Wi-Fi Remote Monitoring


Limited-time deal
-41% $2,200.00
List Price: $3,724.74

It's Time to Power a Better Life. Home battery energy storage solution you can rely on

CDN Solar
★★★★★ 4.9 Google Reviews
Key Features:
  • 5.12 kWh Scalable Storage: LiFePO₄ battery expandable up to 16 units per group.
  • Long-Life LiFePO₄ Chemistry: 6,000+ cycles with high safety and daily reliability.
  • Smart Monitoring: Built-in Wi-Fi and BMS for real-time monitoring and remote updates.
  • Wide Inverter Compatibility: CAN / RS485 support for leading hybrid and off-grid inverters.
  • Certified for Canada: UL1973, UL9540A, UN38.3, CSA compliant.
  • 10-Year Warranty: Manufacturer-backed long-term protection.
  • Prefer a non-Wi-Fi version? View the Pytes V5 (Non-Wi-Fi)
📦 Wholesale & Bulk Pricing Available
Special pricing for installers & dealers on bulk orders.
Contact us to request wholesale pricing
SKU: PytesV5LFP-WiFi
Product Type: Battery
$2,200.00
$3,724.74
$2,200.00
Subtotal: $2,200.00
Warehouse Pick-Up Available
Our pick-up schedule is Monday to Friday from 10AM - 4PM.
Secure Transaction
Canada Wide Shipping

Products online are in stockin in our warehouse

Orders generally ship out in 1-2 days.

Rack-mount Pytes V5 Plus lithium battery built for residential and off-grid solar systems, offering long cycle life, inverter compatibility, and modular expansion

Pytes

Pytes V5 Plus 5.12kWh 51.2V Solar Battery with Wi-Fi Remote Monitoring

$2,200.00
Rack-mount Pytes V5 Plus lithium battery built for residential and off-grid solar systems, offering long cycle life, inverter compatibility, and modular expansion
Pytes V5°α Plus 5.12kWh 51.2V LiFePO₄ solar battery installed in a residential garage energy storage system
The Pytes V5 Plus is a 5.12kWh rack-mount LiFePO₄ battery designed for residential solar and backup power. Scalable, long-life, and compatible with leading hybrid and off-grid inverters
Front panel view of the Pytes V5 Plus solar battery showing state-of-charge indicators, CAN and RS485 communication ports, DC breaker, and power terminals

Pytes

Pytes V5 Plus 5.12kWh 51.2V Solar Battery with Wi-Fi Remote Monitoring

$2,200.00
Description
Description
x

Pytes V5 Plus 5.12kWh 51.2V 100Ah LiFePO₄ Solar Battery with Wi-Fi Monitoring

Experience reliable and scalable energy storage with the Pytes V5 Plus. Built with advanced Lithium Iron Phosphate (LiFePO₄) technology, the V5 Plus delivers long cycle life, enhanced safety, and consistent performance for residential solar, backup power, and off-grid applications.

The V5 Plus enhances the proven Pytes V5 platform with built-in Wi-Fi remote monitoring, allowing users and installers to track battery performance and receive firmware updates remotely. This reduces on-site service needs and improves long-term system management.

Designed for clean 19" rack-mount installations, the Pytes V5 Plus integrates seamlessly with leading hybrid and off-grid inverters through CAN and RS485 communication. Its robust, installer-grade design makes it a dependable solution for modern solar energy systems.

Key Highlights

  • Built-In Wi-Fi Monitoring: Remote performance monitoring and firmware upgrades
  • Energy Capacity: 5.12kWh (100Ah at 51.2V)
  • Battery Chemistry: Lithium Iron Phosphate (LiFePO₄) for superior safety and stability
  • Long Cycle Life: Rated for over 6,000 cycles under typical operating conditions
  • Installation Type: 19" rack-mount design for professional, space-efficient installs
  • System Compatibility: Works with many leading hybrid and off-grid inverters

The Pytes V5 Plus is an ideal choice for homeowners and installers who want a modern, connected battery solution with long-term reliability and scalable energy storage.


Download Pytes V5 Plus Datasheet – Technical Specifications

Download Pytes V5 Series User Manual

Features
Features
x
Pytes V5 Plus LiFePO₄ Battery

Pytes V5 Plus LiFePO₄ Solar Battery

Discover the Pytes V5 Plus, an advanced rack-mount lithium iron phosphate (LiFePO₄) battery designed for modern solar energy storage and backup power systems. The V5 Plus builds on the proven V5 platform with enhanced connectivity, monitoring, and peak performance.


Feature Description
Built-In Wi-Fi Monitoring Monitor battery performance remotely and support remote firmware upgrades, reducing on-site service needs.
LiFePO₄ Battery Chemistry Lithium iron phosphate technology provides enhanced safety, thermal stability, and long service life.
High Peak Power Capability Supports higher short-duration peak charge and discharge currents for demanding loads and startup surges.
Long Cycle Life Rated for ≥ 6,000 cycles, making it ideal for daily solar self-consumption and long-term use.
Smart BMS Protection Advanced battery management system continuously monitors voltage, temperature, and current for safe operation.
Cold-Weather Support Integrated heating functionality helps maintain performance in cold climates.
Scalable Energy Storage Parallel up to 16 batteries per group to expand capacity as energy needs grow.
Warranty Backed by a 10-year manufacturer warranty for long-term peace of mind.
Tech Specs
Tech Specs
x
Pytes V5 Plus LiFePO₄ Battery – Technical Specifications

Pytes V5 Plus 5.12kWh 51.2V LiFePO₄ Battery – Technical Specifications

Review the technical specifications of the Pytes V5 Plus, a rack-mount lithium iron phosphate (LiFePO₄) battery designed for residential solar energy storage, backup power, and scalable energy systems.

Specification Details
Battery Chemistry Lithium Iron Phosphate (LiFePO₄)
Nominal Voltage 51.2V
Voltage Range 47.5V – 57.6V
Nominal Capacity 100Ah
Nominal Energy 5.12kWh
Recommended / Max Continuous Current 75A (recommended & max continuous)
Peak Charge / Discharge Current Up to 200A (15 seconds)
Round-Trip Efficiency ≥ 95%
Cycle Life ≥ 6,000 cycles
Warranty 10 years
Communication Protocol CAN / RS485
Wi-Fi Connectivity Remote monitoring and firmware upgrades
Heating System Integrated heating pad for cold-weather operation
Operating Temperature -18°C to 50°C (-0.4°F to 122°F, with heating support)
Installation Type 19" Rack-Mount (3.2U)
Dimensions (L × W × H) 48.4 × 57.8 × 14.0 cm (19.05 × 22.76 × 5.51 in)
Weight 100 lbs (45.34 kg)
Scalability Up to 16 batteries per group (≈81.9kWh); multiple groups supported with hub

See the Pytes V5 & V5° α Plus in Action

  • Built for true energy freedom: Discover how the Pytes V5 & V5° α Plus deliver lightweight, expandable 48V LiFePO4 power — perfect for homes, RVs, boats, and off-grid systems.
  • Safe, smart & plug-and-play: UL-certified, automotive-grade durability with advanced BMS and seamless Victron compatibility for worry-free performance anywhere life takes you.
The Pytes V5 Plus is a 5.12kWh rack-mount LiFePO₄ battery designed for residential solar and backup power. Scalable, long-life, and compatible with leading hybrid and off-grid inverters

All-In-One Solution

Why PYTES is the Right Choice?

  • Proven Pytes V5 battery platform trusted for residential solar and backup power applications.
  • Designed for homes, off-grid systems, and small commercial energy storage installations.
  • Built with LiFePO₄ battery chemistry and advanced BMS for long-term safety and reliability.
  • Rack-mount, compact design enables quick installation and clean integration into home energy systems.

GET THE PYTES PEACE OF MIND

A 10-year warranty - Recognized for Exceptional Quality, Performance, Reliability and Design.

PYTES COLLECTION

Pytes V5 Plus 5.12kWh 51.2V Solar Battery with Wi-Fi Remote Monitoring
$2,200.00
$3,724.74
$2,200.00
Pytes V5 5.12kWh 100Ah 48V Heated Lithium LiFePO4 Solar Battery
$2,200.00
$3,724.74
$2,200.00
Pytes E-Box 48100R - 48V 100Ah Lithium LiFePO4 Solar Battery
$1,895.00
$2,850.00
$1,895.00
Pytes E-Box 48100R - 48V 400Ah Lithium LiFePO4 Battery Bank
$11,844.46
$13,875.98
$11,844.46
Pytes Brackets for V5 Battery
$99.00
$80.00
$99.00
Pytes Brackets for 48100R Battery
$144.26
$180.00
$144.26
Pytes Battery To Inverter Power Cables
$86.56
$86.56
Pytes E-Box 48100R - 48V 200Ah Lithium LiFePO4 Battery Bank
$5,624.09
$6,587.92
$5,624.09

FAQ Icon Pytes V5°α Plus Battery – Frequently Asked Questions

The Pytes V5°α Plus is a 51.2V 5.12 kWh LiFePO₄ (LFP) battery designed for residential, commercial, RV, marine, and off-grid energy storage systems. It delivers high safety, long cycle life, and flexible scalability.

Each unit stores 5.12 kWh of usable energy with a nominal capacity of 100Ah at 51.2V, making it ideal for modular energy storage systems.

Yes. Up to 16 batteries (81.92 kWh) can be connected in parallel per group, and up to 6 groups (491.52 kWh) can be combined using a hub for large systems.

Dimensions: 48.4 × 57.8 × 14 cm (19.05 × 22.76 × 5.51 in)
Weight: 45.3 kg (100 lb)

Yes. The battery operates from -10°C to 50°C and includes an optional self-heating system that enables charging in cold conditions, making it well-suited for Canadian winters.

Absolutely. It features LiFePO₄ chemistry, an advanced BMS with multiple protection layers, an integrated DC breaker, and certifications including UL 1973, UL 9540, UL 9540A, UN38.3, CEC, and SGIP.

The battery supports CAN and RS485 communication and is compatible with many leading inverter brands, including Victron and other major ESS manufacturers.

The Pytes V5°α Plus includes a 10-year manufacturer warranty and is rated for ≥6,000 cycles with over 95% round-trip efficiency.
