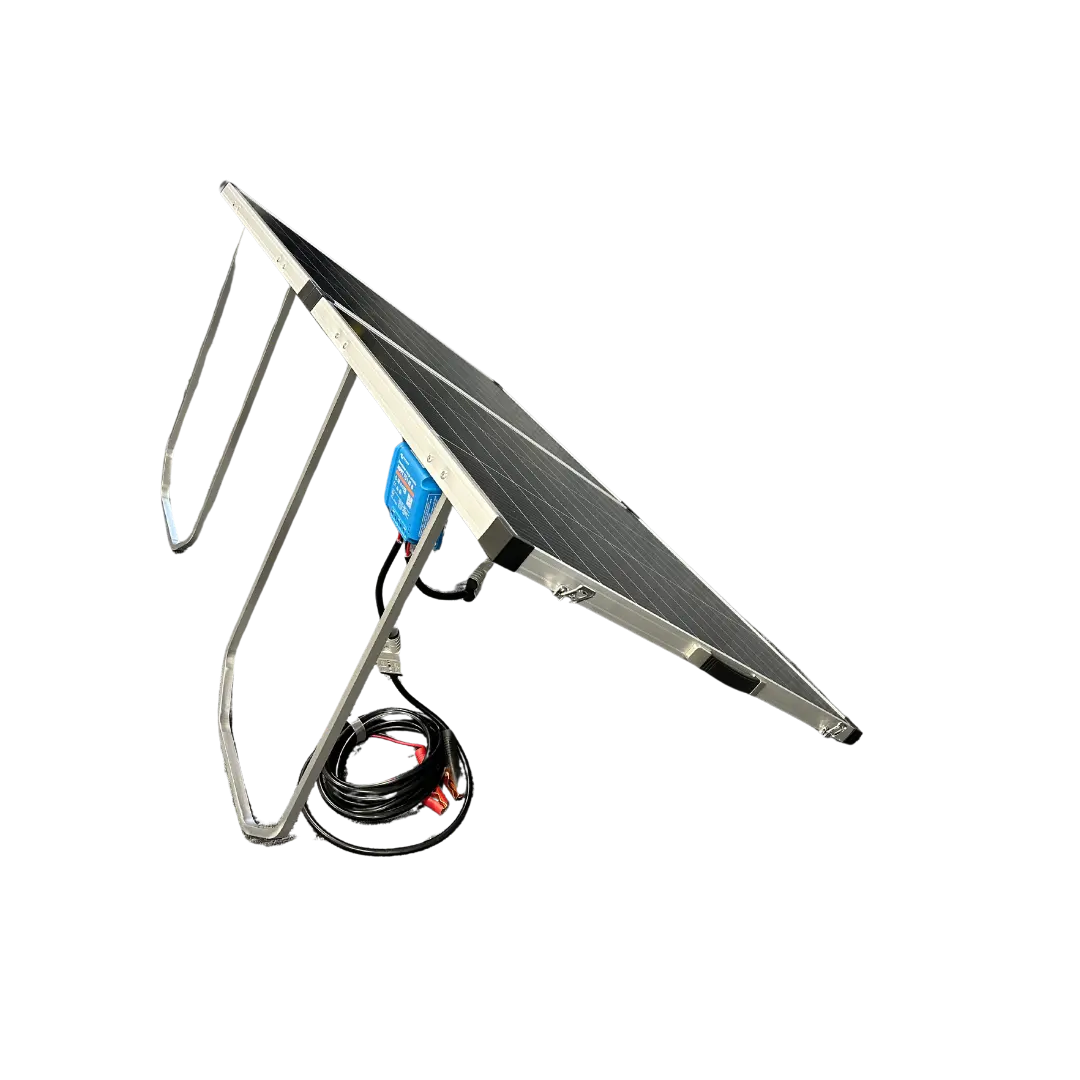

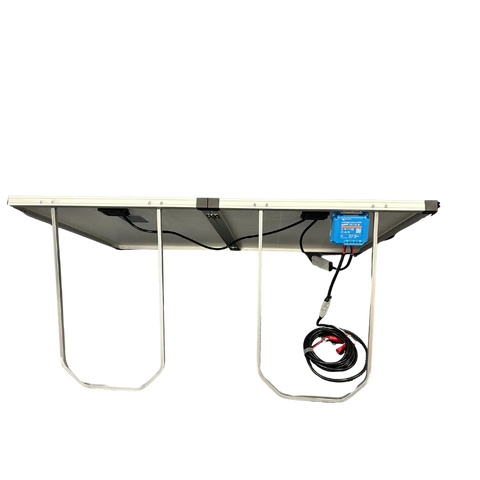

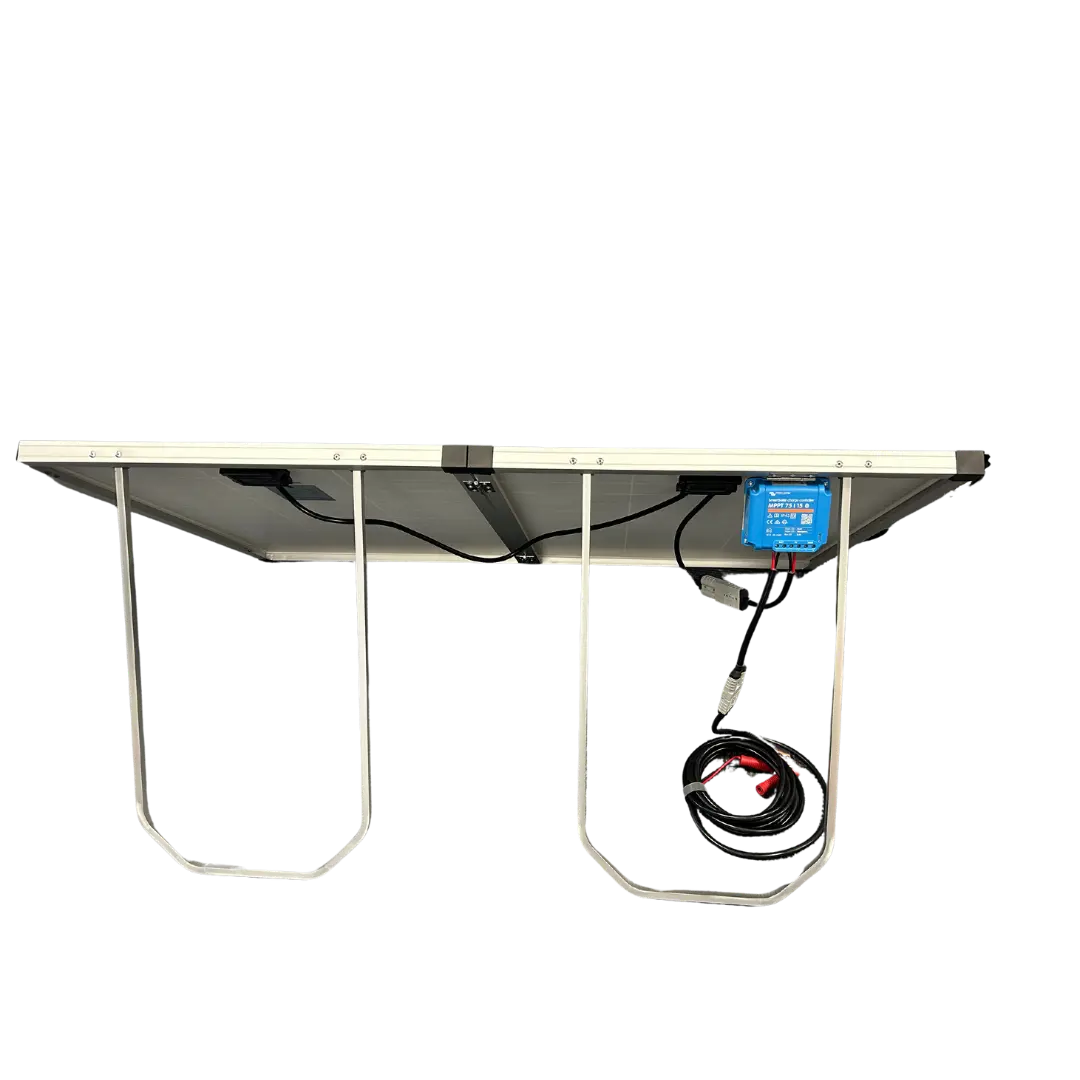

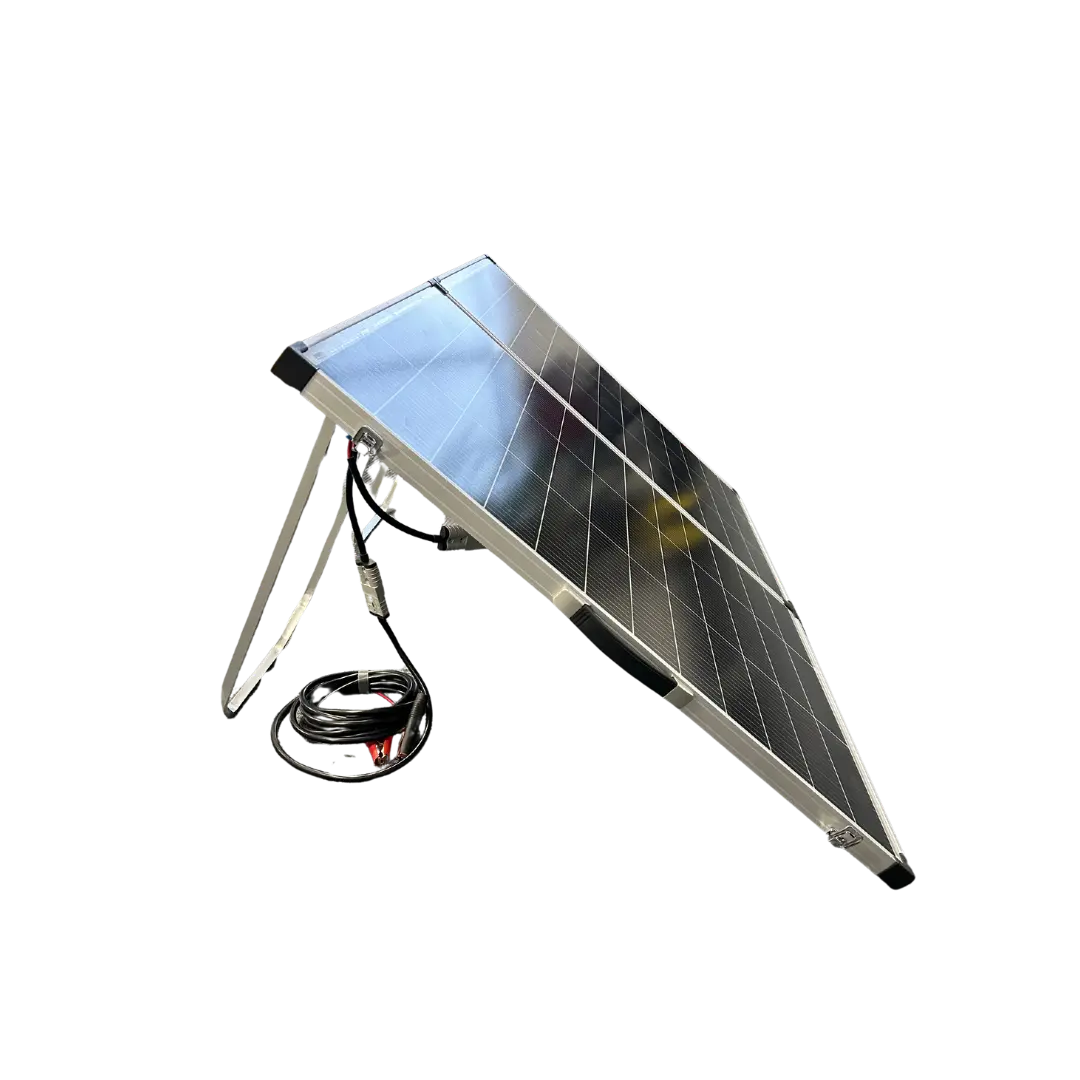

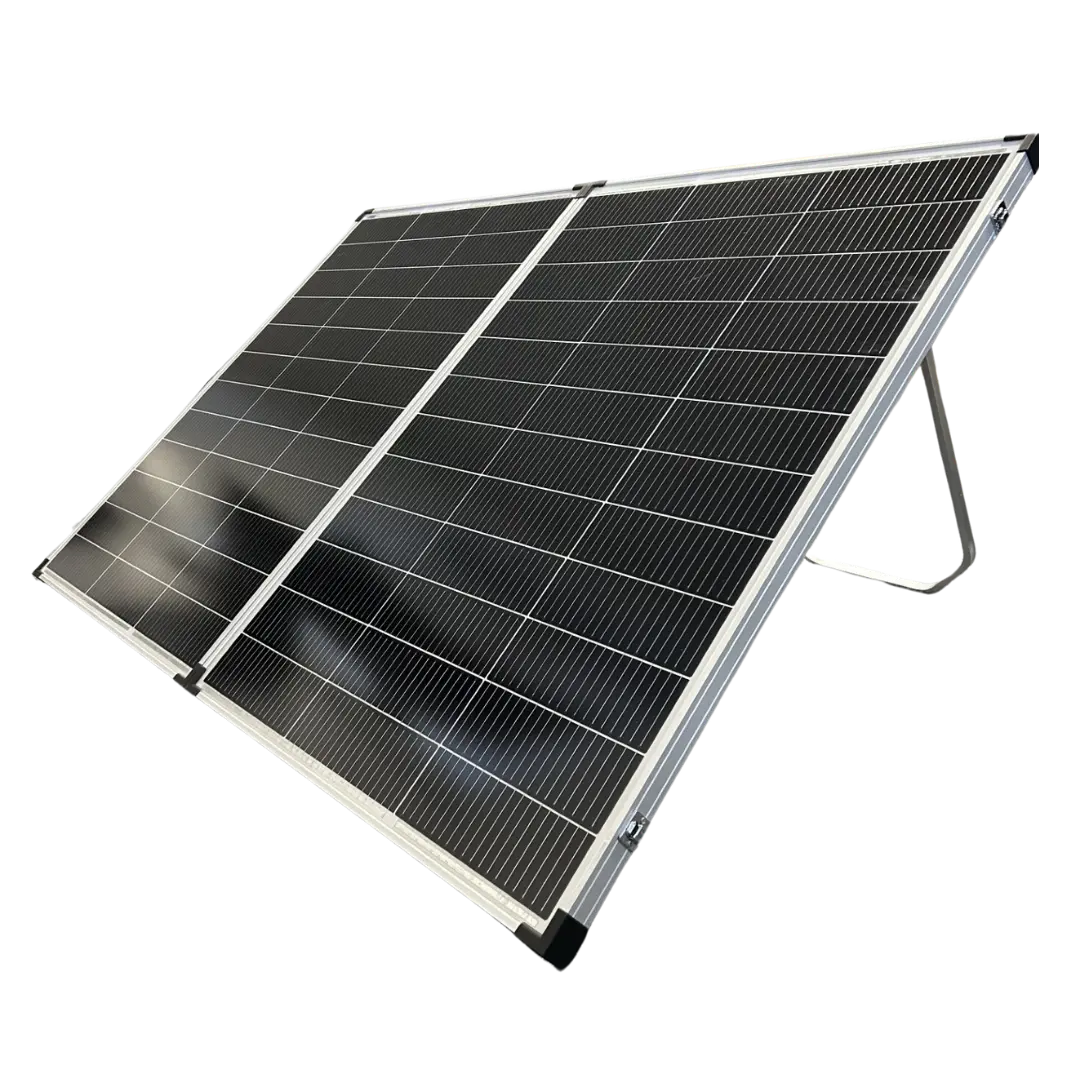

Charge up your battery using this 220Watt folding solar panel kit and the sun’s energy. It is very easy and quick to connect the panels to your battery (not included). It’s an excellent system to use with RV’s, boats, vans, golf carts and for camping.
The kit comes with solar modules and racks, a cable, and Victron SmartSolar MPPT charge controller. When you can’t plug into regular electricity, you will want to use this kit. The folding panel kit also includes a carrying bag which makes the kit very portable.
1. High-efficiency Mono crystalline modules provide the best power output performance and portable performance.
2. Smart design in folding and bracing makes it easy to carry and operate.
3. Output voltage adjustable between 18V and 36V, alternative to 12V and 24V systems.
4. Intelligent charging controller can identify 12V or 24V system voltage automatically.
Includes:
- Protective bag
- Solar Modules
- Stand
- Cables
- Victron 75/15 Smart Solar MPPT charge controller
Discover the ultimate energy solution with the 220W Folding Solar Panel Kit. Designed for portability and efficiency, this advanced system includes high-performance components to meet diverse power needs. Perfect for RVs, boats, vans, golf carts, and camping.
Component | Description |
---|---|
Solar Modules | 2 x 110W Monocrystalline panels, delivering a total of 220W power output. |
MPPT Smart Solar Controller | Victron 75/15 MPPT Smart Solar Controller, 15A for optimal power management. |
Bracing/Stand | Aluminum Rack with adjustable angles for easy setup and portability. |
Junction Box | IP65-rated for protection against water and dust. |
Connectors | Anderson & Alligator Clip connectors for versatile connections. |
Carrying Bag | Waterproof bag for safe storage and portability of the kit. |
Cables | High-quality cables included for quick and secure connections. |
Open Dimensions | 52.5 x 36 x 1.25 inches (133.35 x 91.44 x 3.18 cm) |
Folded Dimensions | 36 x 26.25 x 2.5 inches (91.44 x 66.68 x 6.35 cm) |
Discover the ultimate energy solution with the 220W Folding Solar Panel Kit. Designed for portability and efficiency, this advanced system delivers reliable power and optimized energy management for off-grid living. Built for durability, it’s ideal for RVs, camping, marine, and backup applications.
Specification | Details |
---|---|
Max Power (Pmax) | 220W |
Voltage at Max Power (Vmp) | 20.2V |
Current at Max Power (Imp) | 10.9A |
Solar Module Type | 2x110W Monocrystalline |
Maximum System Voltage | 1000V DC |
Maximum Series Fuse | 15A |
Dimensions | 91 x 67 x 6.5 cm (35.8 x 26.4 x 2.6 in) |
Item Weight | 14 kg (30.86 lbs) |
Junction Box | IP65 |
Connector | Anderson & Alligator Clip |
Bracing | Aluminum Rack, angle adjustable |
Specification | Details |
---|---|
Rated Charge Current | 10 Amps |
Max PV Short Circuit Current | 13 Amps |
Maximum PV Open Circuit Voltage | 75 Volts |
Dimensions | 10 x 11.3 x 4 cm (3.94 x 4.45 x 1.57 in) |
Weight | 0.5 kg (1.10 lbs) |
- Open Dimensions: 52.5 × 36 × 1.25 in (133.35 × 91.44 × 3.18 cm)
- Folded Dimensions: 36 × 26.25 × 2.5 in (91.44 × 66.68 × 6.35 cm)
- Weight: 14 kg (30.86 lbs)
The folding solar panel kit delivers up to 220W under Standard Test Conditions (STC).
The kit includes two 110W monocrystalline solar panels, designed for high efficiency and reliable performance.

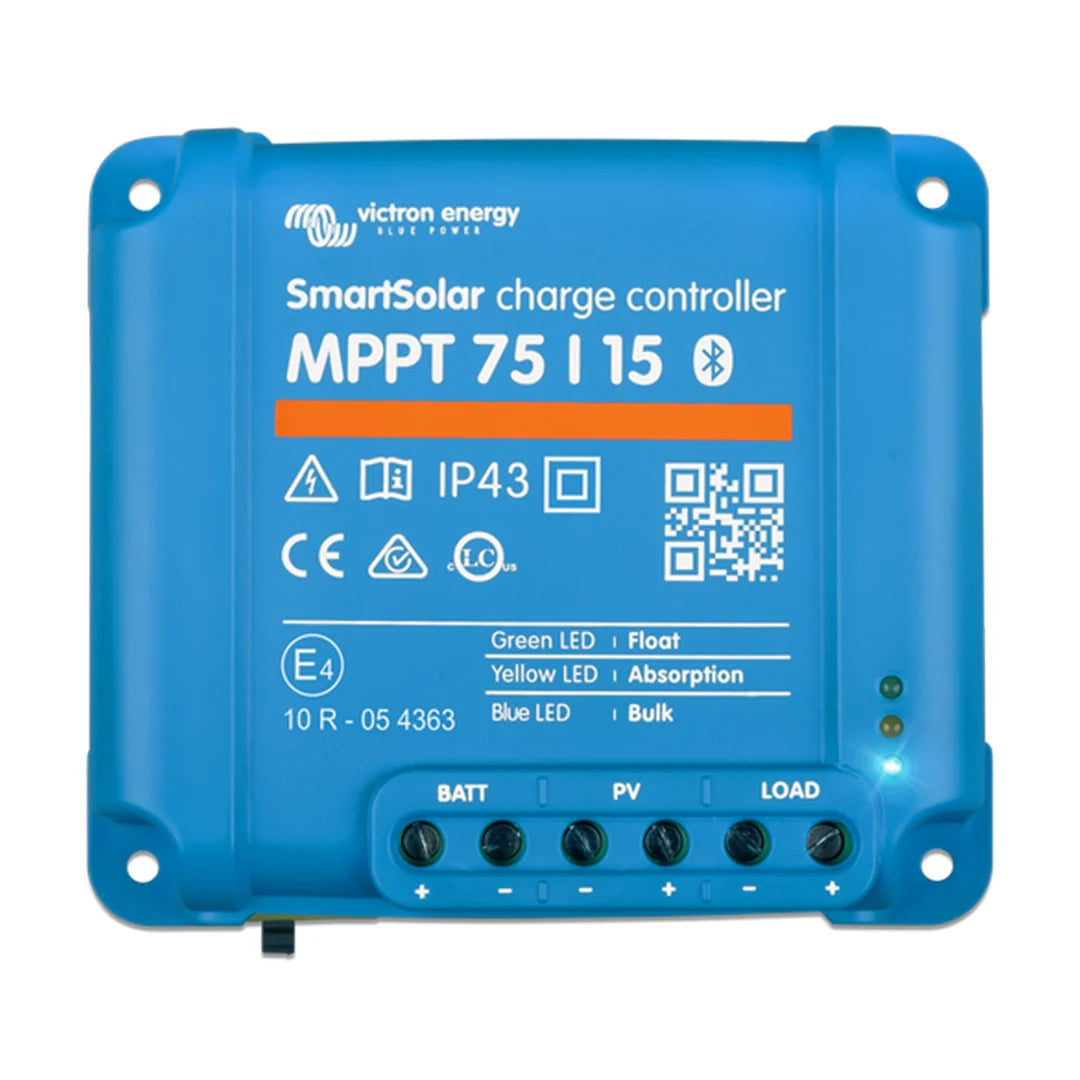

The kit includes a Victron SmartSolar MPPT 75/15 charge controller with Bluetooth monitoring for optimal performance.
The maximum system voltage is 1000V DC, suitable for a wide range of off-grid applications.
Yes, the panel is designed for all-weather use, but output may decrease in cloudy or extreme conditions.
Yes, its compact folding design, lightweight frame, and protective carrying bag make it portable and easy to set up.
Yes, folding solar panels are an effective portable power solution for RVs, boats, camping, and other off-grid uses.
Yes, a 220W solar kit can provide sufficient power for most RV and camping needs, including lights, small appliances, and device charging.
