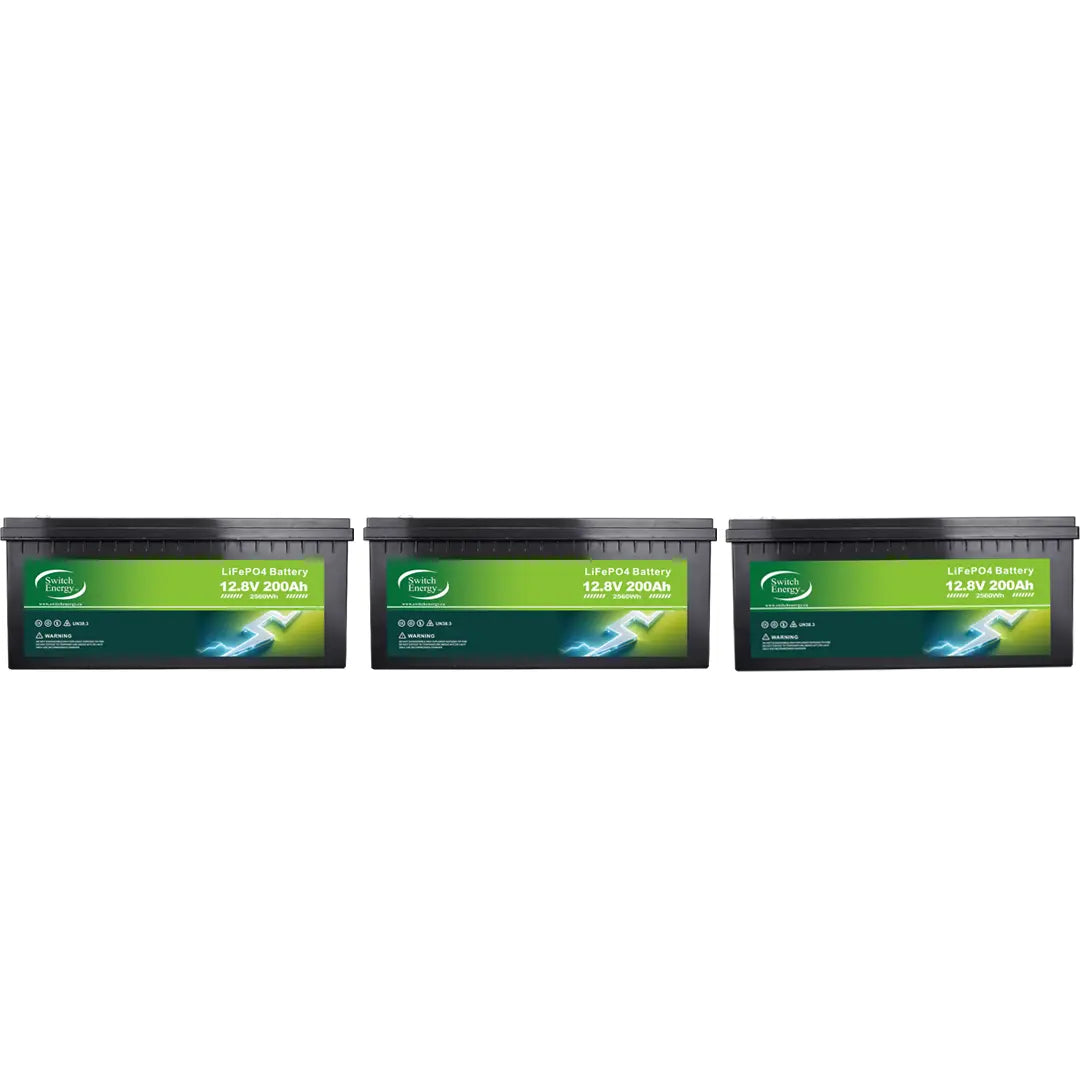

Three Switch Energy 12V 200Ah heated LiFePO₄ batteries arranged as a 12V 600Ah battery bank with Bluetooth monitoring
Switch Energy 12V 200Ah Heated Lithium LiFePO4 Battery with Bluetooth for RV, Marine and Off-Grid Solar
Three Switch Energy 12V 200Ah heated LiFePO₄ batteries arranged as a 12V 600Ah battery bank with Bluetooth monitoring
Switch Energy 12V 200Ah Heated Lithium LiFePO4 Battery with Bluetooth for RV, Marine and Off-Grid Solar

12V 600Ah LiFePO₄ Battery Bank – Heated + Smart Bluetooth


$2,620.56
🍁 Canadian Assembled. Our Exclusive Switch Energy™ Brand. Tested & Supported by CDN Solar.
  • Package Includes: 3 × Switch Energy 12V 200Ah LiFePO₄ Batteries (Parallel Battery Bank)
  • Total Capacity: 600Ah | Total Energy: 7.68 kWh (3 × 2.56 kWh)
  • Battery Type: LiFePO₄ with Smart BMS + Bluetooth
  • Heating: Built-in low-temperature heating (activates below 0°C with ≥8A charge). Built-in heating for reliable charging in Canadian winters.
  • Max Charge/Discharge: 100A per battery (300A combined peak)
  • Dimensions (each): 52.2 × 24.0 × 21.8 cm (20.55″ × 9.45″ × 8.58″)
  • Weight (each): ~20 kg (44.09 lbs)
  • Ideal For: Off-grid solar systems, RVs, marine, cabins, and energy storage
  • Cycle Life: 3,000+ cycles @ 80% DOD
🚨 Special Offer:
FREE Shipping on this 3-Battery 12V 200Ah Switch Energy Bank.
(Limited time offer)
SKU: SWE-12V200-HB-3PK
Product Type: Battery
$2,620.56
$999.00
$2,620.56
Subtotal: $2,620.56
Warehouse Pick-Up Available
Our pick-up schedule is Monday to Friday from 10AM - 4PM.
Secure Transaction
Canada Wide Shipping

Products online are in stockin in our warehouse

Orders generally ship out in 1-2 days.

Three Switch Energy 12V 200Ah heated LiFePO₄ batteries arranged as a 12V 600Ah battery bank with Bluetooth monitoring

Switch Energy

12V 600Ah LiFePO₄ Battery Bank – Heated + Smart Bluetooth

$2,620.56
Three Switch Energy 12V 200Ah heated LiFePO₄ batteries arranged as a 12V 600Ah battery bank with Bluetooth monitoring
Switch Energy 12V 200Ah Heated Lithium LiFePO4 Battery with Bluetooth for RV, Marine and Off-Grid Solar

Switch Energy

12V 600Ah LiFePO₄ Battery Bank – Heated + Smart Bluetooth

$2,620.56
Description
Description
x

12V 600Ah Heated LiFePO4 Battery Bank (3× 200Ah in Parallel) – Switch Energy

This battery bank includes three (3) Switch Energy 12V 200Ah Heated & Bluetooth LiFePO₄ batteries wired in parallel to create a powerful, reliable, and intelligent 12V 600Ah (≈7.6kWh) energy storage system. Designed for off-grid solar, RV, marine, and backup applications, this configuration provides exceptional capacity, durability, and performance in all Canadian seasons.

Key Features of the 3-Battery 600Ah Bank:

  • Total Voltage: 12.8V (parallel configuration)
  • Total Capacity: 600Ah (3 × 200Ah)
  • Total Energy: ≈ 7680Wh (7.6kWh usable)
  • Configuration: 3 batteries in parallel for maximum runtime & high discharge performance
  • Smart BMS (per battery): Full protection, cell balancing, and advanced safety controls
  • Bluetooth Monitoring: Real-time battery health and status through the mobile app
  • Self-Heating Technology: Safe charging in temperatures below 0°C
  • Rugged Design: IP65-rated enclosures built for Canadian weather
  • Long Cycle Life: 3000+ cycles at 80% depth of discharge

Dimensions & Weight (Per Battery)

Each Switch Energy 12V 200Ah battery in this 3-pack has:

  • Dimensions (L × W × H): 52.2 × 24.0 × 21.8 cm (20.55" × 9.45" × 8.58")
  • Approx. Weight: 20 kg (≈ 44 lb per battery)
  • Terminals: M8 stud terminals (recommended torque: 80–100 in-lbs / 9–11 N·m)

Build Quality & Certifications

Each battery is constructed with premium Grade A LiFePO₄ cells and protected with an IP65-rated ABS enclosure. Switch Energy batteries are tested to meet international safety standards including CE, UN38.3, UL1642, and IEC62133. This ensures safe and long-lasting performance for demanding off-grid and backup applications.

Ideal Applications (12V 600Ah Bank):

  • Off-Grid Solar Energy Storage Systems
  • RVs, Campers & Travel Trailers
  • Marine & Boating Power Storage
  • Cabins & Tiny Homes
  • Battery Backup / Emergency Power
  • High-capacity 12V inverter systems (2000W–5000W)

Why Choose This 3-Battery Switch Energy Bank?

This configuration gives you significantly more runtime and usable energy while maintaining the simplicity of a 12V system. With built-in heating, Bluetooth monitoring, and a robust BMS in every battery, the 12V 600Ah bank is optimized for Canadian winters and year-round reliability. It is an excellent choice for anyone needing professional-grade, high-capacity energy storage at an exceptional value.

Download Single-Battery Spec Sheet (PDF)

Features
Features
x

Capacity

The Switch Energy 12.8V 200Ah battery is built using premium-grade lithium iron phosphate (LiFePO₄) cells, offering 2.56 kWh of reliable energy in a compact and lightweight design. With a full depth of discharge (up to 100%) and excellent charge efficiency, it’s ideal for off-grid solar, RV, and marine applications. Its low self-discharge rate (<3% per month) ensures consistent performance even during long storage periods.

Cycle Life

Engineered for long-term reliability, this battery delivers over 3,000 full cycles at 80% depth of discharge (DOD), with potential to exceed 5,000 cycles under optimal conditions. Thanks to its stable LiFePO₄ chemistry, it offers a service life of 10 years or more when properly maintained, providing a cost-effective and durable energy storage solution.

Smart BMS

The integrated Battery Management System (BMS) continuously monitors voltage, current, temperature, and overall system health to protect against overcharge, over-discharge, short circuit, and temperature extremes. It automatically disconnects during unsafe conditions and reconnects once parameters return to normal. Optional Bluetooth connectivity allows real-time monitoring of battery status and performance.

Temperature Performance

Featuring low-temperature charging with automatic heating, the internal heater activates when the battery temperature drops below 0°C (charging current ≥ 8A). This self-heating system warms the cells to around 5°C before charging begins, ensuring safe and efficient operation even in cold climates such as Canadian winters.

Current Ratings

The Switch Energy 12.8V 200Ah battery supports a maximum continuous discharge of 100A and peak discharge up to 300A (5–15 ms). The maximum charge current is 100A, with a recommended rate of around 40–60A for optimal battery longevity. Proper wiring and fuse protection are essential to ensure safe operation at higher loads.

Safety

Using proven LiFePO₄ chemistry, this battery offers exceptional safety, thermal stability, and no risk of acid leaks or off-gassing. The advanced BMS provides multi-layer protection against short circuits, over-voltage, and overheating. The battery is certified to CE, UN38.3, UL1642, and IEC62133 standards and classified as UN 3480, Class 9 for shipping.

Size & Weight

Compact yet powerful, the battery measures 52.2 × 24.0 × 21.8 cm (20.55″ × 9.45″ × 8.58″) and weighs approximately 20 kg. Its ABS case with IP65 enclosure rating provides excellent dust and water resistance, making it suitable for harsh outdoor or marine environments.

Series and Parallel Configurations

This model supports up to 4 batteries in series (for 48V systems) and multiple units in parallel for expanded capacity. When configuring multiple batteries, ensure all units have the same model, voltage, and state of charge to maintain balance and system integrity.

Tech Specs
Tech Specs
x

Switch Energy 12.8V 200Ah Smart Heated LiFePO₄ Battery

The Switch Energy 12.8V 200Ah battery delivers 2.56 kWh of dependable power with advanced BMS protection and integrated low-temperature heating. Engineered for reliable performance in Canadian conditions, it’s ideal for off-grid solar, RV, marine, and backup power systems.


Technical Specifications


Specification Details
Battery Type Lithium Iron Phosphate (LiFePO₄)
Nominal Voltage 12.8 V
Nominal Capacity 200 Ah (2.56 kWh)
Energy 2560 Wh
Internal Resistance ≤ 20 mΩ @ 50 % SOC
Self-Discharge < 3 % per month
Recommended Charge Current 40 A
Maximum Charge Current 100 A
Charge Cut-Off Voltage 14.6 V
Continuous Discharge Current 100 A
Peak Discharge Current 300 A (5 – 15 ms)
Discharge Cut-Off Voltage > 10 V
Reconnect Voltage > 11.2 V
Short-Circuit Protection 200 – 600 µs response time
Integrated Heating Automatic activation below 0 °C (charging current ≥ 8 A)
BMS Type Smart BMS with voltage, current, and temperature protection
Bluetooth Monitoring Optional mobile app connectivity
Case Material / Protection Rating ABS Housing / IP65 rated for dust and water resistance
Terminal Type / Torque M8 / 80–100 in-lbs (9 – 11 N·m)
Dimensions (L × W × H) 52.2 × 24.0 × 21.8 cm (20.55″ × 9.45″ × 8.58″)
Weight ≈ 20 kg (44 lb)
Series / Parallel Configuration Up to 4 in series and parallel configurations supported
Operating Temperature Range −20 °C to +60 °C (−4 °F to 140 °F)
Certifications CE, UN38.3, UL1642, IEC62133 | Shipping Class UN 3480 (Class 9)
Applications Off-Grid Solar, RV, Marine, Residential Backup, Industrial
Warranty 3-Year Full Replacement Warranty (handled directly by CDN Solar)
Warranty
Warranty
x

Warranty & Support

The battery includes a 3-year warranty, handled directly through CDN Solar. We are the authorized warranty center , so if any issue were to arise, we would test the unit on-site here and provide a full replacement if required. This battery uses the same grade of lithium cells as top brands such as Battle Born, offering excellent reliability, long cycle life, and consistent performance at a more economical price point.

Canada’s Smartest 12V Heated LiFePO₄ Battery

Same top-tier lithium cells as leading brands — reliable, long-lasting power at a better price.

CUSTOMERS ALSO VIEWED THESE ITEMS

Canadian Solar TOPHiKu6 All-Black 445W N-Type TOPCon Solar Panel
$200.00
$249.00
$200.00
JA Solar 500W All-Black Solar Panel – JAM60D41 LB
$179.99
$229.00
$179.99
JA Solar JAM54D41-445/LB 445W Bifacial TOPCon N-Type Solar Panel
$178.00
$249.00
$178.00
Jinko Solar 535W Solar Panel
$249.00
$353.22
$249.00
SWE-230M-60 230W Solar Panels
$254.74
$286.66
$254.74
220W Lumera Bifacial Solar Panel Canadian Made
$299.27
$399.99
$299.27
Victron Folding Solar Panel Kit 220W
$499.95
$499.95
Victron Folding Solar Panel Kit 160W
$375.74
$425.74
$375.74
Switch Energy 12V 600Ah (3× 200Ah) Heated LiFePO₄ Battery Bank FAQ | Canada

FAQ Icon Switch Energy 12V 600Ah (3× 200Ah) Heated LiFePO₄ Battery Bank FAQ

This package includes three (3) Switch Energy 12V 200Ah Heated & Bluetooth LiFePO₄ batteries connected in parallel. Together they create a high-capacity 12V 600Ah (≈7.6kWh) energy storage system ideal for solar, RV, marine, and backup power.

Dimensions (per battery): 52.2 × 24.0 × 21.8 cm (20.55 × 9.45 × 8.58 in)
Weight (per battery): ≈ 20 kg (44 lbs)

The internal heating activates automatically when the temperature drops below 0°C and a minimum charging current of 8A is applied. The cells are warmed to around 5°C before charging begins, ensuring safe cold-weather operation.

Yes. Each battery includes Smart BMS with Bluetooth, allowing you to monitor temperature, state of charge, voltage, and cycle history in real time through a mobile app.

Per battery:
Recommended Charge Current: 40 A
Maximum Charge Current: 100 A
Continuous Discharge: 100 A
Peak: 300 A (5–15 ms)

Combined (3 batteries in parallel):
Up to 300 A continuous and 900 A peak (brief).

Yes. You can connect up to four 12V batteries in series (for 24V or 48V systems) and multiple sets in parallel to increase capacity. Always use identical batteries with matching voltage and state of charge.

The BMS protects against over-voltage, under-voltage, overcurrent, temperature extremes, short circuits, and includes automatic cell balancing for long-term reliability.

The batteries include a 3-year warranty handled directly by CDN Solar. Each unit is tested and replaced if needed. Switch Energy uses Grade A LiFePO₄ cells similar to those used by top brands, delivering long life and excellent performance.

This system is perfect for off-grid solar setups, RVs, cabins, camper vans, marine power, tiny homes, and residential backup systems requiring high capacity and dependable performance.
