Canadian Solar: Award-Winning Energy. Powering Canada’s Future
|
★★★★★
4.9 Google Reviews
|
| Brand: | Canadian Solar |
| SKU: | CS6.2-48TM-44 |
| Category: | Solar Panels / Modules |
| Power: | 445 W |
| Colour: | Black / Black (Frame / Backsheet) |
| Cell Count: | 48 |
| Facial: | Monofacial |
| Dimensions: | 176.2 × 113.4 × 3.5 cm (69.4 × 44.6 × 1.38 in) |
| Weight: | 21.8 kg (48.1 lbs) |
| Pallet Quantity: | 31 panels per pallet — contact us for a customized quote |
Couldn't load pickup availability
Your transaction is secure We work hard to protect your security and privacy. Our payment security system encrypts your information during transmission. We don’t share your credit card details with third-party sellers, and we don’t sell your information to others.
Learn MoreProducts online are in stockin in our warehouse
Orders generally ship out in 1-2 days.
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.
Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

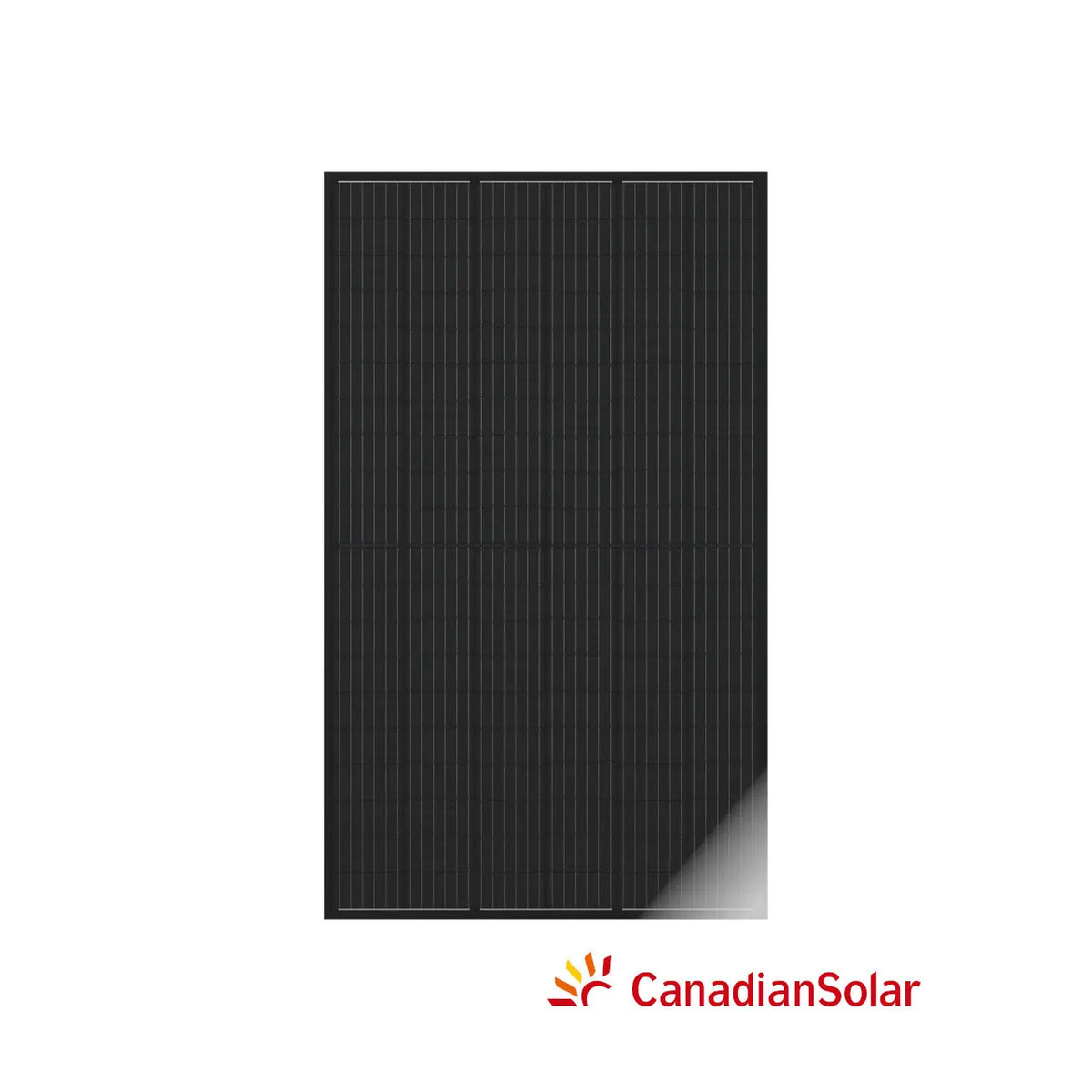

Canadian Solar’s TOPHiKu6 All-Black 445W (CS6.2-48TM-H) represents the next generation of high-performance solar panels. Built with N-Type TOPCon monocrystalline cells, this module delivers superior efficiency, long-term reliability, and modern all-black aesthetics that blend seamlessly with residential and commercial rooftops.
With an impressive 445-watt power output and module efficiency of up to 22.8%, the TOPHiKu6 is engineered to maximize power generation in limited roof space. The N-Type TOPCon technology significantly reduces LID (Light Induced Degradation) and LeTID losses, ensuring stable long-term energy production throughout its 25-year lifespan.
Each panel features a black anodized aluminum alloy frame and black backsheet for a sleek architectural appearance, while maintaining high mechanical strength — tested to withstand 5400 Pa snow and 2400 Pa wind loads. Its excellent temperature coefficient (−0.29%/°C) ensures dependable performance even during Canada’s hot summers and cold winters.
Backed by Canadian Solar’s global bankability and proven reliability, the TOPHiKu6 All-Black 445W panel delivers clean energy with enduring value — a smart choice for homeowners and installers seeking quality, performance, and visual harmony.
|
High-efficiency N-type TOPCon all-black module from Canadian Solar’s TOPHiKu6 series, optimized for residential and commercial rooftop systems in Canadian climates.
| Specification | Details |
|---|---|
| Model | CS6.2-48TM-445H (TOPHiKu6 All-Black Series) |
| Module Type | N-type TOPCon monocrystalline |
| Rated Power (Pmax, STC) | 445 W |
| Module Efficiency | 22.3 % |
| Cell Configuration | 96 cells [2 × (8 × 6)] |
| Voltage at Pmax (Vmp) | 30.4 V |
| Current at Pmax (Imp) | 14.64 A |
| Open-Circuit Voltage (Voc) | 35.6 V |
| Short-Circuit Current (Isc) | 15.95 A |
| Power Tolerance | 0 ~ +10 W |
| Dimensions | 176.2 × 113.4 × 3.5 cm (69.4 × 44.6 × 1.38 in) |
| Weight | 21.8 kg (48.1 lb) |
| Front Glass | 3.2 mm tempered glass with anti-reflective coating |
| Frame | Black anodized aluminium alloy |
| Operating Temperature | −40 °C to +85 °C |
| Maximum System Voltage | 1500 V (IEC / UL) |
| Maximum Series Fuse | 30 A |
| Mechanical Load | Snow load up to 8100 Pa, wind load up to 5600 Pa* |
| Junction Box | IP68, 3 bypass diodes |
| Cables & Connectors | 4 mm² (IEC) / 12 AWG (UL), MC4 connector, 155 cm (+) / 110 cm (−) |
| Certifications | UL 61730, IEC 61215, IEC 61730, IEC 61701 (salt mist), IEC 62716 (ammonia) |
| Fire Rating | TYPE 1 (1500 V) or TYPE 2 (1000 V) / CLASS C (IEC 61730) |
| Manufacturer | Canadian Solar Inc. |
| Specification | Details |
|---|---|
| Weight | 48.10 lb (21.82 kg) |
| Width | 113.40 cm (44.60 in) |
| Height | 3.50 cm (1.38 in) |
| Depth | 176.20 cm (69.40 in) |
|
15-Year Product Warranty & 25-Year Linear Performance Guarantee — Engineered for high efficiency, minimal degradation, and long-term solar reliability.
It uses advanced N-Type TOPCon monocrystalline cells with up to 22.8% efficiency, offering higher energy yield and lower degradation compared to P-Type modules.
Yes. This model features a black anodized aluminum frame and black backsheet for a sleek, uniform look ideal for residential rooftops.
The panel is tested to withstand up to 5400 Pa snow and 2400 Pa wind loads, and is certified for operation from −40 °C to +85 °C, making it ideal for all Canadian climates.
This module includes a 15-year product warranty and a 25-year linear power performance warranty, ensuring long-term reliability and minimal power loss over time.
The panel measures 172.2 × 113.4 × 3.0 cm (67.8 × 44.7 × 1.2 in) and weighs approximately 21 kg (46 lb).
Yes. The 445W output and compact design make it suitable for both residential rooftops and small commercial solar systems.
You can download the full product datasheet here.
