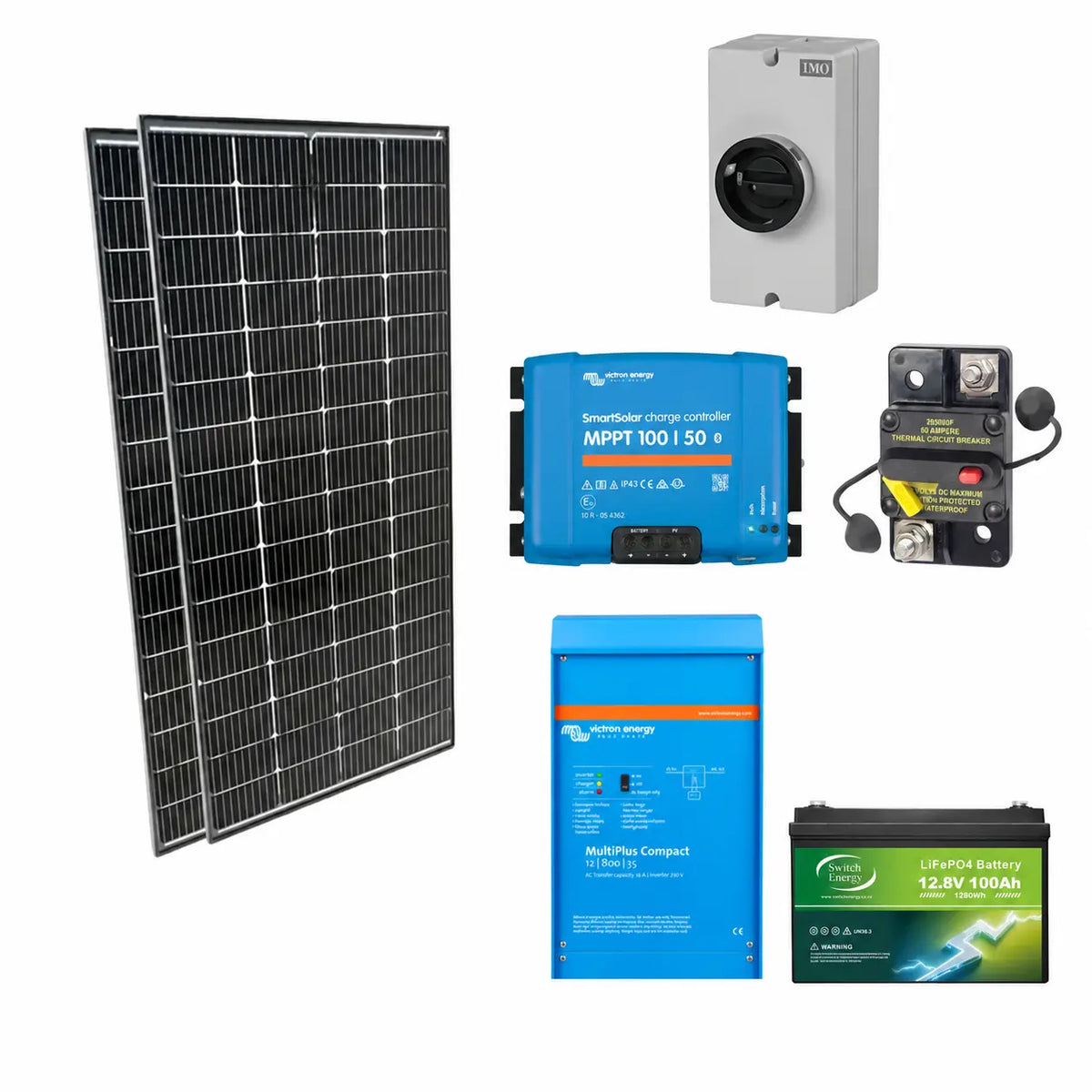

This is a complete 12V RV solar, battery, and inverter-charger system designed for small AC and DC loads. It combines a 440W solar array, a 12.8V 100Ah SWE LiFePO₄ battery, a Victron SmartSolar MPPT 100/50 charge controller, and a Victron MultiPlus 12/800/35-16 inverter-charger.

This kit is designed for small RV power loads, including:

• Laptop charging
• Phone and device chargers
• TVs
• Small kitchen gadgets
• Other compatible small AC and DC loads

It is particularly suited to weekend and occasional RV users who do not run AC-heavy appliances from the battery.

The kit includes 2 × Lumera 220W bifacial rigid solar panels, providing a total solar array capacity of 440W.

This kit is intended for RVs with at least 25 ft² (2.3 m²) of available roof area. Confirm the available mounting space and panel dimensions on your RV before installation.

The kit includes 1 × SWE 12.8V 100Ah LiFePO₄ battery. The battery provides 1,280Wh of nominal energy and includes a built-in Battery Management System (BMS), Bluetooth monitoring, and a self-heating function for low-temperature charging.

The kit includes a Victron SmartSolar MPPT 100/50 charge controller. It provides up to 50A of charge current and includes built-in Bluetooth for setup and monitoring through the VictronConnect app.

The kit includes a Victron MultiPlus 12/800/35-16 VE.Bus inverter-charger, 120V. The MultiPlus provides AC power conversion from the 12V battery system and can also charge the battery when a compatible AC source is connected.

Yes. The included Victron MultiPlus inverter-charger allows the battery system to be charged from a compatible AC source, such as shore power or an onboard or portable generator.

No. This complete power kit does not include vehicle alternator or starter-battery charging. A separate DC-DC charging system is required if you want to charge the RV house battery from the vehicle while driving.

The kit includes:

• 2 × Lumera 220W bifacial rigid solar panels
• 1 × SWE 12.8V 100Ah LiFePO₄ battery
• 1 × Victron SmartSolar MPPT 100/50 charge controller
• 1 × Victron MultiPlus 12/800/35-16 VE.Bus inverter-charger, 120V
• 1 × IMO 4-pole DC switch
• 1 × Blue Sea 60A resettable DC circuit breaker
• 1 × 150A MEGA fuse
• 1 × MEGA fuse holder
• 2 × Z-bracket solar panel mounting kits
• Solar and battery cabling as specified for the kit

See the System Components section for the complete cable lengths, quantities, and specifications.

This kit is designed for small AC and DC loads. High-demand or AC-heavy appliances may require a larger inverter, battery bank, and solar array. Always compare the power requirements of your appliances with the specifications of the system before use.

Installation requires proper solar, battery, DC protection, and 120V AC wiring. Installation should follow the component manufacturers' instructions and applicable electrical requirements. If you are unsure about system sizing, wiring, protection, or AC connections, consult a qualified RV technician or electrician.

Actual power consumption and battery runtime depend on the connected loads and operating conditions. Verify appliance power requirements, cable lengths, system configuration, and installation requirements before installation. High-demand appliances may require a larger inverter and battery system.
