Canadian Solar 450W Solar Panel – Black Monofacial, Black Frame

Canadian Solar 450W Solar Panel – Black Monofacial, Black Frame


Limited-time deal
-25% $150.00
List Price: $199.99

Canadian Solar: Award-Winning Energy. Powering Canada’s Future

CDN Solar
★★★★★ 4.9 Google Reviews
Features:
Brand: Canadian Solar
Model: CS6.1-54TM-450H
Category: Solar Panels / Modules
Power: 450 W
Technology: N-Type TOPCon
Colour: All-Black
Cell Count: 108
Facial: Monofacial
Dimensions: 180 × 113.4 × 3.5 cm (70.9 × 44.6 × 1.38 in)
Weight: 23 kg (50.7 lbs)

SKU: PV1611
Product Type: Panels
$150.00
$199.99
$150.00
Subtotal: $150.00
Warehouse Pick-Up Available
Our pick-up schedule is Monday to Friday from 10AM - 4PM.
Secure Transaction
Canada Wide Shipping

Products online are in stockin in our warehouse

Orders generally ship out in 1-2 days.

Canadian Solar 450W Solar Panel – Black Monofacial, Black Frame

Canadian Solar ™

Canadian Solar 450W Solar Panel – Black Monofacial, Black Frame

$150.00
Canadian Solar 450W Solar Panel – Black Monofacial, Black Frame

Canadian Solar ™

Canadian Solar 450W Solar Panel – Black Monofacial, Black Frame

$150.00
About this item
About this item
x

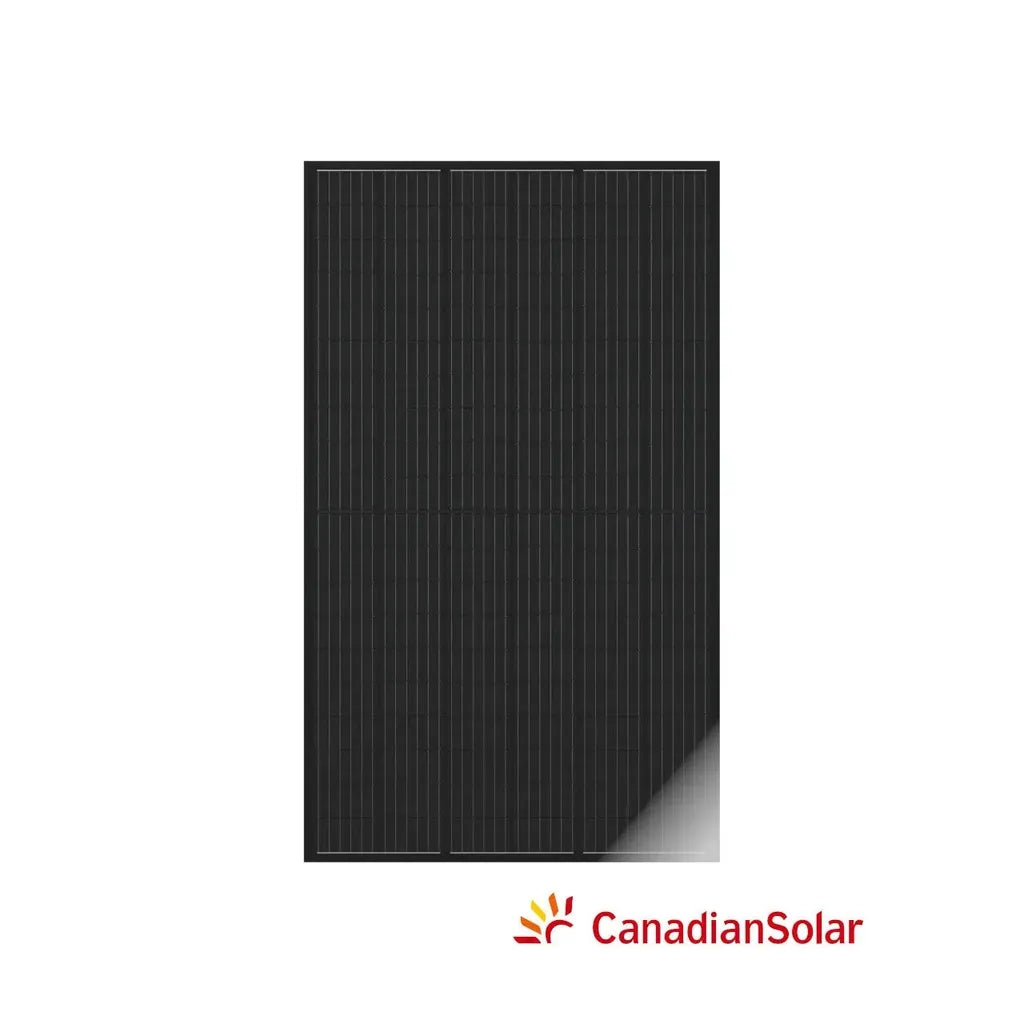

Canadian Solar TOPHiKu6 All-Black 450W (CS6.1-54TM-450H) combines N-type TOPCon technology with a sleek all-black design for high-performance residential and commercial solar installations.

With a 450-watt power output and module efficiency of 22.0%, this panel delivers strong power generation in a compact 108-cell design. Canadian Solar’s N-type TOPCon technology provides excellent anti-LeTID and anti-PID performance, low power degradation, and reliable long-term energy production.

The module features an anodized aluminum alloy frame, 3.2 mm tempered glass with anti-reflective coating, and a black polymer substrate. Its low temperature coefficient of −0.29%/°C helps maintain performance as module temperatures increase.

  • N-type TOPCon cell technology
  • 450W nominal maximum power
  • 22.0% module efficiency
  • Positive power tolerance of 0 to +10W
  • Excellent anti-LeTID and anti-PID performance
  • Heavy snow load up to 8100 Pa and wind load up to 6000 Pa*
  • 25-year product warranty and 30-year linear power performance warranty*

Designed for high power output, long-term reliability, and clean rooftop aesthetics, the Canadian Solar TOPHiKu6 All-Black 450W is a strong choice for residential and commercial solar installations.

*Refer to the Canadian Solar datasheet and applicable warranty terms for installation requirements, regional availability, and warranty conditions.

Features
Features
x
  • N-Type TOPCon cell technology with 22.0% module efficiency
  • TOPHiKu6 All-Black design for a sleek, modern appearance
  • Excellent anti-LeTID and anti-PID performance for low power degradation and high energy yield
  • Low temperature coefficient (−0.29%/°C) helps improve energy yield in hot conditions
  • Positive power tolerance of 0 to +10 W
  • Heavy snow load up to 8100 Pa and wind load up to 6000 Pa*
  • Designed to minimize micro-crack impacts for improved reliability
Technical Specs
Technical Specs
x

Canadian Solar TOPHiKu6 CS6.1-54TM-450H All-Black 450W Solar Panel

Canadian Solar TOPHiKu6 All-Black 450W module featuring N-type TOPCon technology, high efficiency, low power degradation, and a sleek all-black design.

Specification Details
Model CS6.1-54TM-450H (TOPHiKu6 All-Black)
Cell Type N-type TOPCon
Rated Power (Pmax, STC) 450 W
Module Efficiency 22.0%
Cell Configuration 108 [2 × (9 × 6)]
Voltage at Pmax (Vmp) 33.0 V
Current at Pmax (Imp) 13.66 A
Open-Circuit Voltage (Voc) 38.9 V
Short-Circuit Current (Isc) 14.55 A
Power Tolerance 0 ~ +10 W
Dimensions 1800 × 1134 × 35 mm (70.9 × 44.6 × 1.38 in)
Weight 23 kg (50.7 lbs)
Front Glass 3.2 mm tempered glass with anti-reflective coating
Substrate Black polymer (white on rear side)
Frame Anodized aluminium alloy
Operating Temperature −40°C to +85°C
Temperature Coefficient (Pmax) −0.29%/°C
Maximum System Voltage 1000 V (IEC / UL)
Maximum Series Fuse 25 A
Mechanical Load Heavy snow load up to 8100 Pa; wind load up to 6000 Pa*
Junction Box IP68, 3 bypass diodes
Cable 4 mm² (IEC), 12 AWG (UL)
Cable Length 1500 mm (61.0 in) (+) / 1100 mm (43.3 in) (−)
Connector T6, MC4, MC4-EVO2 or MC4-EVO2A
Certifications IEC 61215, IEC 61730, UL 61730, IEC 61701, IEC 62716, IEC 60068-2-68*
Fire Performance TYPE 2 (UL 61730 1000 V) or CLASS C (IEC 61730)
Manufacturer Canadian Solar (USA) Inc.

*Refer to the manufacturer datasheet and installation documentation for applicable load conditions and certifications.

Dimensions
Dimensions
x
Specification Details
Weight 50.7 lb (23 kg)
Width 113.4 cm (44.6 in)
Thickness 3.5 cm (1.38 in)
Length 180 cm (70.9 in)
Warranty & Certifications
Warranty & Certifications
x
  • Product Warranty: 25 Years on Materials and Workmanship*
  • Performance Warranty: 30 Years (Linear Power Performance)*
  • Power Degradation: ≤ 1% in the first year and ≤ 0.4% per year thereafter
  • Certifications: IEC 61215, IEC 61730, UL 61730, IEC 61701, IEC 62716 and IEC 60068-2-68*
  • Fire Performance: TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)
  • Operating Temperature Range: −40°C to +85°C
  • Maximum System Voltage: 1000V (IEC / UL)
  • Maximum Series Fuse Rating: 25A

*Warranty and certification applicability are subject to Canadian Solar's terms, conditions, product type and market.

Documentation
Documentation
x

📄 Download 450W Product Datasheet (PDF)

🧊 View Kiwa PVEL 50 mm Hail Test Report (PDF)

Canadian Solar — Built for Long-Term Performance

25-Year Product Warranty & 30-Year Linear Performance Warranty — Engineered for high efficiency, minimal degradation, and long-term solar reliability.

Popular products based on this item

Canadian Solar 450W Solar Panel – Black Monofacial, Black Frame
$150.00
$199.99
$150.00
JA Solar 500W All-Black Solar Panel – JAM60D41 LB
$179.00
$229.00
$179.00
JA Solar 500W Solar Panel Pallet – Full Pallet (36 Units)
$5,400.00
$6,480.00
$5,400.00
Canadian Solar TOPHiKu6 All-Black 445W N-Type TOPCon Solar Panel
$170.00
$249.00
$170.00
Canadian Solar TOPHiKu6 All-Black 445W N-Type TOPCon Solar Panels — Full Pallet (31 Panels)
$4,650.00
$5,499.00
$4,650.00
Lumera 220W M10 Bifacial Rigid Solar Panel
$249.00
$399.99
$249.00
Lumera 220W M10 Flex Solar Panel
$299.00
$399.00
$299.00
Lumera Nominal 100W M6 Bifacial Rigid Solar Panel
$129.00
$179.00
$129.00

Customers Also Viewed These Items

Pytes V5 20.48kWh 48V 400Ah Heated Lithium LiFePO4 Battery Bank
$12,170.14
$15,033.92
$12,170.14
Pytes V5 30.72kWh 48V 600Ah Heated Lithium LiFePO4 Battery Bank
$19,510.28
$23,800.18
$19,510.28
Pytes V5 40.96kWh 48V 800Ah Heated Lithium LiFePO4 Battery Bank
$24,340.28
$30,056.30
$24,340.28
Volthium 25.6V 200Ah LiFePO4 Battery 25.6-200-r-h-3U 5.12 kW
$2,500.00
$2,999.00
$2,500.00
Battle Born BB1250H 50Ah 12V Lithium LiFePO4 Heated Deep Cycle Battery
$699.00
$998.00
$699.00
Volthium 51.2V 100Ah LiFePO₄ Battery – Rackmount 3U (UL9540 Certified)
$2,000.00
$2,399.00
$2,000.00
Switch Energy 12V 300Ah LiFePO₄ Battery Bank – 3x Batteries (Heated + Smart Bluetooth)
$1,340.28
$1,798.00
$1,340.28
Switch Energy 12V 100Ah Lithium Battery – Heated & Smart Bluetooth LiFePO4 (M8)
$512.46
$699.99
$512.46
Canadian Solar TOPHiKu6 450W Panel FAQ

FAQ Icon Canadian Solar TOPHiKu6 450W Panel FAQ

The CS6.1-54TM-450H uses N-type TOPCon cell technology and delivers 450W of nominal maximum power with 22.0% module efficiency. It is designed for low power degradation and high energy yield.

Yes. The CS6.1-54TM-450H is part of Canadian Solar's TOPHiKu6 All-Black series. It features an anodized aluminium alloy frame and a black polymer substrate that is white on the rear side.

At Standard Test Conditions (STC), the panel is rated at 450W with a Vmp of 33.0V, Imp of 13.66A, Voc of 38.9V and Isc of 14.55A. The power tolerance is 0 to +10W.

The module is rated for an operating temperature range of −40°C to +85°C. Canadian Solar specifies heavy snow load up to 8100 Pa and wind load up to 6000 Pa, subject to the applicable installation requirements.

Yes. The CS6.1-54TM-450H was evaluated by Kiwa PVEL through its Product Qualification Program using a 50 mm Hail Stress Sequence. The tested samples showed no major visual defects after the hail test and met the applicable wet-leakage insulation requirements.

Canadian Solar specifies a 25-year limited product warranty on materials and workmanship and a 30-year linear power performance warranty. Power degradation is specified at no more than 1% in the first year and no more than 0.4% per year thereafter. Warranty terms and regional conditions apply.

The panel measures 1800 × 1134 × 35 mm (70.9 × 44.6 × 1.38 in) and weighs 23 kg (50.7 lb).

The CS6.1-54TM-450H has a maximum system voltage of 1000V (IEC/UL) and a maximum series fuse rating of 25A.

You can download the Canadian Solar 450W product datasheet or view the Kiwa PVEL 50 mm Hail Test Report .
