Victron RV Marine Solar Kit 230W with SmartSolar MPPT Controller, MC4 cables, and Z bracket mounting hardware - CDN Solar
Victron Energy Marine Systems Kit
Solar Panel Kits Canada - Victron 230W RV Marine with Bluetooth

220W Marine Solar Kit – Victron & Canadian Lumera Panel


Limited-time deal
-13% $549.99
List Price: $629.99

Everything you need for off-grid marine adventures — Powered by Victron and a Canada-made Lumera panel 🍁

MPPT: Ultra Fast Maximum Power Point Tracking
1 x 220W Lumera Solar Panel. Dimensions: 141 x 70 x 3 cm (55.5 x 27.6 x 1.2 in), IP65 junction box - 25 year warranty
1 x Solar Charge Controller. Victron SmartSolar MPPT 75/15
1 X MC4 Cable Kit. 25 ft Red and 25 ft Black & MC4 Connectors — marine-rated UV-resistant
1 x Z Mounting Brackets. Secure aluminum solar panel mounts
1 x Battery Cable Kit. 5 ft. Red & Black #10 Wire with lugs, tinned copper, marine-ready
SKU: Victron-MarineKit-220
Product Type: Marine Solar Kit
Regular price
$549.99
Regular price
$629.99
Sale price
$549.99
Subtotal: $549.99
Warehouse Pick-Up Available
Our pick-up schedule is Monday to Friday from 10AM - 4PM.
Secure Transaction
Canada Wide Shipping

Products online are in stockin in our warehouse

Orders generally ship out in 1-2 days.

Victron RV Marine Solar Kit 230W with SmartSolar MPPT Controller, MC4 cables, and Z bracket mounting hardware - CDN Solar

Vendor: Victron Energy

220W Marine Solar Kit – Victron & Canadian Lumera Panel

$549.99

Vendor: Victron Energy

220W Marine Solar Kit – Victron & Canadian Lumera Panel

$549.99

Key Features

Lumera 220W Panel

Canadian-made🍁bifacial module

This 220W bifacial solar panel is built in Canada and delivers up to 30% extra power through backside generation. Featuring high-efficiency PERC monocrystalline cells and a compact footprint, it's designed for long-lasting performance and backed by a 25-year power output warranty.

Built-in Bluetooth

Victron Energy Charge Controller

Victron Energy SmartSolar MPPT 75/15. A solar charger gathers energy from your solar panels and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximizes this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time.

Monitor Performance

Bluetooth Connectivity

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.

Connecting the Kit

Easy to install and connect to your Marine battery. Everything you need is in the kit.

Z brackets mount to the panels with the 4 roof screw holes on the outside.
MC4 Red and Black Cables click into place with the connectors on the panel
Cables from the panel connect to the PV + & PV - with a screwdriver: Red + Black -
Battery cables connect to the Batt + & Batt - with a screw driver: Red + Black -
Cables connect to the battery with a wrench: Red + Black - (Battery optional)

Customers Also Viewed These Items

GET THE VICTRON MARINE POWER ADVANTAGE

Reliable 220W solar power—built for marine performance with high-efficiency panels and trusted Victron components.

Victron 220W Marine Solar Kit FAQ

FAQ Icon Victron 220W Marine Solar Kit FAQ

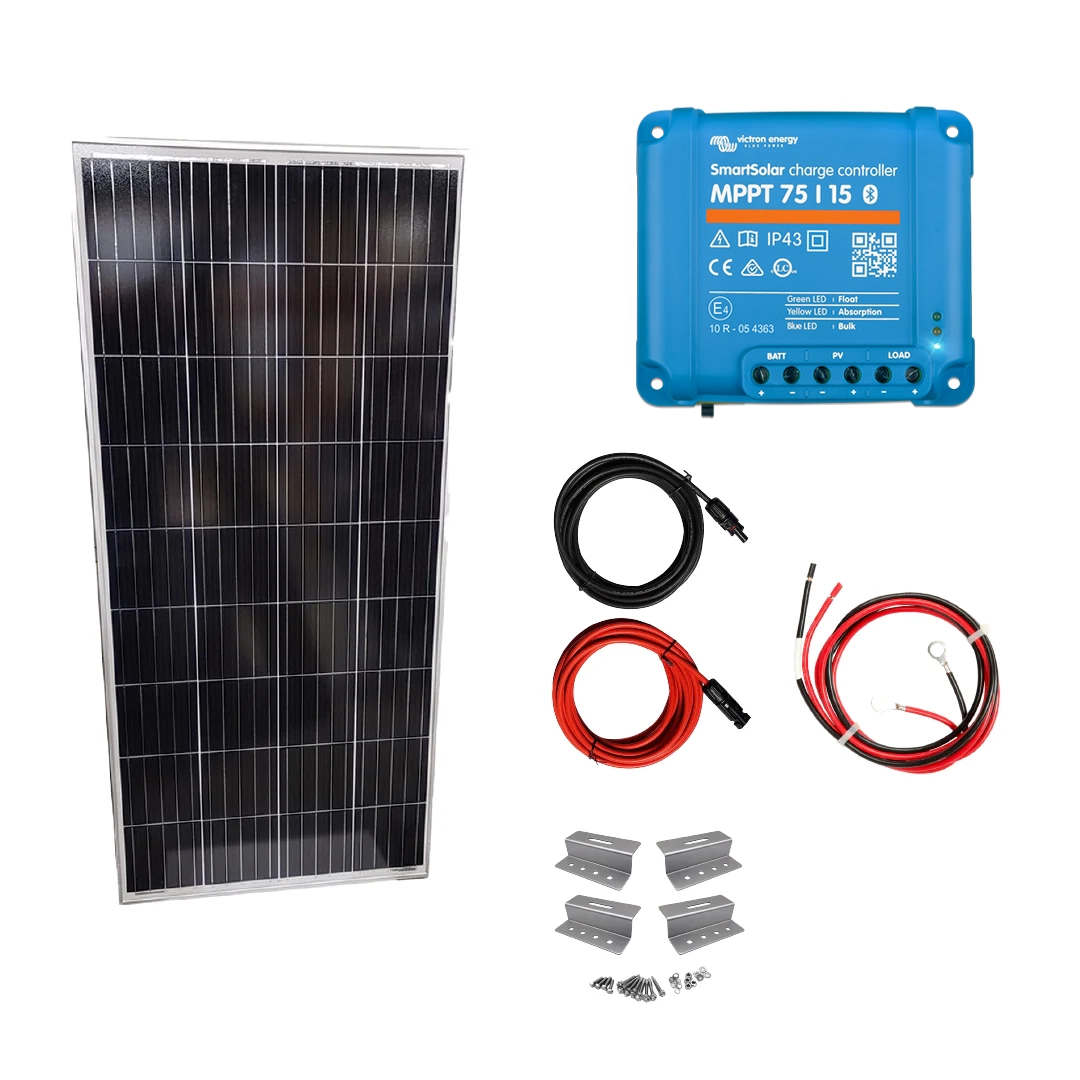

This complete RV or marine system includes:
- 1×220W Canadian-made Lumera Solar Panel (141 x 70 x 3 cm)
- Victron SmartSolar MPPT 75/15 controller
- 25 ft Red & 25 ft Black MC4 Cable Kit
- Z Bracket Mounting Kit
- 5 ft Red & Black Battery Cable Kit (#10 wire with lugs)

Yes! The panel includes:
- Pre-installed MC4 connectors
- IP65-rated junction box
- Tempered glass & anodized aluminum frame
- Lightweight design for easy roof or deck mounting

- Dimensions: 141 x 70 x 3 cm (55.5 x 27.6 x 1.2 in)
- Weight: 10.94 kg (24.1 lbs)
- Warranty: 25-year power output warranty

Yes. The Victron MPPT controller includes Bluetooth for real-time monitoring via the free VictronConnect app, available on Android and iOS.

We recommend the Sasquatch Power E-Box 12100 — assembled, wired, and tested in Canada for off-grid adventures and engineered for Canadian climate performance.

- ☀️ Full Sunlight (5 peak hours): ~1.1 kWh/day
- ⛅ Partly Cloudy: ~0.8–0.9 kWh/day
- 🌧️ Stormy Conditions: ~0.2–0.5 kWh/day

This system is designed for rooftops, trailers, or boat decks. It’s suitable for RVs, campers, marine vessels, or off-grid cabins. All included components are weather-resistant and marine-rated.
