Everything you need for off-grid RV adventures — Powered by Victron and a Canada-made Lumera panel 🍁
MPPT: Ultra Fast Maximum Power Point Tracking
| 2 x 220W Lumera Solar Panels – 25-year warranty |
| 1 x Victron SmartSolar 100/30 MPPT Charge Controller |
| 1 x MC4 RV Cable Kit – 25 ft with MC4 connectors |
| 2 x Z-Bracket Mounting Kits (8 brackets total) |
| 1 x Battery Cable Kit – Red & Black with lugs |
| 1 x MC4 Adapter Kit for Parallel Panel Connection |
Optional Add-ons: Blue Sea 60A breaker, Victron Smart Battery Sense, MC4 Y adapter, 12V lithium batteries (50Ah to 330Ah), Victron SmartShunt battery monitor, and Victron inverters for AC appliances.
SKU:
Victron100-30-MPPT-440W-RVKIT-Custom
Product Type:
RV Solar Kit
- Regular price
- $962.20
- Regular price
-
$1,099.00 - Sale price
- $962.20
- Unit price
- per
Subtotal:
$962.20
Couldn't load pickup availability
Warehouse Pick-Up Available
Our pick-up schedule is Monday to Friday from 10AM - 4PM.
Secure Transaction
Canada Wide Shipping
Products online are in stockin in our warehouse
Orders generally ship out in 1-2 days.
Description
xAs an RV owner, you know the importance of having a reliable source of power, especially when you're off-grid. The Solar Panel Kits Canada Victron SmartSolar 440W RV is designed to meet your power needs while you're on the road. This kit includes 2 x 220W solar panels, a Victron 100/30 SmartSolar 30A MPPT charge controller, and all the necessary cables and connectors to get started.
Marine Solar Kits – Made for Canada
The Victron 440W RV Kit includes two high-performance 220W Lumera solar panels proudly manufactured in Canada. Designed for harsh outdoor conditions, each panel is built with monocrystalline cells, an IP65-rated junction box, and tempered glass. These panels are optimized for mobile and RV solar installations, delivering reliable energy even in variable light or coastal environments.
Each panel measures 141 x 70 x 3.5 cm (55.51 x 27.56 x 1.38 inches) and weighs 10.94 kg (24.1 lbs). Their lightweight and compact design make them easy to install on RV roofs or marine surfaces using the included Z brackets. Backed by a 25-year power output warranty, they ensure long-term durability for off-grid systems, RVs, and travel.
Solar Panel Kits Canada – The MPPT Charge Controller
This kit features a 30A Victron SmartSolar MPPT charge controller that efficiently converts solar power into battery storage. It maximizes energy harvest even in partially shaded or low-light conditions.
The controller is equipped with intelligent protections against overcharging, overheating, and short-circuiting, extending the life of your battery system and ensuring safe operation.
Bluetooth Connectivity
With built-in Bluetooth, you can monitor and configure your system directly from your phone or tablet using the free VictronConnect app (iOS & Android). View real-time stats like voltage, current, charging status, and historical performance data.
You can also adjust battery settings, charging parameters, and receive alerts—all without needing a display or dongle.
Easy Installation
The Victron 440W RV Solar Kit is designed for DIY installation. All necessary components are included: solar panels, Z brackets, cabling, and MC4 adapter kit for parallel connection. Plug-and-play wiring makes setup simple—even if you’re new to solar.

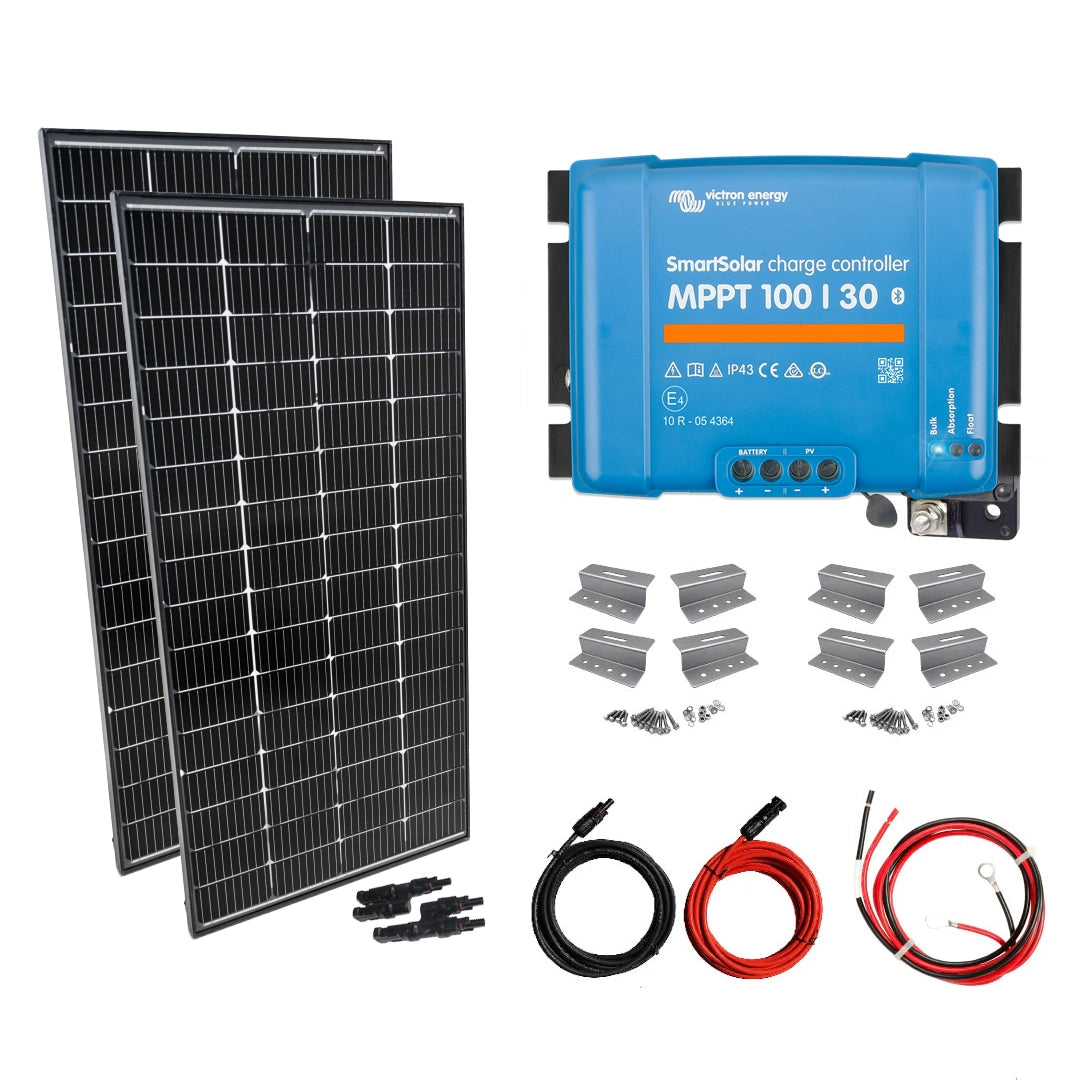

What’s Included:
- 2 x 220W Lumera Solar Panels – Made in Canada, IP65 junction box, 25-year warranty
- 1 x Victron SmartSolar 100/30 MPPT Charge Controller
- 1 x MC4 RV Cable Kit – 25 ft x 2 with MC4 connectors
- 2 x Z-Bracket Mounting Kits
- 1 x Battery Cable Kit – 5 ft Red & 5 ft Black #8 wire with lugs and heat shrink
- 1 x MC4 Adapter Kit for Parallel Panel Connection
Optional Add-ons: Batteries, Victron inverters, SmartShunt, SmartSense temperature sensors, and breakers are available to complete your custom setup.
cETL Approved for the Canadian Market
Downloads
Components
xVictron 440W RV Solar Kit – What's Included
| Component | Description |
|---|---|
| 2 x 220W Lumera Solar Panels | Made in Canada, monocrystalline, IP65 junction box, 141 x 70 x 3.5 cm (55.51 x 27.56 x 1.38 in), 10.94 kg (24.1 lbs), 25-year warranty |
| 1 x Victron SmartSolar 100/30 MPPT Controller | 30A MPPT charge controller with Bluetooth for mobile monitoring and efficient solar harvesting |
| 1 x MC4 RV Cable Kit | 25 ft x 2 solar cables with MC4 connectors – plug-and-play ready |
| 2 x Z-Bracket Mounting Kits | Aluminum mounting brackets for easy panel installation on RV surfaces |
| 1 x Battery Cable Kit | 5 ft red & 5 ft black #8 wire with lugs and heat shrink – rugged and flexible wiring solution |
| 1 x MC4 Adapter Kit | MC4 Y Branch Connector for parallel panel connection View product |
Optional Add-ons:
- Blue Sea 60A Breaker: Protects your system with a resettable circuit breaker between your battery and charge controller. Recommended for RV safety and NEC compliance. View product
- Victron Smart Battery Sense: Wireless sensor that optimizes charging by providing battery voltage and temperature data to the MPPT controller. View product
- MC4 Y Branch Connector: Required for safely connecting solar panels in parallel. Plug-and-play compatible with your kit. View product
- Lithium Battery Options (12V LiFePO4): Choose from multiple 12V lithium batteries ranging from 50Ah to 330Ah to store solar energy and power your RV when the sun sets.
- Victron SmartShunt (Battery Monitor): Tracks battery state of charge, voltage, amps, and historical data via Bluetooth. A great way to monitor your energy usage. View product
- Victron Inverters: Required if you need to run AC-powered appliances like coffee makers, laptops, or TVs from your 12V battery bank.
Features
xPower your RV or travel trailer with confidence. This customizable RV Solar Kit includes everything you need for a reliable off-grid setup—solar panels, charge controller, wiring, and mounting hardware. Add optional upgrades like batteries, inverters, monitors, and safety components to tailor your system.
- MPPT Ultra-Fast Tracking: Victron’s MPPT controller continuously adjusts to changing sunlight conditions for maximum energy harvest—even on cloudy days.
- Load Output Protection: Helps prevent battery over-discharge. Victron's BatteryLife algorithm optimizes daily recharge and improves battery lifespan.
- Bluetooth Monitoring: Built-in Bluetooth lets you track and manage system performance in real time via the free VictronConnect app.
- Modular Customization: Expand your kit with lithium batteries, Victron inverters, battery monitors, and more. See the Components tab for upgrade options.
- Certified for Canada: Lumera solar panels are cETL certified, ensuring compliance with Canadian safety and performance standards.
Continue Exploring...
Key Features
Anti-reflective and anti-soiling surface
Canadian-made🍁bifacial module
This 220W bifacial solar panel is built in Canada and delivers up to 30% extra power through backside generation. Featuring high-efficiency PERC monocrystalline cells and a compact footprint, it's designed for long-lasting performance and backed by a 25-year power output warranty.
Built-in Bluetooth
Victron Energy Charge Controller
Victron Energy SmartSolar MPPT 100/30. A solar charger gathers energy from your solar panels and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximizes this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time.
Monitor Performance
Bluetooth Connectivity
Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.
Connecting the Kit
Easy to install and connect to your RV battery. Everything you need is in the kit.
GET THE LUMERA & VICTRON MARINE ADVANTAGE
Reliable 440W solar power — optimized for Canadian conditions with Lumera panels and trusted Victron technology built for RV and off-grid adventures.
Customers Also Viewed These Items
Battle Born BB10012H 100Ah 12V Lithium LiFePO4 Heated Deep Cycle Battery
- Regular price
- $1,199.00
- Regular price
-
$1,517.00 - Sale price
- $1,199.00
- Unit price
- per
Battle Born BBGC2H 100Ah 12V Lithium LiFePO4 Heated Deep Cycle Battery
- Regular price
- $1,249.99
- Regular price
-
$1,357.00 - Sale price
- $1,249.99
- Unit price
- per
Battle Born BBGC3H 270Ah 12V Lithium LiFePO4 Heated Deep Cycle Battery
- Regular price
- $2,998.00
- Regular price
-
$3,775.00 - Sale price
- $2,998.00
- Unit price
- per
Battle Born BBGC2H 100Ah 12V Heated Lithium LiFePO4 Deep Cycle Battery Bank - 2 Units
- Regular price
- $2,574.00
- Regular price
-
$2,900.00 - Sale price
- $2,574.00
- Unit price
- per
SOK 100Ah 12V LiFePO4 Deep Cycle Battery
- Regular price
- $817.00
- Regular price
-
$860.00 - Sale price
- $817.00
- Unit price
- per
SOK 100Ah 12V LiFePO4 Lithium Battery Bluetooth & Built-in heater
- Regular price
- $940.50
- Regular price
-
$990.00 - Sale price
- $940.50
- Unit price
- per
SOK 206Ah 12V LiFePO4 Lithium Battery Bluetooth & Built-in heater
- Regular price
- $1,420.25
- Regular price
-
$1,495.00 - Sale price
- $1,420.25
- Unit price
- per
Battle Born BB1250H 50Ah 12V Lithium LiFePO4 Heated Deep Cycle Battery
- Regular price
- $699.00
- Regular price
-
$998.00 - Sale price
- $699.00
- Unit price
- per
Victron 440W RV Solar Kit FAQ
This base kit includes:
- 2×220W Lumera Solar Panels (Made in Canada)
- Victron SmartSolar MPPT 100/30 Charge Controller with Bluetooth
- 1 x MC4 RV Cable Kit – 25 ft Red & 25 ft Black with MC4 connectors
- 2×Z Mounting Brackets (8 brackets total)
- 1 x Battery Cable Kit – Red & Black #8 wire with lugs
- 1 x MC4 Y Adapter Kit – for parallel panel connection
Customize your system with these available add-ons:
- Blue Sea 60A Breaker: Adds resettable circuit protection between controller and battery
- Victron Smart Battery Sense: Adds temperature and voltage sensing for optimal charging
- MC4 Y Adapter: Safely connects panels in parallel
- Victron SmartShunt: Monitors battery health, voltage, amps, state of charge, and more
- Lithium Batteries: 12V LiFePO4 from 50Ah to 330Ah available
- Victron Inverters: Add for AC output to run household appliances
Yes! The panels include pre-installed MC4 connectors, IP65 junction boxes, and corrosion-resistant aluminum frames—lightweight and easy to mount.
- Dimensions: 141 x 70 x 3 cm (55.5 x 27.6 x 1.2 in)
- Weight: 10.94 kg (24.1 lbs)
- Warranty: 25-year power output
Yes. The included Victron MPPT controller features built-in Bluetooth. Use the VictronConnect app to monitor system performance from your phone or tablet.
This kit supports any 12V battery. We recommend the Sasquatch Power E-Box 12100, a Canadian-assembled LiFePO4 battery designed for RV and off-grid performance.
Under normal conditions:
- Full Sun (5 hours): ~2.2 kWh/day
- Partly Cloudy: ~1.6–1.8 kWh/day
- Cloudy/Stormy: ~0.4–1.0 kWh/day
This RV kit is designed for mobile solar setups but also works great for trailers, cabins, or off-grid rooftops. All components are weather-resistant and built for durability.
