JA Solar JAM66D45 LB 620W Bifacial Double Glass Solar Panel Pallet (31 Units)
JA Solar JAM66D45 LB 620W Bifacial Double Glass Solar Panel Pallet (31 Units)

JA Solar JAM66D45 LB 620W Bifacial Double Glass Solar Panel Pallet (31 Units)


Limited-time deal
-5% $7,600.00
List Price: $7,995.00

Engineered by JA Solar — a Tier 1 global leader in photovoltaic innovation since 2005

CDN Solar
★★★★★ 4.9 Google Reviews
Features:

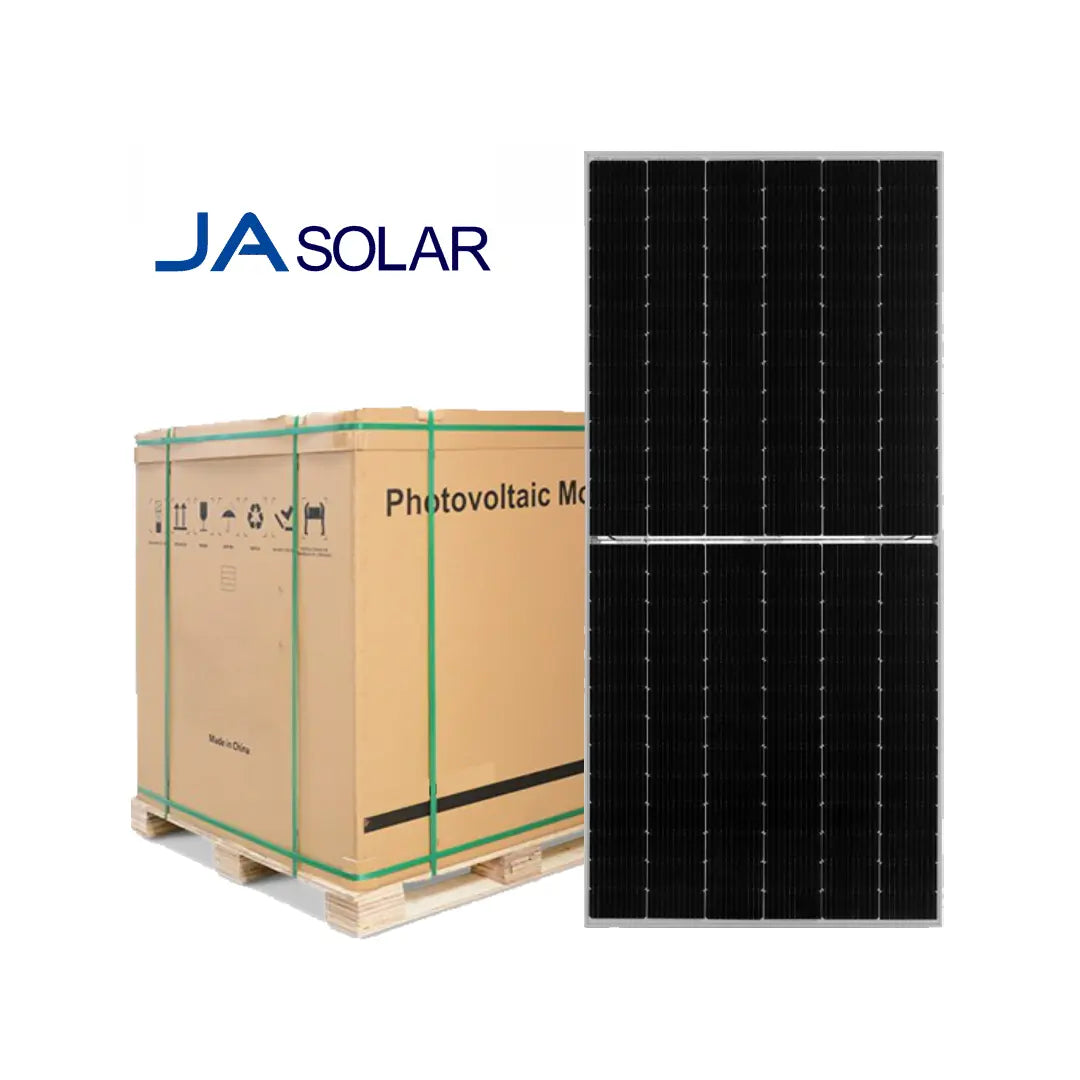

  • Pallet Quantity: 31 panels (≈19.2 kW total at 620W each)
  • Model: JAM66D45 LB
  • Appearance: Black Frame bifacial double glass module
  • Material: Monocrystalline Silicon (N-type)
  • Cell Type: Half-cut cells (bifacial, double glass)
  • Power Output (per panel): 620 W
  • Module Efficiency: up to 23.0%
  • Dimensions (L × W × H per panel): 238.2 × 113.4 × 3.5 cm (93.8 × 44.6 × 1.38 in)
  • Weight (per panel): 33.2 kg (73.2 lb)
  • Maximum System Voltage: 1500 V DC
  • Max Series Fuse Rating: 35 A
  • Connector Type: QC 4.10-351 / MC4-EVO2 compatible
  • Frame: Anodized aluminum alloy (silver frame)
  • Warranty: 12-year product & 30-year linear power output

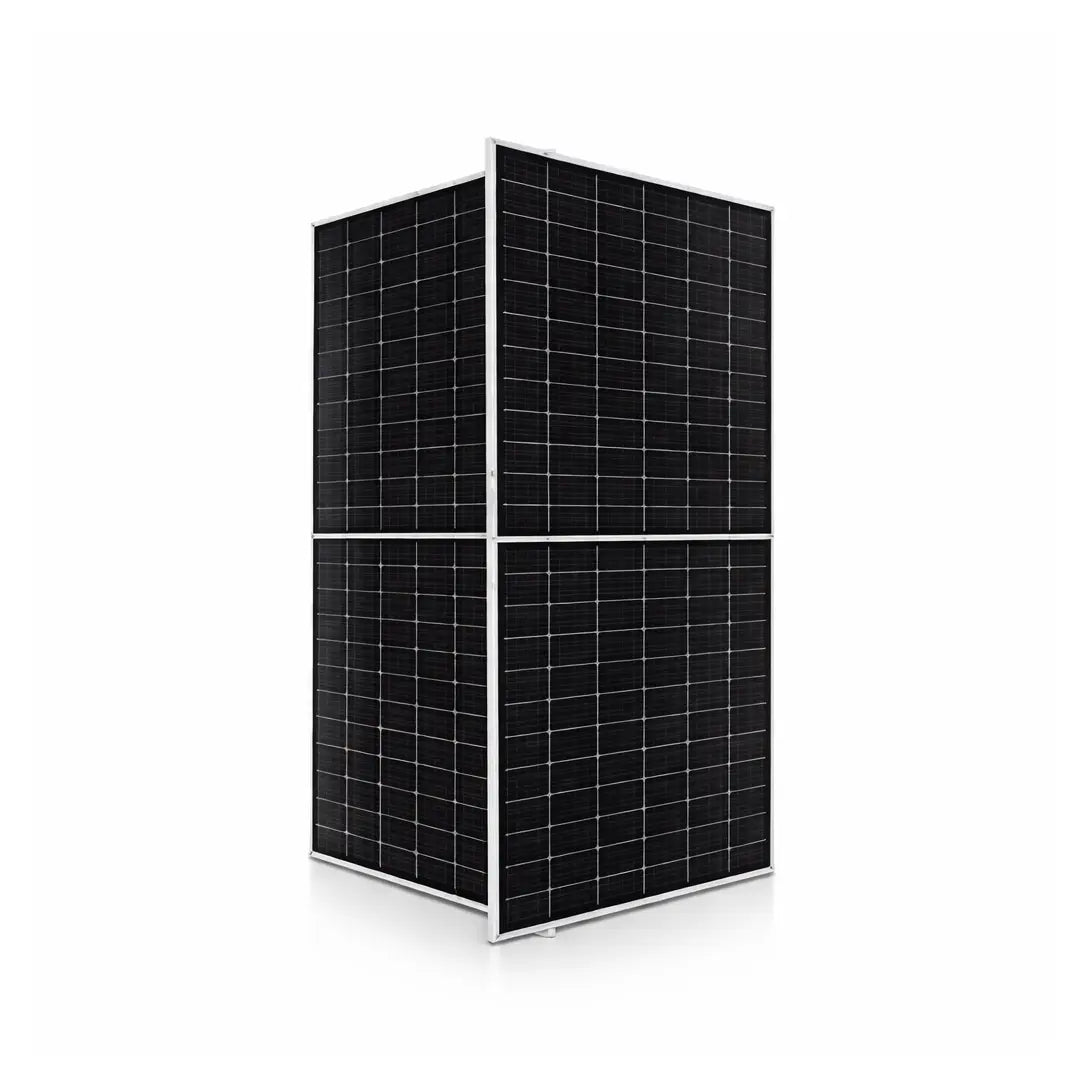

  • Note: Images may show both front and rear views of a bifacial panel.
SKU: PV1620-SKID
Product Type: Panels
$7,600.00
$7,995.00
$7,600.00
Subtotal: $7,600.00
Warehouse Pick-Up Available
Our pick-up schedule is Monday to Friday from 10AM - 4PM.
Secure Transaction
Canada Wide Shipping

Products online are in stockin in our warehouse

Orders generally ship out in 1-2 days.

JA Solar JAM66D45 LB 620W Bifacial Double Glass Solar Panel Pallet (31 Units)

JA Solar

JA Solar JAM66D45 LB 620W Bifacial Double Glass Solar Panel Pallet (31 Units)

$7,600.00
JA Solar JAM66D45 LB 620W Bifacial Double Glass Solar Panel Pallet (31 Units)
JA Solar JAM66D45 LB 620W Bifacial Double Glass Solar Panel Pallet (31 Units)

JA Solar

JA Solar JAM66D45 LB 620W Bifacial Double Glass Solar Panel Pallet (31 Units)

$7,600.00
About this item
About this item
x

JA Solar JAM66D45/LB 620W Bifacial Solar Panels – Pallet (31 Units)

Power your commercial and large-scale solar projects with a full pallet of 31 JA Solar JAM66D45/LB panels. These premium 620W bifacial double glass modules are built with high-efficiency n-type cells, delivering strong output, long-term reliability, and excellent performance in demanding environments. Ideal for installers, contractors, and bulk buyers, this pallet option offers efficient logistics and solid project value.

  • Includes 31 panels per pallet (approx. 19.22 kW total power at 620W each)
  • 620W rated maximum power per panel
  • Up to 23.0% module efficiency
  • Bifacial double glass design for enhanced durability and rear-side energy gain
  • n-type technology with low LID and strong long-term performance
  • Better low-irradiance response for reliable production in varied weather conditions
  • 12-year product warranty and 30-year linear power output warranty
  • Designed for demanding applications with high mechanical load resistance

Product Specifications (per panel)

Model: JAM66D45/LB
Power Output (Pmax): 620W
Efficiency: Up to 23.0%
Dimensions: 238.2 × 113.4 × 3.5 cm (93.8 × 44.6 × 1.38 in)
Weight: 33.2 kg (73.2 lbs)
Max System Voltage: 1500V DC
Max Series Fuse Rating: 35A
Connector Type: QC 4.10-351 / MC4-EVO2 compatible
Frame: Anodized aluminum alloy
Bifaciality: 80% ±10%
Front / Back Glass: 2.0mm / 2.0mm

Certifications

  • IEC 61215, IEC 61730, UL 61215, UL 61730
  • ISO 9001:2015 – Quality management systems
  • ISO 14001:2015 – Environmental management systems
  • ISO 45001:2018 – Occupational health and safety management systems
  • IEC 62941:2019 – PV module manufacturing quality system

Datasheet: JA Solar JAM66D45/LB Datasheet PDF

JA Solar — Built for Long-Term Performance

12-Year Product Warranty & 30-Year Linear Performance Warranty — Designed for high efficiency, reliable output, and long-term durability.
