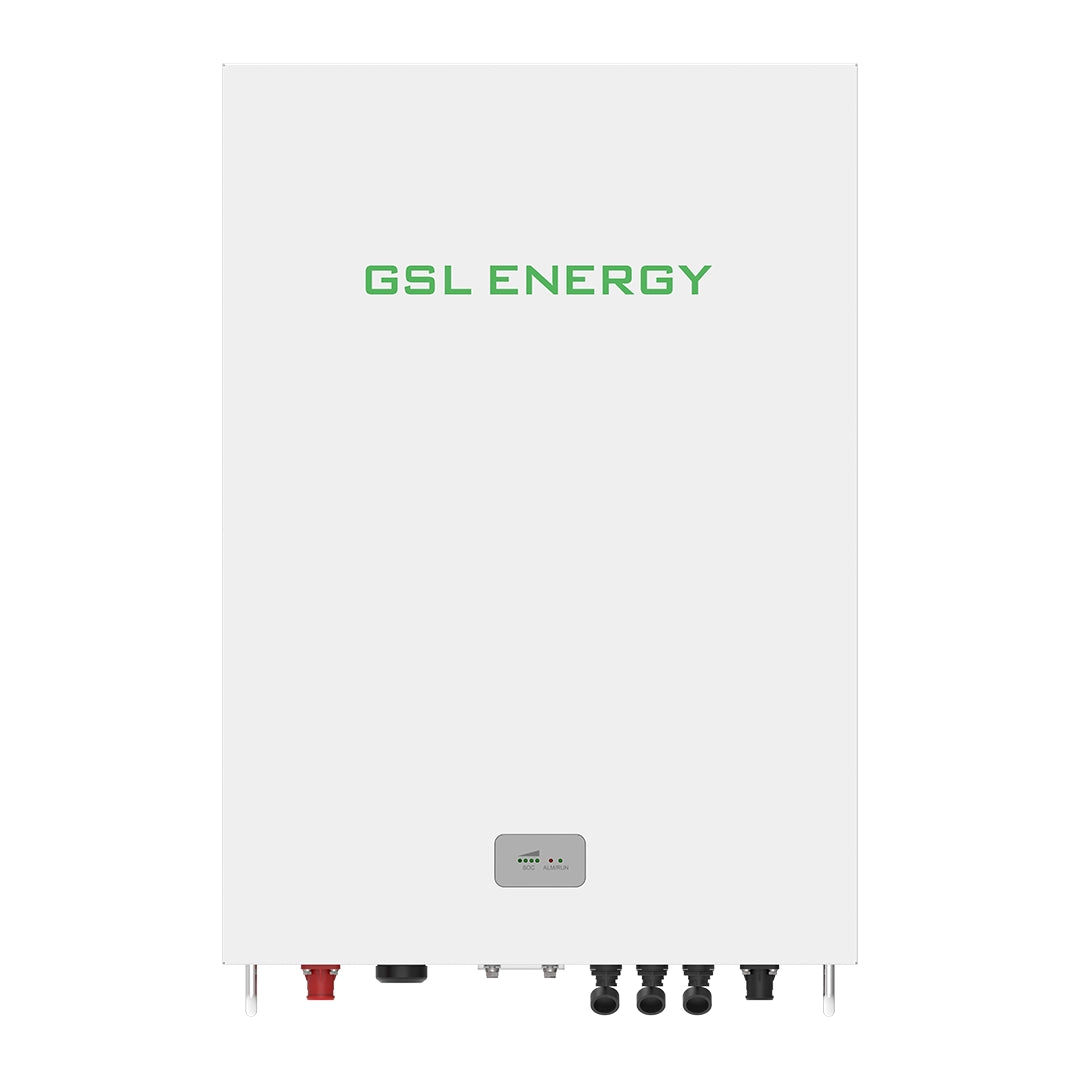

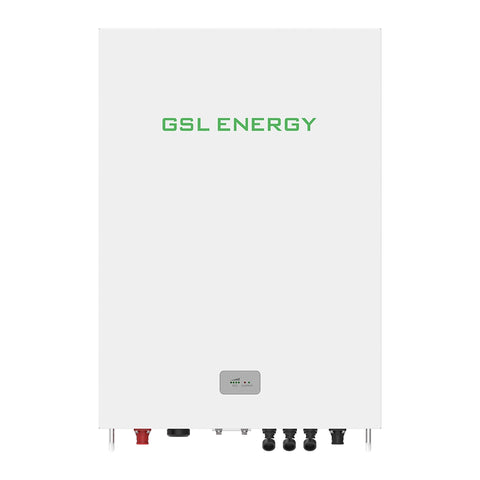

Front view of GSL Energy 51.2V 280Ah 14.34kWh LiFePO4 wall-mounted battery with LED indicators, IP65 rating.
Side view of GSL Energy 51.2V 280Ah LiFePO4 battery with handle and IP65-rated enclosure
GSL ENERGY 51.2V LiFePO4 Battery with labeled dimensions, waterproof IP65-rated for outdoor use, suitable for home solar storage systems

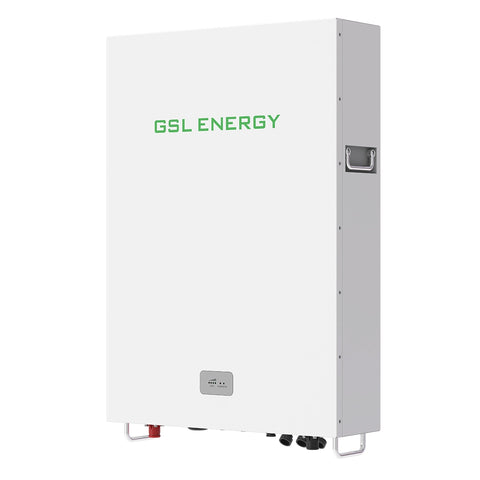

Angled front-right view of GSL Energy 14.34kWh LiFePO4 battery with mounting brackets

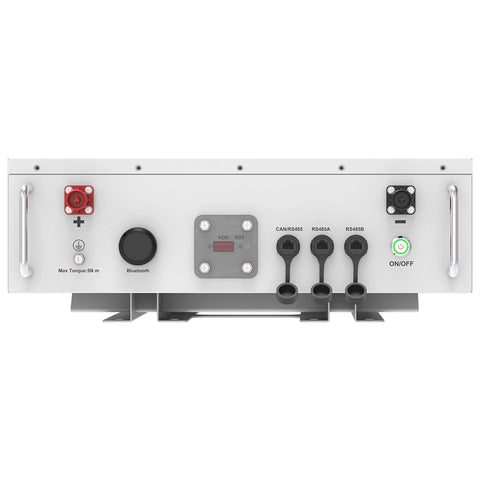

Close-up of connector panel on GSL Energy 51.2V 280Ah battery, with CAN/RS485 ports, ON/OFF button, Bluetooth
Front view of GSL Energy 51.2V 280Ah 14.34kWh LiFePO4 wall-mounted battery with LED indicators, IP65 rating.
Side view of GSL Energy 51.2V 280Ah LiFePO4 battery with handle and IP65-rated enclosure
GSL ENERGY 51.2V LiFePO4 Battery with labeled dimensions, waterproof IP65-rated for outdoor use, suitable for home solar storage systems
Angled front-right view of GSL Energy 14.34kWh LiFePO4 battery with mounting brackets
Close-up of connector panel on GSL Energy 51.2V 280Ah battery, with CAN/RS485 ports, ON/OFF button, Bluetooth
GSL Energy 14.34Kwh Battery

GSL Energy 14.34Kwh Battery


Limited-time deal
-40% $5,996.74
List Price: $9,994.70

Power Your Home to Energy Storage Freedom

CDN Solar
★★★★★ 4.9 Google Reviews
Features:
  • Brand: GSL
  • Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
  • Nominal Voltage: 51.2V
  • Capacity: 280Ah
  • Energy Storage: 14.34kWh
  • Charge/Discharge Current: Recommended 150A, Max 200A, Peak 100A (for 2 mins at 25℃)
  • Dimensions: 90 x 67.5 x 20 cm - 35.4 x 26.6 x 7.8 in
  • Weight: 128.5 kg (283 lbs)
  • Cycle Life: ≥8500 cycles at 80% DoD
  • Operating Temperature: Charge 0°C to 55°C, Discharge -20°C to 55°C
  • Waterproof Rating: IP65 - Protected against dust and low-pressure water jets
  • Heater: Designed to maintain performance in colder environments
SKU: GSL14.34KwhLiFeP04
Availability: In Stock
Product Type: Battery
$5,996.74
$9,994.70
$5,996.74
Subtotal: $5,996.74
Warehouse Pick-Up Available
Our pick-up schedule is Monday to Friday from 10AM - 4PM.
Secure Transaction
Canada Wide Shipping

Products online are in stockin in our warehouse

Orders generally ship out in 1-2 days.

Front view of GSL Energy 51.2V 280Ah 14.34kWh LiFePO4 wall-mounted battery with LED indicators, IP65 rating.

GSL Energy

GSL Energy 14.34Kwh Battery

$5,996.74
Front view of GSL Energy 51.2V 280Ah 14.34kWh LiFePO4 wall-mounted battery with LED indicators, IP65 rating.
Side view of GSL Energy 51.2V 280Ah LiFePO4 battery with handle and IP65-rated enclosure
GSL ENERGY 51.2V LiFePO4 Battery with labeled dimensions, waterproof IP65-rated for outdoor use, suitable for home solar storage systems
Angled front-right view of GSL Energy 14.34kWh LiFePO4 battery with mounting brackets
Close-up of connector panel on GSL Energy 51.2V 280Ah battery, with CAN/RS485 ports, ON/OFF button, Bluetooth
GSL Energy 14.34Kwh Battery

GSL Energy

GSL Energy 14.34Kwh Battery

$5,996.74
About this item
About this item
x

The GSL Energy LiFePO4 Battery 51.2V/280Ah offers robust, high-capacity energy storage, perfect for residential and commercial applications, especially in off-grid solar systems. This advanced battery combines durability with top-notch performance, designed to meet demanding energy requirements.

Why Choose LiFePO4?

Lithium Iron Phosphate (LiFePO4) batteries are known for their safety, efficiency, and extended life. With high energy efficiency and minimal maintenance, LiFePO4 is an ideal choice for off-grid solar, residential backup, and commercial applications.

Easy Installation and Monitoring

The GSL battery is designed for wall mounting, making installation simple and convenient. It also includes LED indicators to monitor battery status, ensuring easy troubleshooting and system monitoring.

  • Long Life and Safety: Vertical industry integration ensures over 8500 cycles with 80% Depth of Discharge (DoD). Built with safe Lithium Iron Phosphate battery cells.
  • Intelligent Power Management: Each battery has an independent Battery Management System (BMS) to manage power output smartly and effectively.
  • Modular Design: Allows end customers to choose capacity. Supports up to 229kWh with a single maximum module (14.34kWh) in a 16-unit parallel connection.
  • Plug-and-Play Installation: Designed for easy installation with minimal time and cost. The compact, fashionable design fits seamlessly into home environments.
  • Compatibility: Compatible with most available hybrid inverters.
  • Certified Safety: Holds multiple certifications, including UL9540A, UL1973, CB-IEC62619, CE-EMC, and UN38.3.

Read the Datasheet (PDF)

Read the User Manual (PDF)

Tech Specs
Tech Specs
x

VOLTAGE AND CAPACITY

  • Nominal Voltage: 51.2V
  • Operating Voltage: 46-56V
  • Nominal Capacity: 280Ah
  • Energy Storage: 14.34kWh
  • Usable Energy: 12.91kWh

CYCLE LIFE AND DURABILITY

  • Cycle Life: ≥8500 cycles at 80% Depth of Discharge (DoD)
  • Depth of Discharge: 80%
  • Life Cycle Power During Warranty Period: 64.80MWh at 80% EOL
  • Warranty: 15 years

DISCHARGE

  • Recommended Discharge Current: 150A
  • Maximum Discharge Current: 200A
  • Peak Discharge Current (2 minutes at 25°C): 100A

OPERATING CONDITIONS

  • Operating Temperature: Charge 0°C to 55°C, Discharge -20°C to 55°C
  • Storage Temperature: 0°C to 35°C
  • Humidity (non-condensing): 5% - 95%
  • Altitude: Up to 2000m
  • Protection Class: IP65 (Waterproof and dustproof, suitable for outdoor use)

CHARGE

  • Charge Voltage: 46-56V
  • Recommended Charge Current: 150A
  • Maximum Charge Current: 200A

PHYSICAL SPECIFICATIONS

  • Dimensions: 90 x 67.5 x 20 cm (35.4 x 26.6 x 7.8 in)
  • Weight: 128.5 kg (283 lbs)

COMPATIBILITY AND SAFETY CERTIFICATIONS

  • Compatibility: Compatible with most hybrid inverters
  • Safety Certifications: UL9540A, UL1973, CB-IEC62619, CE-EMC, UN38.3, MSDS

ADDITIONAL FEATURES

  • Independent Battery Management System (BMS) for intelligent power output management
  • 4 LED indicators for SOC (State of Charge): 25% to 100%
  • Master LED Indicator for working, alarming, and protecting
  • Plug-and-play installation to reduce setup time and cost
  • Modular design for scalability: Up to 16 units in parallel for 229kWh capacity

GSL Energy Battery Installations

Professional wall-mounted installation of GSL Energy LiFePO4 batteries, showcasing clean and organized configuration for energy storage
Close-up view of multiple GSL Energy LiFePO4 batteries installed together, highlighting scalability and modular design for high-capacity storage
Compact installation of GSL Energy batteries mounted on the wall, demonstrating space-saving design and easy integration for residential or commercial use.
Industrial-scale installation of GSL Energy batteries in a large configuration, ideal for high-capacity energy storage in commercial environments
Close-up view of multiple GSL Energy LiFePO4 batteries installed together, highlighting scalability and modular design for high-capacity storage
From the brand

GSL ENERGY LiFePO4 Battery for Home Solar Storage

  • The GSL ENERGY LiFePO4 Battery is designed for reliable home solar storage, making it an essential component for backup power and energy independence. This advanced lithium battery pairs seamlessly with solar systems, providing efficient, long-lasting energy storage that supports home power needs, even during outages.
  • Watch the video below to see how a complete home solar storage system, including GSL batteries, can optimize energy use.

GET THE GSL PEACE OF MIND

Power Your Home to Energy Storage Freedom.

Popular products based on this item

Silfab Solar Panel SIL-420 QD
$299.95
$358.55
$299.95
Silfab Solar Panels SIL-420 QD - Pallet of 26 Units
$7,480.20
$8,000.00
$7,480.20
REC - REC405TP5, Twinpeak 5 black series, 405W Solar Panel
$224.00
$324.00
$224.00
REC 405TP5 Twinpeak 5 Black Series Solar Panel - Pallet of 33 Units
$6,657.75
$9,240.00
$6,657.75
Jinko Solar 540W Solar Panel
$249.00
$353.22
$249.00
Jinko Solar 540W Solar Panel - Pallet of 27 Solar Panels
$5,998.00
$9,536.94
$5,998.00
SWE-230M-60 230W Solar Panels
$254.74
$286.66
$254.74
Canadian Solar HiKu6 CS6R-400 Watt Solar Panel
$320.00
$320.00

Customers Also Viewed These Items

Battle Born BB10012H 100Ah 12V Lithium LiFePO4 Heated Deep Cycle Battery
$1,099.00
$1,517.00
$1,099.00
Battle Born BBGC2H 100Ah 12V Lithium LiFePO4 Heated Deep Cycle Battery
$1,099.99
$1,357.00
$1,099.99
Battle Born BBGC2H 100Ah 12V Heated Lithium LiFePO4 Deep Cycle Battery Bank - 2 Units
$2,574.00
$2,900.00
$2,574.00
Pytes E-Box 48100R - 48V 100Ah Lithium LiFePO4 Solar Battery
$2,250.00
$2,850.00
$2,250.00
Battle Born BBGC3H 270Ah 12V Lithium LiFePO4 Heated Deep Cycle Battery
$2,998.00
$3,775.00
$2,998.00
Battle Born 270Ah 12V LiFePO4 Deep Cycle GC3 Battery
$3,468.27
$3,775.00
$3,468.27
Victron Energy Lithium SuperPack LiFePO4 12.8V 100Ah
$957.55
$1,070.67
$957.55
Victron Energy LiFePO4 Battery 12,8V/100Ah Smart
$1,034.72
$1,316.35
$1,034.72
GSL ENERGY Battery FAQ

FAQ Icon GSL ENERGY LiFePO4 Battery FAQ

The GSL ENERGY LiFePO4 Battery has a nominal capacity of 280Ah and an energy storage of 14.34kWh, with a usable energy capacity of 12.91kWh.

With a life cycle of ≥8500 cycles at 80% Depth of Discharge (DoD), the GSL ENERGY battery is built for long-term use, offering consistent performance and durability.

Yes, the GSL ENERGY battery is ideal for home backup power. It integrates seamlessly with hybrid inverters and provides reliable energy storage, making it perfect for use during outages or as part of an off-grid system.

Yes, the battery is compatible with most hybrid inverters available, allowing for flexible integration into different solar and storage setups.

The GSL ENERGY battery dimensions are 90 x 67.5 x 20 cm (35.4 x 26.6 x 7.8 inches), and it weighs 128.5 kg (283 lbs).

The GSL ENERGY battery operates in temperatures of 0°C to 55°C for charging and -20°C to 55°C for discharging, ensuring reliable performance in a variety of environments.

The battery is designed for minimal maintenance, featuring a self-contained BMS (Battery Management System) that manages output and performance, helping prolong its lifespan without frequent maintenance.

The GSL ENERGY battery is wall-mounted for easy installation. Its compact and modular design allows for a neat fit within most home environments.

The GSL ENERGY battery meets safety standards including UL9540A, UL1973, CB-IEC62619, CE-EMC, UN38.3, and MSDS, ensuring safe and reliable operation.

This battery has an IP65 rating, which protects it from dust and low-pressure water jets, making it suitable for various indoor and semi-outdoor environments.
