Limited-time deal
-15%
$163.55
List Price: $191.63
Energy. Anytime. Anywhere.
- Brand: Victron Energy
- DC Input Voltage: 48V
- DC Output Voltage: 12V
- Power Output: 240W
- Continuous Output Current: 20A
- Efficiency: 87%
- Protection: IP43-rated
- Weight: 1.3 kg (3 lb)
- Dimensions (HxWxD): 13 x 18.6 x 7 cm (5.1 x 7.3 x 2.8 inches)
SKU:
ORI481224110
Product Type:
Converter
- Regular price
- $163.55
- Regular price
-
$191.63 - Sale price
- $163.55
- Unit price
- per
Subtotal:
$163.55
Couldn't load pickup availability
Warehouse Pick-Up Available
Our pick-up schedule is Monday to Friday from 10AM - 4PM.
Secure Transaction
Canada Wide Shipping
Products online are in stockin in our warehouse
Orders generally ship out in 1-2 days.
About this item

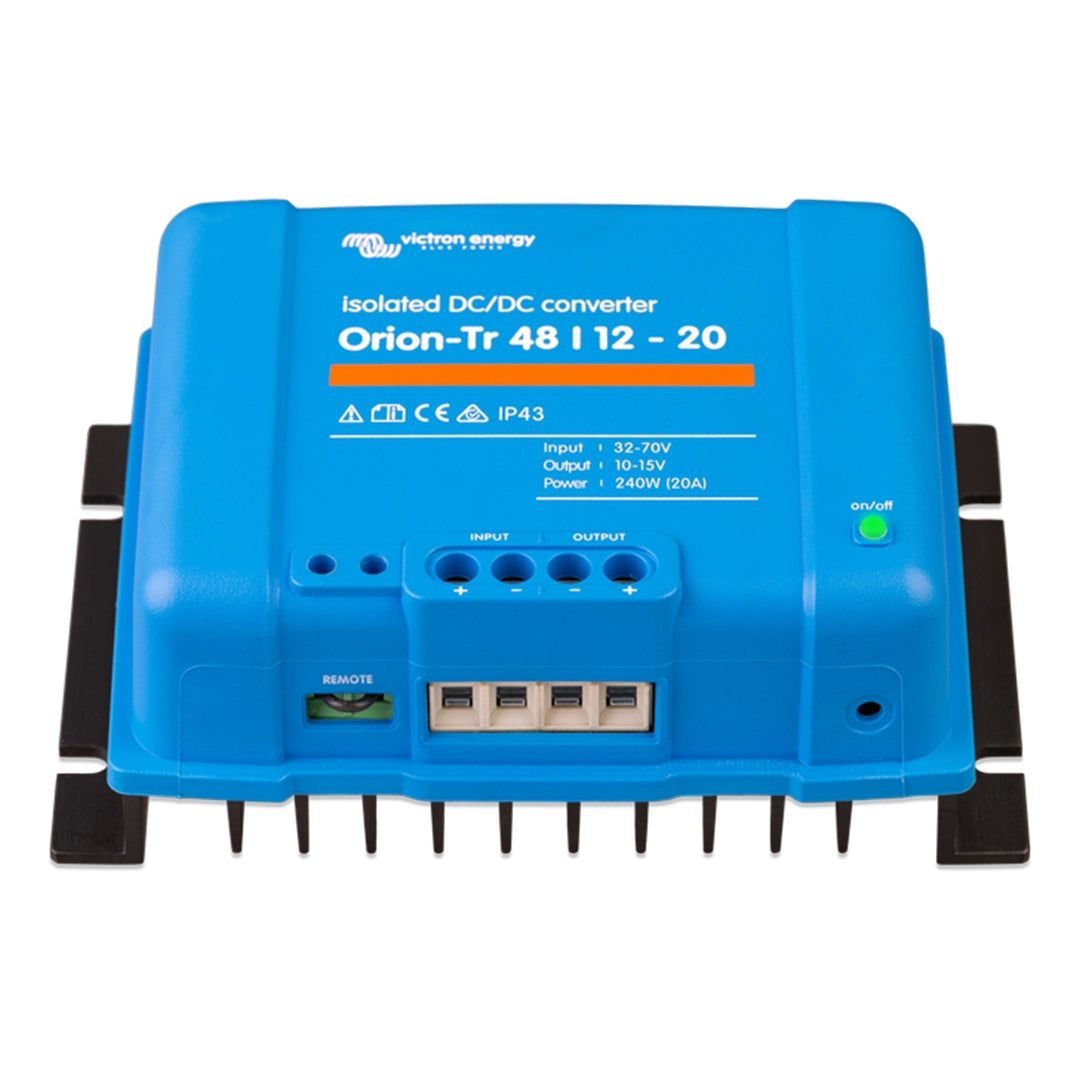

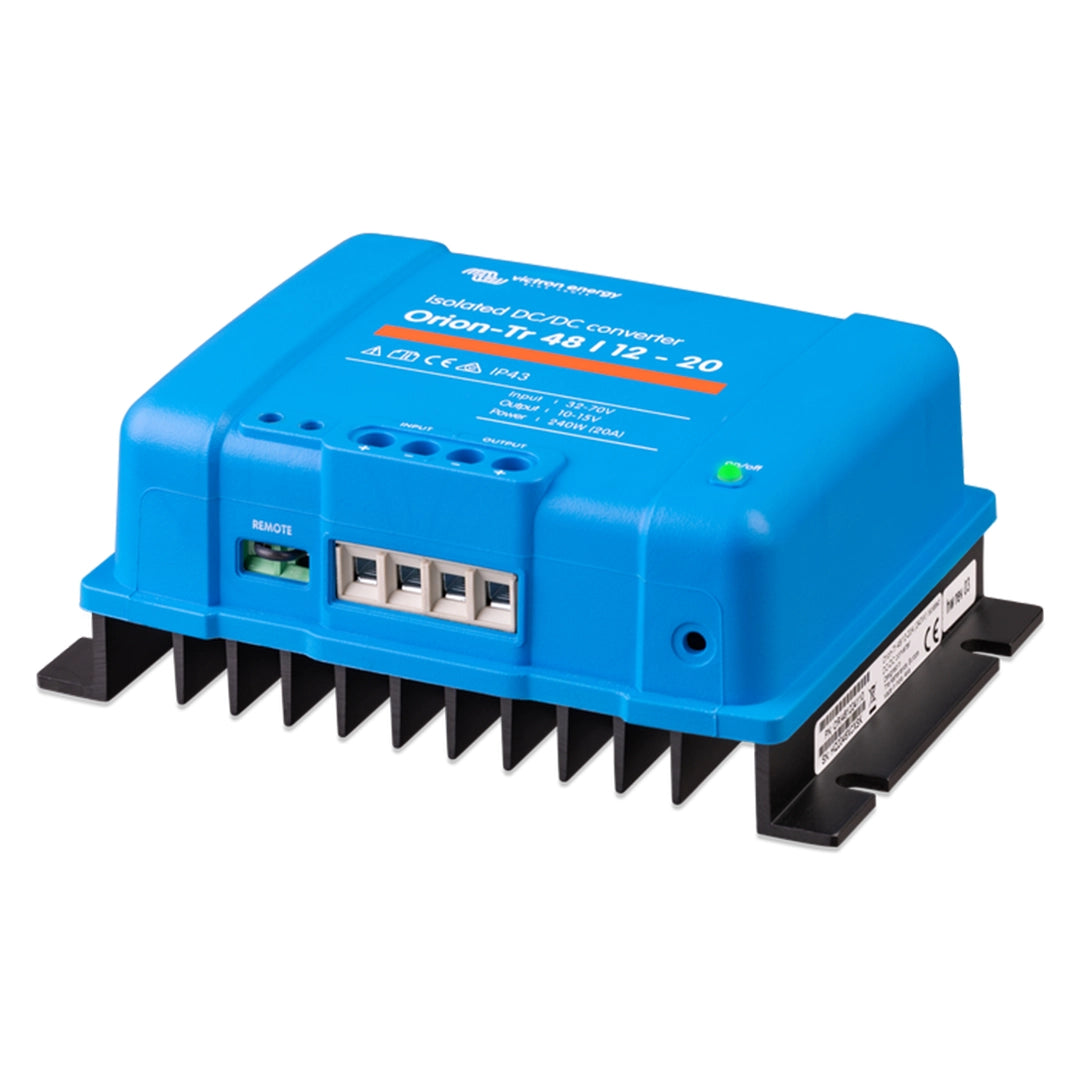

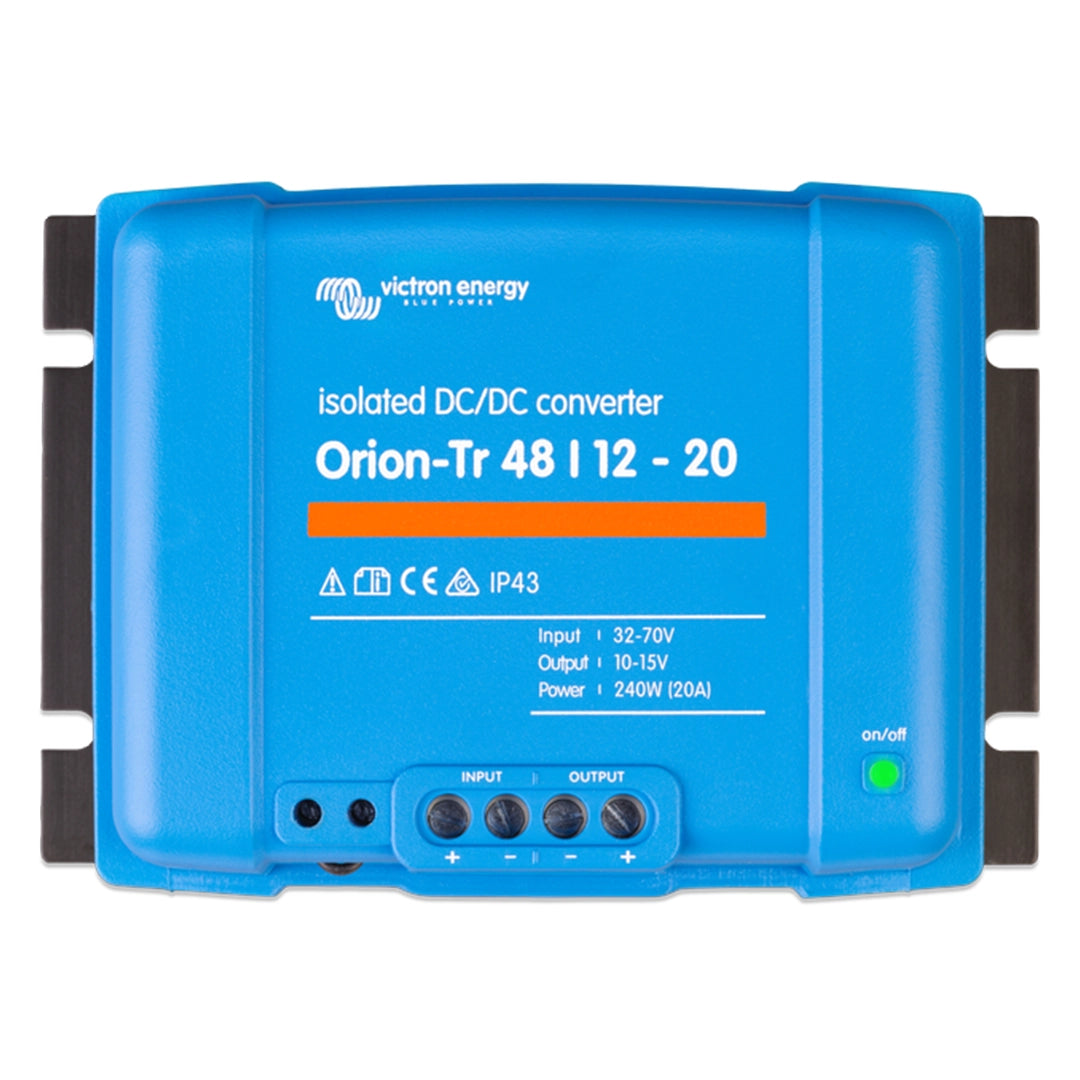

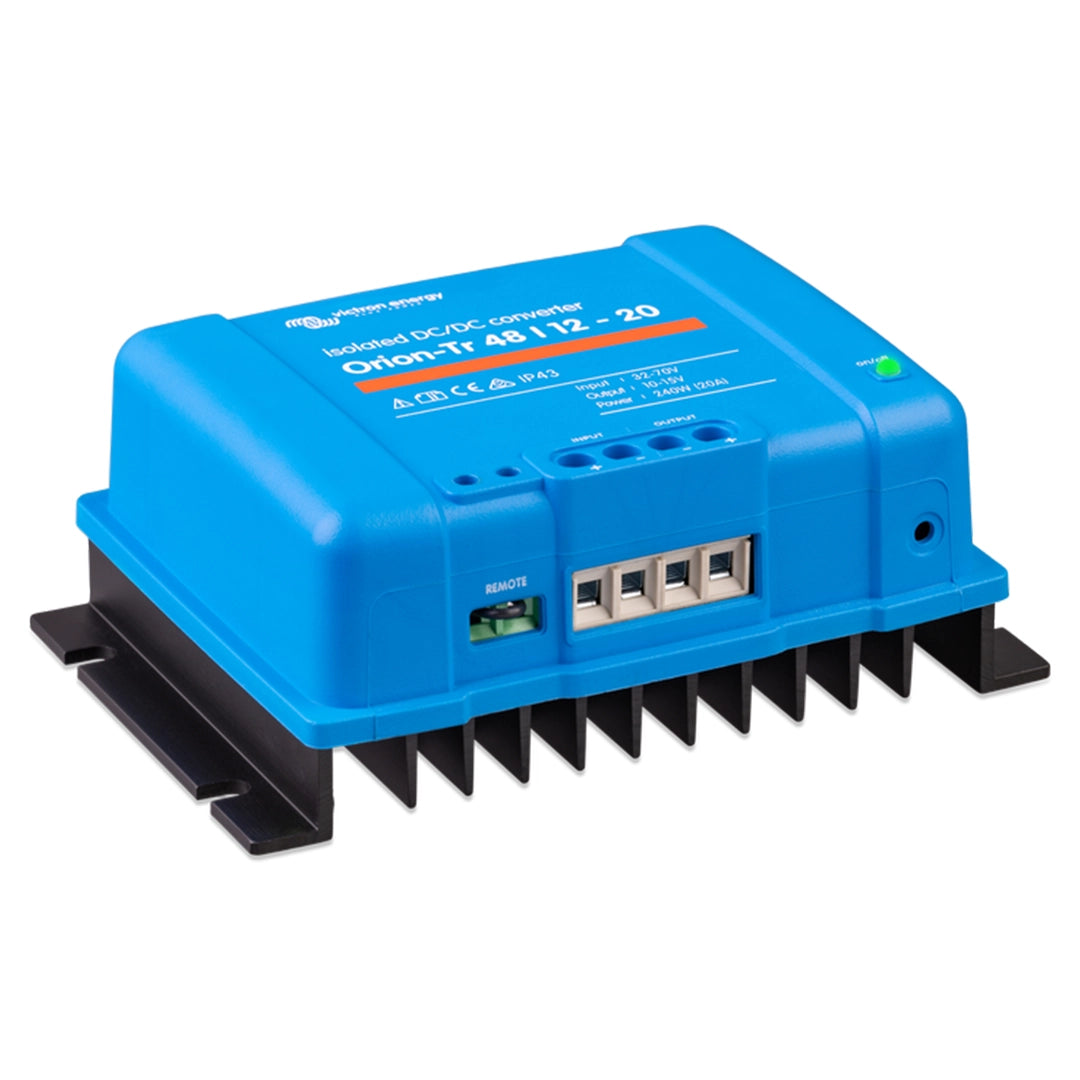

xOrion-Tr 48V to 12V 20A 240W Isolated DC-DC Converter
The Orion-Tr Smart 48V to 12V 20A DC-DC Converter from Victron Energy is a professional-grade, isolated power converter designed for dual battery systems in boats, vehicles, RVs, and off-grid applications.
SMART FEATURES
- Fully programmable and remotely controllable via Bluetooth.
- Engine shutdown detection prevents starter battery discharge.
- Remote on/off functionality for seamless operation.
- Adaptive 3-stage charge algorithm (Bulk – Absorption – Float) for efficient battery charging.
SAFETY & PROTECTION
- Short circuit proof and supports parallel connections to increase output current.
- High-temperature protection with automatic current reduction.
- IP43-rated protection when installed with screw terminals facing downward.
- Galvanic isolation between input, output, and case for enhanced safety.
COMPATIBILITY & INSTALLATION
- Compatible with both lead-acid and lithium (LiFePO4) batteries.
- Easy installation with screw terminals – no special tools required.
- Output voltage adjustable to match different battery systems.
TECHNICAL SPECIFICATIONS
- Input Voltage: 48V
- Output Voltage: 12V (adjustable)
- Continuous Output Power: 240W
- Continuous Output Current: 20A
- Efficiency: 87%
- Dimensions (H x W x L): 13 cm x 9 cm x 20.5 cm (5.1" x 3.5" x 8.1")
- Weight: 1.3 kg (3 lb)
- Victron Energy SKU: ORI481224110
- Warranty: 5 Years
APPLICATIONS
- RV and Camper Van Battery Systems
- Marine and Boat Dual Battery Setups
- Off-Grid Solar Systems
- Vehicles and Heavy-Duty Trucks
Documents:
Tech Specs
xOrion-Tr 48V to 12V 20A 240W Isolated DC-DC Converter
Engineered for professional dual battery systems in boats, vehicles, and off-grid setups, the Orion-Tr 48V to 12V converter provides consistent power delivery with advanced safety features and intelligent design.
Technical Specifications
| Specification | Details |
|---|---|
| Input Voltage Range | 32 – 70 V |
| Under Voltage Shutdown | 28 V |
| Under Voltage Restart | 30 V |
| Nominal Output Voltage | 12.2 V |
| Output Voltage Adjust Range | 10-15 V |
| Output Voltage Tolerance | ±0.2 V |
| Output Noise | 2 mV rms |
| Continuous Output Current at Nominal Output Voltage and 40 °C | 20 A |
| Maximum Output Current (10s) | 25 A |
| Short Circuit Output Current | 50 A |
| Continuous Output Power at 25°C | 280 W |
| Continuous Output Power at 40°C | 240 W |
| Efficiency | 87% |
| No Load Input Current | < 80 mA |
| Current Consumption | < 200uA when disabled via its remote port |
| Galvanic Isolation | 200 VDC between input, output and case |
| Operating Temperature Range | -20 to +55 °C (derate 3 % per °C above 40 °C) |
| Humidity | Max 95% non-condensing |
| DC Connection | Screw terminals |
| Maximum Cable Cross-Section | 16 mm² AWG6 |
| Weight | 1.3 kg (3 lb) |
| Dimensions (H × W × D) | 13 × 18.6 × 7 cm (5.1 × 7.3 × 2.8 inches) |
| Protection Rating | IP43 (When installed with the screw terminals oriented downwards) |
| Standards | EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5 |
POPULAR PRODUCT BASED ON THIS ITEM
Victron Energy LiFePO4 Battery 12,8V/50Ah Smart
- Regular price
- $690.81
- Regular price
-
$802.17 - Sale price
- $690.81
- Unit price
- per
Victron Energy LiFePO4 Battery 12,8V/100Ah Smart
- Regular price
- $1,131.42
- Regular price
-
$1,316.35 - Sale price
- $1,131.42
- Unit price
- per
Victron Energy LiFePO4 Battery 12,8V/160Ah Smart
- Regular price
- $1,238.82
- Regular price
-
$1,890.10 - Sale price
- $1,238.82
- Unit price
- per
Victron Energy LiFePO4 Battery 12,8V/200Ah Smart
- Regular price
- $1,724.59
- Regular price
-
$2,340.05 - Sale price
- $1,724.59
- Unit price
- per
Victron Energy LiFePO4 Battery 25.6V 200Ah Smart
- Regular price
- $3,295.39
- Regular price
-
$4,156.59 - Sale price
- $3,295.39
- Unit price
- per
Victron Energy LiFePO4 Battery 12,8V/330Ah Smart
- Regular price
- $2,699.78
- Regular price
-
$4,050.82 - Sale price
- $2,699.78
- Unit price
- per
Victron Energy Lithium SuperPack LiFePO4 12.8V 100Ah
- Regular price
- $811.64
- Regular price
-
$1,070.67 - Sale price
- $811.64
- Unit price
- per
Victron Energy LiFePO4 Battery 12,8V/200Ah NG
- Regular price
- $1,724.59
- Regular price
-
$2,003.45 - Sale price
- $1,724.59
- Unit price
- per
GET THE VICTRON PEACE OF MIND
Energy. Anytime. Anywhere. With a 5 Year Warranty.
What is a DC-DC Converter?
A DC-DC converter is an essential power electronics device that takes a direct current (DC) input voltage and provides a regulated DC output voltage. The output voltage can be either higher or lower than the input voltage, depending on the system’s needs.
Why Use a DC-DC Converter?
- Provides a stable and constant power supply to sensitive electronics and devices.
- Allows you to power devices with different voltage requirements from the same system. For example, run a 12V pump on a 48V system safely and efficiently.
- Supports dual battery setups in RVs, marine systems, off-grid solar, and commercial vehicles.
- Equipped with safety protections like short circuit resistance, under-voltage shutdown, and thermal protection.
Whether you’re upgrading your off-grid system, boat, RV, or commercial setup — a DC-DC converter ensures reliable and efficient power management across multiple voltage levels.
Monitoring, configuration and control
Battery Monitoring Made Easy with VictronConnect app
- • Solar charger
- • Battery charger
- • Battery status
- • Battery protection
- • Battery monitoring via local display and via the VictronConnect app
Monitor Performance
Bluetooth Connectivity
Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.
GET THE VICTRON PEACE OF MIND
Energy. Anytime. Anywhere. With a 5 Year Warranty.
CUSTOMERS ALSO VIEWED THESE ITEMS
Royer 24V 170Ah Lithium LiFePO4 Heated Smart Battery
- Regular price
- $2,500.00
- Regular price
-
$3,000.00 - Sale price
- $2,500.00
- Unit price
- per
Royer 24V 320Ah Lithium LiFePO4 Heated Smart Battery
- Regular price
- $4,300.00
- Regular price
-
$4,600.00 - Sale price
- $4,300.00
- Unit price
- per
Battle Born BB10012H 100Ah 12V Lithium LiFePO4 Heated Deep Cycle Battery
- Regular price
- $1,199.00
- Regular price
-
$1,517.00 - Sale price
- $1,199.00
- Unit price
- per
Battle Born BBGC2H 100Ah 12V Lithium LiFePO4 Heated Deep Cycle Battery
- Regular price
- $1,249.99
- Regular price
-
$1,357.00 - Sale price
- $1,249.99
- Unit price
- per
Battle Born BBGC2H 100Ah 12V Heated Lithium LiFePO4 Deep Cycle Battery Bank - 2 Units
- Regular price
- $2,574.00
- Regular price
-
$2,900.00 - Sale price
- $2,574.00
- Unit price
- per
Battle Born BBGC3H 270Ah 12V Lithium LiFePO4 Heated Deep Cycle Battery
- Regular price
- $2,998.00
- Regular price
-
$3,775.00 - Sale price
- $2,998.00
- Unit price
- per
Pytes E-Box 48100R - 48V 100Ah Lithium LiFePO4 Solar Battery
- Regular price
- $2,250.00
- Regular price
-
$2,850.00 - Sale price
- $2,250.00
- Unit price
- per
Victron Energy Lithium SuperPack LiFePO4 12.8V 100Ah
- Regular price
- $811.64
- Regular price
-
$1,070.67 - Sale price
- $811.64
- Unit price
- per
Victron Orion-Tr 48V to 12V DC-DC Converter FAQ
A DC-DC converter changes one DC voltage level to another, either stepping up or stepping down voltage, and provides a regulated, stable output to run electronic devices or charge batteries.
You need a DC-DC converter if your system requires stable voltage conversion, especially when running 12V devices from a 24V or 48V power source, or for dual battery setups in RVs, boats, and off-grid applications.
Victron Orion DC-DC converters are designed to provide regulated DC power to DC loads and auxiliary battery banks in vehicles, boats, and off-grid systems. They are programmable, temperature-protected, and short-circuit proof.
Yes. A DC-DC charger is highly recommended for lithium batteries, especially if your vehicle uses a smart alternator or if you're charging AGM or lithium auxiliary batteries from the vehicle alternator.
Yes. The Orion-Tr DC-DC converter has an adjustable output voltage range of 10-15 V using a built-in potentiometer. Always adjust the voltage before connecting batteries or paralleling units.
The Orion-Tr is short circuit proof, high-temperature protected (reducing current at high temperatures), and offers galvanic isolation between input and output for safe and reliable operation.
Yes, the Orion-Tr is designed for professional use in RVs, camper vans, marine dual-battery setups, off-grid solar systems, and heavy-duty trucks.
Yes. Multiple units can be connected in parallel to increase output current capacity. Be sure to set the output voltage before parallel installation.
The input voltage range is from 32 to 70 V, designed for use in 48V systems.
Although the output is adjustable, Victron recommends using the Orion-Tr Smart DC-DC Charger for dedicated battery charging, as it offers advanced charging algorithms.
The maximum continuous power output at 40°C is 240W.
Yes. The output voltage can be adjusted between 10 to 15 V using the built-in adjustment screw.
Yes, multiple units can be connected in parallel to increase total output current. Each unit should be configured correctly before parallel installation.
